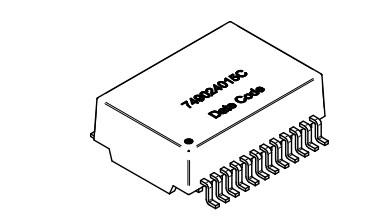

749024015C 1000Base-T SMT Transformer Industrial Grade
749024015C 1000Base-T SMT Transformer Industrial Grade
Specifications
Brand Name :
LINK-PP
Model Number :
749024015C
Certification :
RoHS Compliant, REACH Compliant
Place of Origin :
Guangdong, China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
600K/Month
Delivery Time :
2 weeks
Packaging Details :
Tape & Reel (TR)
Part Number :
749024015C
Number of Ports :
1
Pins :
24
PoE :
non-PoE
Data Rate :
10/100/1000BASE-T
Inductance :
350µH
Isolation Test Voltage :
1500V（RMS）
Mount :
SMT
Description

Specifications of 749024015C SMT Transformer:​

Parameter Value
Part Number 749024015C
Product Series LAN Transformer
Status Active
Data Rate 10/100/1000BASE-T
Number of Ports 1
PoE Support Non-PoE
Improved CMRR No
Inductance 350 µH
Turns Ratio (Primary: Secondary) 1:1
Isolation Test Voltage 1500 V (RMS)
Mounting Type Surface Mount (SMT)
Operating Temperature Range -40°C to +105°C
Length 17.6 mm
Width 16.0 mm
Height 6.0 mm
Compliance RoHS Compliant

Applications of 749024015C 1000Base-T Ethernet Transformer:

  1. Industrial Ethernet Systems: Compatible with protocols like EtherCAT and Profinet, making it suitable for factory automation and process control networks.​
  2. Networking Equipment: Ideal for integration into routers, switches, and hubs, supporting high-speed data transmission.​
  3. IoT Devices: Applicable in Internet of Things (IoT) applications, including smart sensors and connected devices requiring reliable Ethernet connectivity.​
  4. Surveillance Systems: Suitable for IP cameras and related security equipment that utilize Gigabit Ethernet for data transmission.​
  5. Robotics and Automation: Can be employed in robotic systems and automation equipment that require robust Ethernet communication.​
  6. Sensor Networks: Applicable in networks of sensors where consistent and high-speed data transfer is essential.​
  7. Compatibility with Ethernet ICs: Designed to comply with most Ethernet application ICs from manufacturers such as Microchip, Texas Instruments, Broadcom, and Linear Technology.
