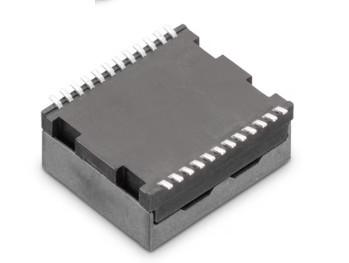

749050017 749050018 LAN Transformer For 10G HDBaseT Applications
749050017 749050018 LAN Transformer For 10G HDBaseT Applications
Specifications
Brand Name :
LINK-PP
Model Number :
749050017 / 749050018
Certification :
RoHS, REACH
Place of Origin :
GuangDong, China
MOQ :
100pcs
Price :
$2.2
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
6000K-PCS/Month
Delivery Time :
Ships within 15 days
Packaging Details :
Packaging Quantity : 20 Packaging Method : Box & Tray, Tray
Transformer Type :
High-speed LAN Transformer
Data rate :
10G Base-T
PoE :
non-PoE
Operating Temperature :
-40°C To +85°C [ -40 – 185 °F ]
Improved CMRR :
NO
Mount :
SMT
Description

Specifications of 749050017 / 749050018 10G LAN Transformer:

Part Number 749050017 749050018
Product Series 10G LAN Transformer 10G LAN Transformer
Status Active Active
Data Rate 10G Base-T 10G Base-T
Number of Ports 1 1
PoE Support Non-PoE Non-PoE
Turns Ratio 1:1 ±2% @ 100kHz / 100mV

1:1 ±2% @ 100kHz / 100mV
Inductance (OCL) 120 µH @ 100kHz / 100mV, 8mA DC Bias 120 µH @ 100kHz / 100mV, 8mA DC Bias
Insertion Loss(IL) ≤ -3.0 dB @ 100 kHz – 1 MHz ≤ -3.0 dB @ 100 kHz – 1 MHz
Insertion Loss(IL) ≤ -1.0 dB @ 1 MHz – 250 MHz ≤ -1.0 dB@ 1 MHz – 250 MHz
Insertion Loss(IL) ≤ -3.0 dB @ 250 MHz – 500 MHz ≤ -3.0 dB @ 250 MHz – 500 MHz
Return Loss (RL) ≥ -18 dB @ 1 – 40 MHz ≥ -18 dB @ 1 – 40 MHz
Return Loss (RL) ≥ -16 dB @ 100 MHz ≥ -16 dB @ 100 MHz
Return Loss (RL) ≥ -13 dB @ 200 MHz ≥ -13 dB @ 200 MHz
Return Loss (RL) ≥ -11.2 dB @ 250 MHz ≥ -11.2 dB @ 250 MHz
Return Loss (RL) ≥ -10 dB @ 400 MHz ≥ -10 dB @ 400 MHz
Return Loss (RL) ≥ -8 dB @ 500 MHz ≥ -8 dB @ 500 MHz
Common to Differential Mode Rejection (CDMR) ≥ -35 dB@ 1 MHz – 100 MHz ≥ -35 dB@ 1 MHz – 100 MHz
Common to Differential Mode Rejection (CDMR) ≥ -30 dB @ 100 MHz – 250 MHz ≥ -30 dB @ 100 MHz – 300 MHz
Common to Differential Mode Rejection (CDMR) ≥ -25 dB @ 250 MHz – 500 MHz ≥ -25 dB @ 300 MHz – 500 MHz
Common Mode Rejection Ratio (CMRR) ≥ -35 dB@ 1 MHz – 100 MHz ≥ -35 dB@ 1 MHz – 100 MHz
Common Mode Rejection Ratio (CMRR) ≥ -30 dB @ 100 MHz – 300 MHz ≥ -30 dB @ 100 MHz – 250 MHz
Common Mode Rejection Ratio (CMRR) ≥ -25 dB @ 300 MHz – 500 MHz ≥ -25 dB @ 250 MHz – 500 MHz
Crosstalk

≤ -30 dB (100MHz–500MHz)

≤ -40 dB (100MHz–300MHz)

≤ -30 dB (100MHz–500MHz)
Isolation Voltage 1500 Vrms 1500 Vrms
Operating Temperature -40°C to +85°C -40°C to +85°C
Mounting Type Surface Mount (SMT) Surface Mount (SMT)
Dimensions (L × W × H) 13.97 mm × 15.11 mm × 6.60 mm 13.97 mm × 15.11 mm × 6.60 mm
Compliance IEEE 802.3an, RoHS Compliant IEEE 802.3an, RoHS Compliant

749050017 Datasheet-Schematics:

749050017 749050018 LAN Transformer For 10G HDBaseT Applications

749050018 Datasheet-Schematics:

749050017 749050018 LAN Transformer For 10G HDBaseT Applications
