XF-VT-102 / IH-102-BDL High Frequency PoE Transformer Modules LP82441ANL
XF-VT-102 / IH-102-BDL High Frequency PoE Transformer Modules LP82441ANL
Specifications
Brand Name :
LINK-PP
Model Number :
XF-VT-102 / IH-102-BDL
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
400/2000/10K/25K
Price :
$0.06-$3.2
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3KK/Month
Delivery Time :
Stock
Packaging Details :
T&R
part Number :
XF-VT-102 / IH-102-BDL
Original Munafactuer :
LINK-PP
Project Application :
NETWORK INTERFACE CARD
Specification :
LP82441ANL
Apllication :
1000M POE
Archivi Disponibil :
PDF/3D/ISG/Stp/Step/Datasheet
Description
XF-VT-102 / IH-102-BDL High Frequency PoE Transformer Modules LP82441ANL


Competitor Cross Reference

Trader
Part Number

Manufacturer

Part Number

 Manufacturer Description
XF-VT-102 / IH-102-BDL LP82441ANL LINK-PP

POE Transformer 1000 Base Tx VolP Modules

Series Transformer Type Applications Turn Radio
Transformer Isolation and Data Interface 10/100/1000 Base-T 1:1
Mounting Type Size / Dimension Height - Seated (Max) Unit Price
Surface Mount 15.10mm x 10.0mm 4.0mm $0.38-$0.68 For mass Production

Features

  • XF-VT-102 / IH-102-BDL => LP82441ANL【Mass Production Model】
  • RoHS Compliant
  • RoHS peak solder rating 260 ℃/ 3~5 Sec
  • Designed to meet IR requirement
  • Specifications @ 25 ℃
  • Operating temp. :-40 ℃ ~ +85 ℃
  • OCL :350uH Min @100Khz , 100mV 8mA

  • Helps manufacturers reach their goals of cost reduction

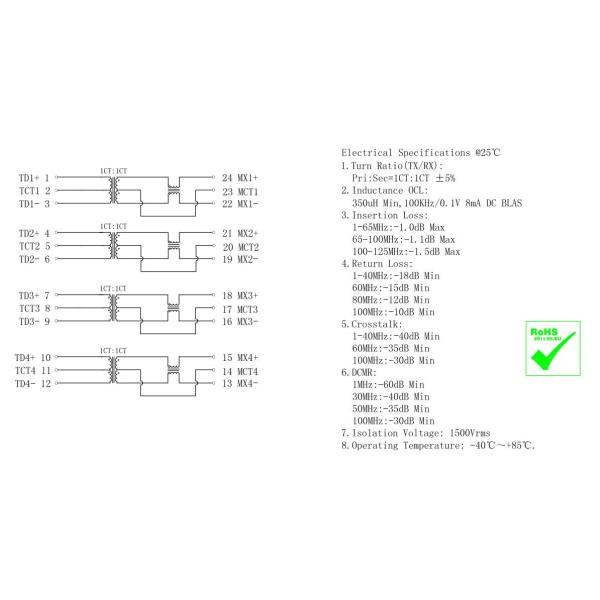

Specification

XF-VT-102 / IH-102-BDL High Frequency PoE Transformer Modules LP82441ANL

Wish To Be Your Best Supplier and Supporter In Your Networking Solutions
------------- LINK-PP Sales & Support Team

----------------------Welcome To Your Enquiry. We Are Available, Always and Sincerely-------------------
