POE21PR-33ED Ferrite Transformer Flyback and Forward Transformers
POE21PR-33ED Ferrite Transformer Flyback and Forward Transformers
Specifications
Brand Name :
LINK-PP
Model Number :
POE21PR-33ED
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
400/2000/10K/25K
Price :
$0.06-$3.2
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3KK/Month
Delivery Time :
Stock
Packaging Details :
T&R
Specifications :
POE21PR-33ED
Power :
21W
Inductance at 0A :
21
Tolerance :
10%
Isat :
6.2A
Leakage Inductance max :
0.3µH
Isolation Voltage :
3.3 V, 3.2 A
Secondary Output :
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
Lifecycle :
More than 20Years
Description
POE21PR-33ED Flyback & Forward Transformers
Specifications Power (W) Inductance at 0A(µH) Tolerance(%) Isat(A) DCR max (mΩ)
Pri Sec1 Sec2 Aux
POE21PR-33ED 21 21 10 6.2 31 10 10 80

Leakage
Inductance
max (µH)		 Turns Ratio Isolation
Voltage (Vrms)		 Secondary
Output (V, A)
Pri : Sec1 : Sec2: Aux
0.3 1 : 0.231 : 0.231 : 0.692 1500 3.3 V, 3.2 A

• Flyback and Forward transformers for PoE up to 72 Watts
• Operates with 9 – 57 V input (POE21, 22, 24, 33, 35 and 38)
• Operates with 33 – 57 V input (POE23, 30, 36, 53, 70, and 72)
• One minute isolation (hipot): 1500Vrms, from pri and aux to each
sec; 500Vrms from pri to aux; 500Vrms between two secondary
• Dual outputs can be configured as one single higher power output
• AEC-Q200 Grade 1 (–40°C to +125°C)

Core material Ferrite

Environment RoHS compliant, halogen free

Terminations Tin-silver-copper over tin over nickel over phos bronze

Weight 7.1 – 7.9 g

Ambient temperature –40°C to +125°C

Maximum part temperature +165°C (Ambient + temp rise)

Storage temperature Component: –40°C to +165°C

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C / 85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

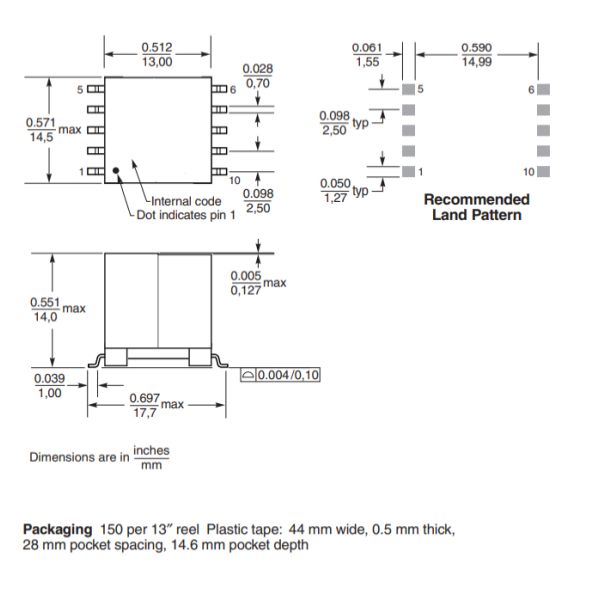

1. Packaging: D = 13″ machine-ready reel. EIA-481 embossed plastic
tape (150 parts per full reel). Quantities less than
full reel available: in tape (not machine ready) or
with leader and trailer ($25 charge).
2. Inductance is for the primary, measured at 200 kHz, 0.1 Vrms, 0 Adc.
3. Leakage inductance measured between pins 1 and 3 with all other
pins shorted.
4. Output is for each secondary. Output of the aux winding is 10 V, 50 mA.
5. Based on 280 mT at 25°C and number of turns on pins 1-3.
6. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

POE21PR-33ED Ferrite Transformer Flyback and Forward Transformers

POE21PR-33ED Ferrite Transformer Flyback and Forward Transformers

POE21PR-33ED Ferrite Transformer Flyback and Forward TransformersPOE21PR-33ED Ferrite Transformer Flyback and Forward TransformersPOE21PR-33ED Ferrite Transformer Flyback and Forward Transformers​POE21PR-33ED Ferrite Transformer Flyback and Forward Transformers

POE21PR-33ED Flyback & Forward Transformers
