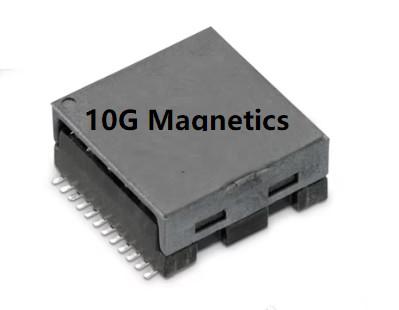

10G Magnetics 749052050 24PINs Power Over Ethernet Transformer
10G Magnetics 749052050 24PINs Power Over Ethernet Transformer
Specifications
Brand Name :
LINK-PP
Model Number :
749052050
Certification :
RoHS, REACH
Place of Origin :
GuangDong, China
MOQ :
100pcs
Price :
Negotiable & Discount
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
6000K-PCS/Month
Delivery Time :
Ships within 15 days
Packaging Details :
Packaging Quantity : 20 Packaging Method : Box & Tray, Tray
Status :
Active
Product Series :
10G LAN Transformer
PINs :
24
PoE Support :
PoE+
Current Rating :
up to 1A
Shielding :
Unshielded
Description

749052050 PoE Specifications:

  • Designed to support applications up to 50W @ 57VDC when using two channels
  • Designed to support applications up to 100W @ 57VDC when using four channels

Specifications of 749052050 10G Transformer:

Parameter Value
Part Number 749052050
Series High Speed LAN Magnetics
Size / Dimension 0.720" L x 0.579" W (18.29mm x 14.70mm)
Height - Seated (Max) 0.346" (8.80mm)
Data Rate 10G Base-T
PoE Support PoE+ (up to 1 A)
Turns Ratio (Primary: Secondary) 1:1 ±2%
Inductance (OCL) 180 µH (min)
Isolation Voltage 1.5KV RMS
Mounting Type Surface Mount (SMT)
Operating Temperature Range 0°C ~ 70°C
RoHS YES
Compliance IEEE 802.3an, IEEE 802.3at, RoHS

749052050 Datasheet-Soldering spec. :

10G Magnetics 749052050 24PINs Power Over Ethernet Transformer

749052050 Datasheet-Schematics:

10G Magnetics 749052050 24PINs Power Over Ethernet Transformer
