ARJ11B-MDSAO-LU2 Shielded 10/100 Base-T Single Port RJ45 Female Connector
ARJ11B-MDSAO-LU2 Shielded 10/100 Base-T Single Port RJ45 Female Connector
ARJ11B-MDSAO-LU2 Shielded 10/100 Base-T Single Port RJ45 Female Connector
ARJ11B-MDSAO-LU2 Shielded 10/100 Base-T Single Port RJ45 Female Connector
Specifications
Place of Origin :
China
Brand Name :
LINK-PP
Certification :
UL,ROHS,Reach,ISO
Model Number :
ARJ11B-MDSAO-LU2
MOQ :
50/500/1000/25K
Price :
$0.05-$1.28
Packaging Details :
Tray, Tape & Reel
Delivery Time :
Stock
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3000K/month
Product Name :
ARJ11B-MDSAO-LU2
speed :
10/100 BASE-T
Port :
1X1 ,custom
Business type :
RJ45 Manufacturer
EMI finger :
no
Usage :
for networking and communication equipments
Alternate rf :
ARJ11B-MDSAO-LU2 => LPJxxxNL
Description
ARJ11B-MDSAO-LU2 Shielded 10/100 Base-T Single Port RJ45 Female Connector

Specifications ARJ11B-MDSAO-LU2
Cross Compatible LPJxxxNL
Turns Ratio (Np:Ns) 1:1; 1:1

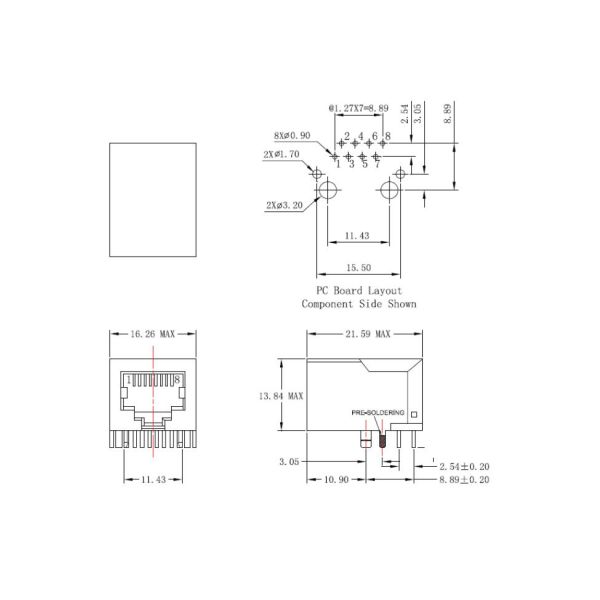

Height(mm) 13.84 mm
Length(mm) 16.26 mm
Width(mm) 21.59 mm
Manufacturer LINK-PP

10/100 Base-T RJ45 Modular Jack

1.1X1 Tab-Down
2.meeting IEEE 802.3af/at
3.RJ45 Magjack without leds

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Description:

1X1 Tab-Down 10/100M RJ45 Magjack without leds

meeting IEEE 802.3af/at

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

ARJ11B-MDSAO-LU2 Shielded 10/100 Base-T Single Port RJ45 Female Connector
