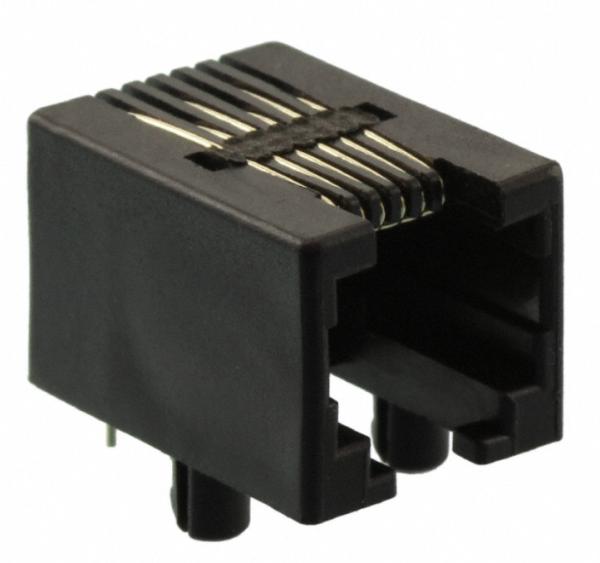

6P6C 615006141121 Wave Solderable Modular Jack Tab Down
6P6C 615006141121 Wave Solderable Modular Jack Tab Down
6P6C 615006141121 Wave Solderable Modular Jack Tab Down
6P6C 615006141121 Wave Solderable Modular Jack Tab Down
Specifications
Brand Name :
LINK-PP
Model Number :
615006141121
Certification :
RoHS Compliant
Place of Origin :
Guangdong, China
MOQ :
50pcs
Price :
$0.3-$0.9
Payment Terms :
D/A, D/P, Western Union, MoneyGram
Supply Ability :
5KK/Month
Delivery Time :
3-7 days
Packaging Details :
Tray
Connector Type :
Female Modular Jack
Part Number :
615006141121
Category Specification Connector Type Modular Jack (Female) Configuration :
1x1 (Single Port)
Contacts :
6 Position, 6 Contact (6P6C)
Mounting :
Through Hole, Right Angle
Termination :
Solder
Shielding :
Unshielded
Operating Temperature :
-40 °C up to +85 °C
Orientation :
Tab Down
Flammability Rating :
UL 94 V-0
Description

Why Choose 615006141121 Through Hole 6P6C Connector?

✔ Wave Soldering Optimized – Ideal for high-volume PCB assembly
✔ Universal Compatibility – Works with RJ11 (6P4C) and RJ12 (6P6C) plugs
✔ Robust Construction – Gold-plated contacts resist corrosion
✔ Space-Efficient – Right-angle mounting saves PCB space
✔ Safety Certified – Meets UL 94 V-0 flammability standards

615006141121 6P6C Modular Jack Technical Specifications

Category Specification Notes
Product Type 6P6C Modular Jack Female connector
Configuration 1 Port (1x1) Single-port design
Contact Arrangement 6 Position 6 Contact (6P6C) Compatible with the RJ12 standard
Mounting Type Through Hole Right-angle orientation
Termination Method Solder Cup Wave solder compatible
Current Rating 1.5A Max continuous current
Voltage Rating 120V AC Rated voltage
Contact Material Copper Alloy Gold plated contacts
Contact Resistance ≤20mΩ Initial value
Insulation Resistance ≥500MΩ At 500VDC
Dielectric Strength 1000V AC for 1 minute Between contacts and shell
Operating Temperature -40°C to +85°C Storage temperature same
Flammability Rating UL 94 V-0 Flame retardant
Housing Material High-temperature thermoplastic Black color
Insertion Cycles ≥500 cycles Minimum durability
Contact Plating Gold over nickel 0.76μm min gold thickness
Packaging Tray Standard packaging

615006141121 Datasheet:

6P6C 615006141121 Wave Solderable Modular Jack Tab Down

Typical Applications of 615006141121 Female Modular Jack

  1. Telephone Systems (RJ11/RJ12)
  2. Analog Modems & Fax Machines
  3. POS Terminals & Kiosks
  4. Industrial Control Panels
  5. Legacy Networking Equipment
