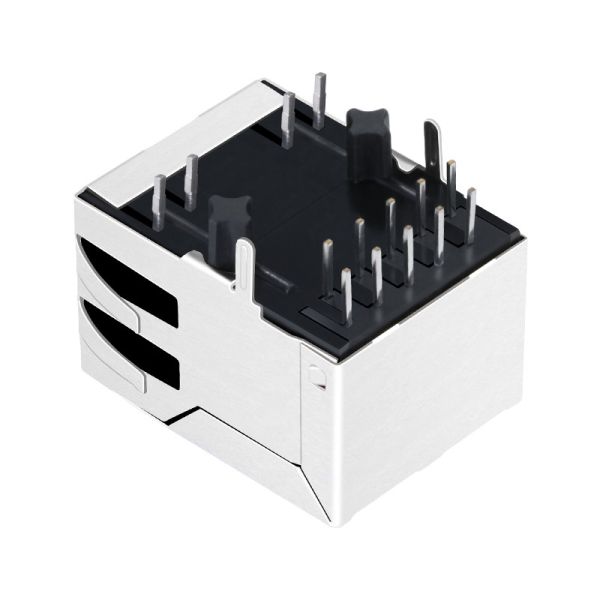

Bel SI-61001-F RJ45 Modular Jack Stewart Connector 1000 BASE-T Magnetic Shielded
Bel SI-61001-F RJ45 Modular Jack Stewart Connector 1000 BASE-T Magnetic Shielded
Bel SI-61001-F RJ45 Modular Jack Stewart Connector 1000 BASE-T Magnetic Shielded
Bel SI-61001-F RJ45 Modular Jack Stewart Connector 1000 BASE-T Magnetic Shielded
Bel SI-61001-F RJ45 Modular Jack Stewart Connector 1000 BASE-T Magnetic Shielded
Bel SI-61001-F RJ45 Modular Jack Stewart Connector 1000 BASE-T Magnetic Shielded
Bel SI-61001-F RJ45 Modular Jack Stewart Connector 1000 BASE-T Magnetic Shielded
Bel SI-61001-F RJ45 Modular Jack Stewart Connector 1000 BASE-T Magnetic Shielded
Bel SI-61001-F RJ45 Modular Jack Stewart Connector 1000 BASE-T Magnetic Shielded
Bel SI-61001-F RJ45 Modular Jack Stewart Connector 1000 BASE-T Magnetic Shielded
Specifications
Brand Name :
LINK-PP
Model Number :
SI-61001-F
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000/25K
Price :
$0.05-$1.28
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4200K-PCS/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
Part Number :
SI-61001-F
Made In China :
LPJG0820GENL
China Manufacturer :
LINK-PP
Application :
10/100/1000Base-T
Termination :
Solder
LEDs :
Green-Yellow
Description
Bel SI-61001-F RJ45 Modular Jack Stewart Connector 1000 BASE-T Magnetic Shielded

Bel SI-61001-F = LPJG0820GENL LINK-PP
Trader Part Number SI-61001-F Bel
Price Break Unit Price Extended Price
1-5 Free Free
10-50 2.5 >25
100-500 2.2 >220
1,000-2,500 1.15 >1150
5,000 1.00 >5000
10,000 Negotiable Negotiable
50,000 Negotiable Negotiable
100,000 Negotiable Negotiable
500,000 Negotiable Negotiable
Manufacturer

Stewart Connector
Manufacturer PN

SI-61001-F / SI61001F
Description

CONN MAGJACK 1PORT 1000 BASE-T
Lead Free Status / RoHS Status Lead free / RoHS Compliant
LINK-PP China Factory Cross LPJG0820GENL Made In China
LPJG0820GENL Quantity Available

50,000 PCS
or 4 weeks ship immediately

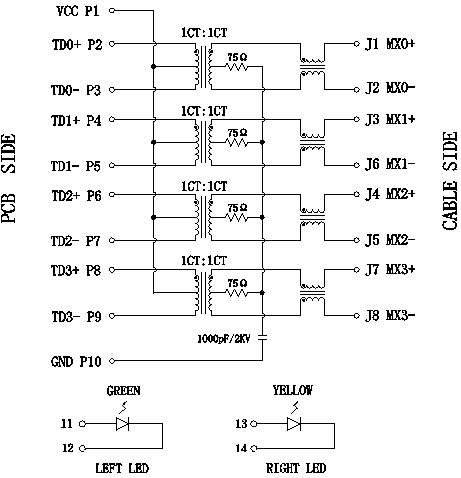

Electrical Specifications @ 25℃

unless otherwise noted:

1.Inductance: 350uH min, 100KHz, 100mV, 8mADC,
J1-J2;J3-J6;J4-J5;J7-J8, LP.
2.Return Loss(dB Min): 1-40MHz:-18
40-60MHz:-14
60-80MHz:-12
80-100MHz:-10
3.Crosstalk: 1-100MHz:-30dB Min
4.Insertion Loss: 1-100MHz:-1.0dB Max
5.CMR: 1-100MHz:-35dB Min
6.Turns Ratio: 1CT∶1CT
7.Isolation Voltage: 1500Vrms/60Hz
8.Operating Temperature Range: 0℃-70℃.

Bel SI-61001-F RJ45 Modular Jack Stewart Connector 1000 BASE-T Magnetic Shielded

Bel SI-61001-F RJ45 Modular Jack Stewart Connector 1000 BASE-T Magnetic Shielded

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:
20 years production experience,
1100 staff,
100% test
Flexible delivery time

LINK-PP Made In China,Factory Mass Production List:

SI-50210-F SI-60066-F SI-53014-F SI-51019-F
SI-50211-F SI-60068-F SI-53015 SI-51020-F
SI-50212-F SI-60069-F SI-53015-F SI-51021-F
SI-50214-F SI-60071-F SI-53015-G SI-51024-F
SI-50217-F SI-60073-F SI-53019 SI-51025-F
SI-50218-F SI-60074-F SI-53019-F SI-51026-FB
SI-50219-F SI-60075-F SI-53021-F SI-51027-F
SI-50223-F SI-60076-F SI-53024-F SI-51029-FB
SI-50224-F SI-60078-F SI-53030-F SI-51030-F
SI-50226-F SI-60080-F SI-53031-F SI-51031-F
SI-50229-F SI-60081-F SI-53035-F SI-52001
SI-50230-G SI-60082-F SI-53036-F SI-52001-F
SI-50237-F SI-60083-F SI-53037-F SI-52002-F
SI-50239-F SI-60084-F SI-53038-F SI-52003-F
SI-50244-G SI-60085-F SI-53040-F SI-52004-F
SI-51002 SI-60088-F SI-53041-F SI-52005-F
SI-51002-F SI-60089-F SI-53042-F SI-52006-F
SI-51002-G SI-60090-F SI-55002 SI-52007-F
