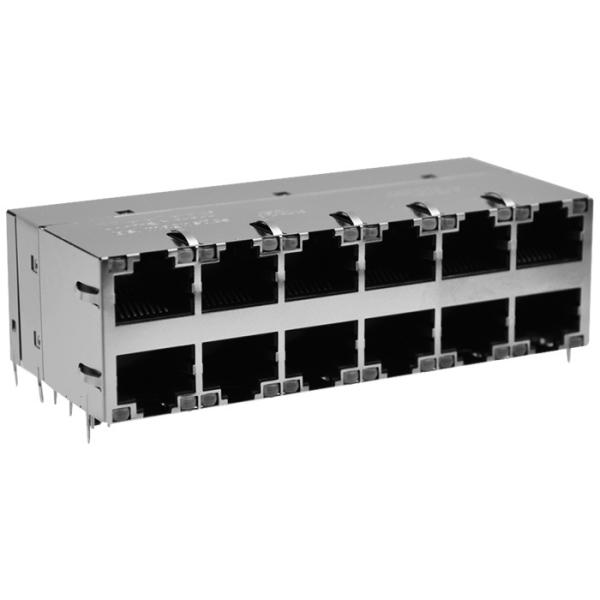

1-1840860-1 Stacked RJ45 Integrated Magnetics 100% Hi-Pot Tested
1-1840860-1 Stacked RJ45 Integrated Magnetics 100% Hi-Pot Tested
Specifications
Brand Name :
LINK-PP
Model Number :
1-1840860-1
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000/60K
Price :
$0.11-$7
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
180K/Month
Delivery Time :
3-5 days
Packaging Details :
Tray
Number of Ports :
Stacked 2x6
Series :
Multiport RJ45 Connector with Magnetics
EMI Fingers :
With
LED Configuration :
G/G
Operating Temperature :
0°C to +70°C
Free Samples :
Available
Description

Specifications of Stacked RJ45 Connectors:

Part Number 1840860‑1
Number of Ports 2×6 (Stacked)
Ethernet Speed 1000BASE‑T (Gigabit)
LED Presence Yes
LED Type Green/Green (G/G)
Height Profile Standard
Port Configuration Stacked
EMI Shield Tabs Yes
Mounting Type Through-Hole
Operating Temp. (ºC) 0 ~ +70
RoHS Compliant Yes

1-1840860-1​ Datasheet:

1-1840860-1 Stacked RJ45 Integrated Magnetics 100% Hi-Pot Tested

1-1840860-1 Stacked RJ45 Integrated Magnetics 100% Hi-Pot Tested

Handling & Maintenance:

1. Electrostatic Discharge (ESD)

  • Handle in ESD-safe areas with wrist straps and grounded surfaces.
  • Sensitive internal magnetics and LED components may degrade from static discharge.

2. Connector Cleaning

  • Use dry air or isopropyl alcohol with lint-free swabs to clean contact areas.
  • Do not use water or strong solvents that may degrade the plastic housing or LED lenses.

3. Soldering Precautions

  • Observe standard through-hole soldering temperature profiles (1-1840860-1RJ45 Multi Connectors are recommended for wave soldering process, peak temperature 260°C for 10 seconds).
  • Avoid multiple reflows or excessive preheat durations that may cause shield deformation or plastic warping.
