Specifications
Brand Name :
LINK-PP
Model Number :
615006143421
Certification :
RoHS, EU and REACH
Place of Origin :
China
MOQ :
1pcs
Price :
$0.09-$1.1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
500K/Month
Delivery Time :
3-5 days
Packaging Details :
Tray
Part Number :
615006143421
Latch :
Tab Down
Number of position/contacts :
6P6C
Mounting Type :
THT
RoHS :
Yes
Shielding :
Shielded
Description

Electrical Properties of 615006143421 6P6C Jack:


615006143421 Jack has a rated current of 1.5 Amperes and a working voltage of 120 Volts (AC). It can withstand a voltage of 1000 Volts (AC) for 60 seconds. The contact resistance is a maximum of 20 milliohms, and the insulation resistance is a minimum of 500 megaohms when tested at 500 Volts (DC).

Material Properties:

The materials used in constructing the 615006143421 modular jack include PBT (Polybutylene Terephthalate) for the black insulator housing, which has a flammability rating of UL94 V-0. The contacts are made from a copper alloy and are selectively plated with gold over nickel. The half-shielding is typically made from a copper alloy, plated with tin or nickel, providing EMI protection.

615006143421 Modular Jack Specification:

Parameter Specification
Part Number 615006143421
Latch Orientation Down
Positions/Contacts 6P6C
Mounting Type THT (Through-Hole)
LED Option Without LED
EMI Tabs No
Shielding Metal Shielded
Orientation Horizontal
Length 17.20 mm
Width 15.75 mm
Height 13.93 mm

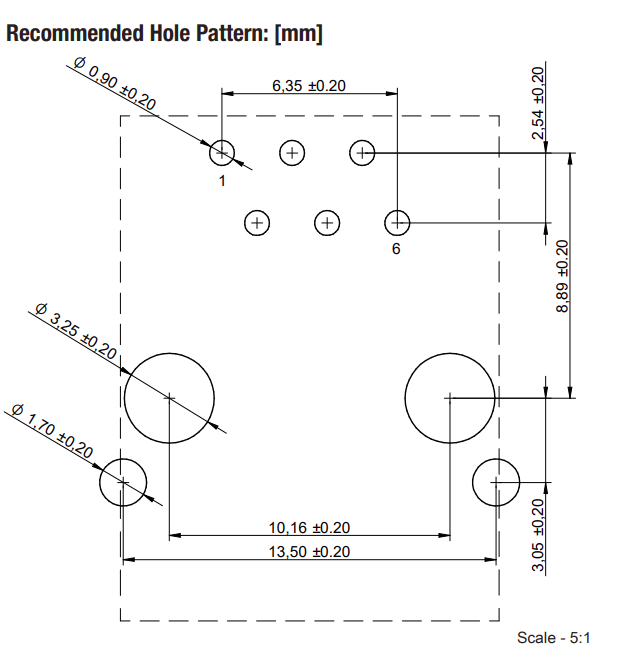

615006143421 6P6C Jack Datasheet - Recommended Hole Pattern:

615006143421 Through Hole Modular Jack 6 Positions 6 Contacts

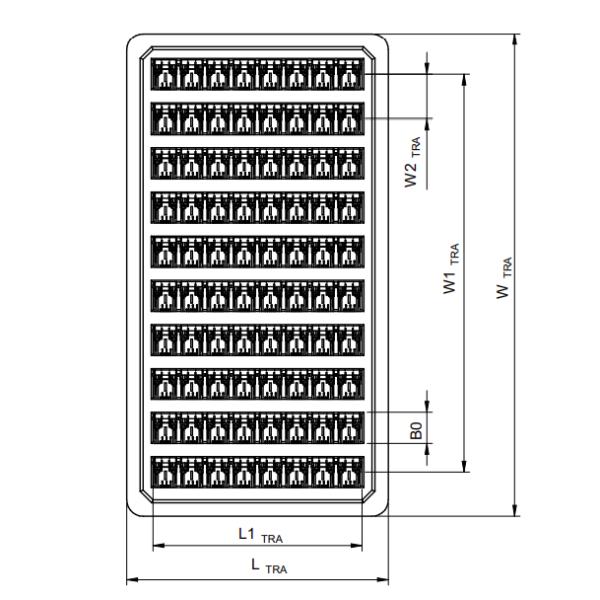

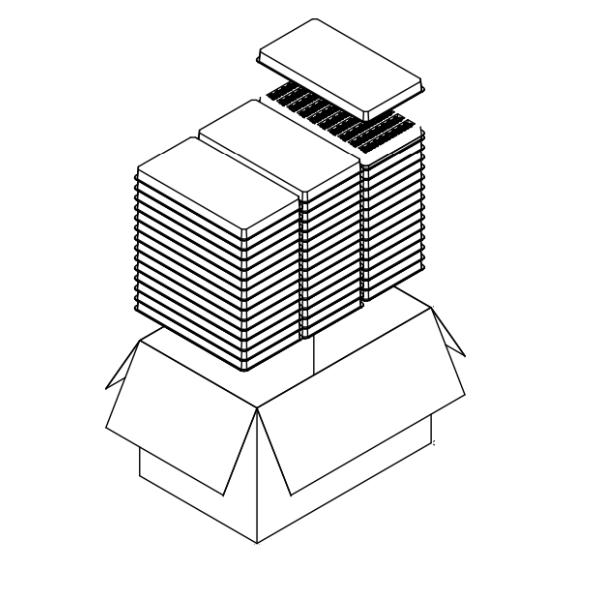

615006143421 6P6C Jack Tray Packaging:

615006143421 Through Hole Modular Jack 6 Positions 6 Contacts

615006143421 Through Hole Modular Jack 6 Positions 6 Contacts
