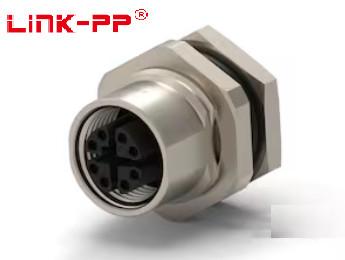

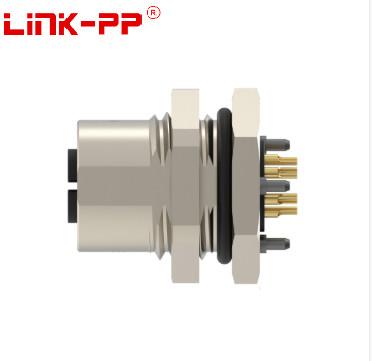

2271195-1 Standard M12 Circular Connector with X-Code Configuration
2271195-1 Standard M12 Circular Connector with X-Code Configuration
2271195-1 Standard M12 Circular Connector with X-Code Configuration
2271195-1 Standard M12 Circular Connector with X-Code Configuration
Specifications
Brand Name :
LINK-PP
Model Number :
2271195-1
Certification :
RoHS Compliant
Place of Origin :
HuiZhou, China
MOQ :
1pcs，Free samples
Price :
$55 Discount
Payment Terms :
TT, NET30/60/90 Days
Supply Ability :
5KK/Month
Delivery Time :
2-3 Weeks
Packaging Details :
Bulk，1piece in a bag
Connector Type :
2271195-1 M12 Panel Mount Connector
Mounting Type :
Panel Mount
Number of Positions :
8 Position
Sealable :
Yes
Fastening Type :
Threaded
Orientation :
X-Code Configuration
Description

Specifications of Rear Panel Mount M12 8 Pin Female Connector:

Part Number

2271195-1 M12 Female Connector
Rated Voltage 8V

Rated Current

0.5A
Contact Resistance Max. 5 mΩ
Insulation Resistance Min. 100 MΩ
Protection Rating IP67
Shielding Shielded
Gender Female
Operating Temperature Range -25°C to +85°C
Transmission Performance CAT6a

Features and Benefits:

  • X-coded connectors support higher bandwidth needs of up to 10 Gb/s
  • Easily installable connector system
  • IP67 Environmental protection
  • Robust metal housing provides excellent EMI shielding
  • Threaded mating retention ensures secure connections
  • Factory-assembled design reduces installation time
  • Reverse gender configuration for specific application requirements
  • Solder termination for reliable wire connections
  • Panel mount design for easy integration into equipment enclosures
  • Complies with IEC standards

2271195-1 M12 8-pin X Coded Drawing:

2271195-1 Standard M12 Circular Connector with X-Code Configuration
