TE 133184-E Shielded Single Port RJ45 Jack Vertical Mounting
TE 133184-E Shielded Single Port RJ45 Jack Vertical Mounting
Specifications
Brand Name :
LINK-PP
Model Number :
133184-E (LPJE618-0DNL)
Certification :
SGS, UL, CE, ISO9001:2008
Place of Origin :
Guangdong, China
MOQ :
100pcs
Price :
$2.5-$8.5
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
6000K-PCS/Month
Delivery Time :
Ships within 15 days
Packaging Details :
Tray
LINK-PP Part Number :
LPJE618-0DNL
TE Part Number :
133184-E
Number of Positions :
8P
Number of Loaded Positions :
8C
Voltage Rating :
125 VAC RMS
Current Rating :
1.5 AMP
Contact Resistance :
50 mΩ Max
Insulation Resistance :
500 M Min @500V DC
Dielectric Strength :
1500 VAC RMS 60Hz,1MIN.
Operating Life :
750 Cycles Min.
Description

Features of 133184-E RJ45 Connector:

Items 1X1 RJ45 8P8C Modular jack Through Hole without LEDs
Port Configuration Single Port
Part Number 133184-E
Modular Jack & Plug Interface Type RJ45

Connector Contact Density

 Standard
PCB Mount Orientation Vertical
Connector Profile Standard
Connector Height 16.59mm
Number Of Positions/Contacts 8P8C
Termination Method to PCB Through Hole - Solder
Termination Post & Tail Length 3.2mm
Pitch 2.54mm
PCB Mount Retention Type Location Peg
Shielding Shielded
LED Indicator Without
Operation Temperature 0°C to +70°C
Circuit Application Signal
Performance Category Cat 5
Grounding Options None
Packaging Method Tray

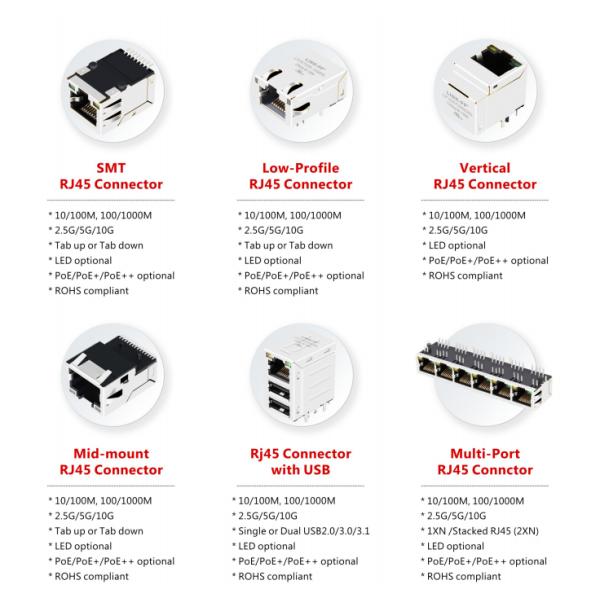

LINK-PP RJ45 Connectors:

Experience seamless connectivity and redefine network performance

  • SMT RJ45 Connector
  • Low-Profile RJ45 Connector
  • Vertical RJ45 Connector
  • Mid-mount RJ45 Connector
  • RJ45 Connector with USB
  • Multi-Port RJ45 Connctor
