SFPC-PF SFP+ Cage Connector for SFP+ 10GbE transceivers Press Fit
SFPC-PF SFP+ Cage Connector for SFP+ 10GbE transceivers Press Fit
Specifications
Brand Name :
LINK-PP
Model Number :
SFPC-PF
Certification :
EU RoHS and REACH Compliance
Place of Origin :
China
MOQ :
10pcs
Price :
$0.8
Payment Terms :
Western Union,T/T,D/P,D/A
Supply Ability :
5kk per Mouth
Delivery Time :
In Stock Ship Within 3 Days
Packaging Details :
Tape and Reel
Part Number :
SFPC‑PF
Connector Type :
SFP+ Cage (10GbE)
Mounting Type :
Right-Angle PCB Mount, Press-Fit
Cage Material :
Metal, EMI Shielded
Port Count :
1 Port
Operating Temperature :
-40°C to +85°C
Description


The SFPC-PF SFP+ Cage is a robust, high-speed SFP+ connector designed for 10GbE and high-frequency networking applications. Engineered for seamless PCB integration, it ensures reliable signal integrity and mechanical stability. Compatible with industry-standard SFP+ transceivers, this cage is ideal for enterprise networking, data centers, and telecommunication equipment.

SFPC-PF SFP+ Cage Features


The SFPC-PF SFP+ Cage provides engineers with a reliable, high-performance solution for 10GbE networking, combining industry-standard compliance, robust EMI shielding, and SMT-friendly design for rapid PCB assembly.

  • High-Speed Signal Support: Optimized for SFP+ 10GbE transceivers.
  • Robust Construction: Precision metal cage for durability and EMI protection.
  • PCB-Friendly Design: Surface-mount technology (SMT) compatible.
  • Standard Compliance: SFP+ MSA (Multi-Source Agreement) compliant.
  • Flexible Orientation: Supports vertical and right-angle mounting options.

SFPC‑PF SFP+ Cage Technical Specifications

Parameter Specification
Part Number / Series SFPC‑PF (SFP+ Cage, Press‑Fit)
Connector Type SFP+ Cage Assembly (for MECT / SFPE transceivers)
No. of Ports 1‑port (standard)
Termination Style Press‑Fit (PF) to PCB; also available in Solder Lead (SL) / PCI Press‑Fit (PC) options
Mounting Orientation Right‑angle PCB mount (Press‑Fit)
Usage SFP+ 10Gb/s hot‑pluggable transceiver cage interface
Cage Material Metal shielded cage (typically nickel/steel alloy)
EMI Shielding Full metal EMI shielding, compliant with industry SFP+ form‑factor
Standard Compliance SFP+ SFF MSA form‑factor compliant (10GbE, high‑speed I/O)
Panel/Kit Options Available with panel mount kit (SFPK series) options in 2‑port or 4‑port
Typical Cage Dimensions ~48.73 mm (length) × ~14.0 mm (width) × ~8.95 mm (height) (based on SFPC series generic data)
PCB Footprint Designed for standard SFP/SFP+ host board footprint (Pin‑compatible with MECT socket)
Operating Temperature Typical industrial range (often –40°C to +85°C depending on design) Confirmed per SFP+ industry norm
RoHS Compliance RoHS compliant according to supplier listings

  • Termination: Press‑Fit (PF) is the primary termination type for SFPC‑PF, providing reliable mechanical retention without soldering.
  • Mounting: Designed as a right‑angle PCB mount, facilitating compact board layouts in networking equipment.
  • Cage Dimensions: While exact SFPC‑PF measurements are sourced from the general SFPC series datasheet, these are industry‑standard dimensions for 1×1 SFP+ cages.
  • Variations: The SFPC/SFPK family includes multiple configurations (panel mount, multiple ports, different gaskets), but SFPC‑PF refers specifically to the single‑port press‑fit cage.

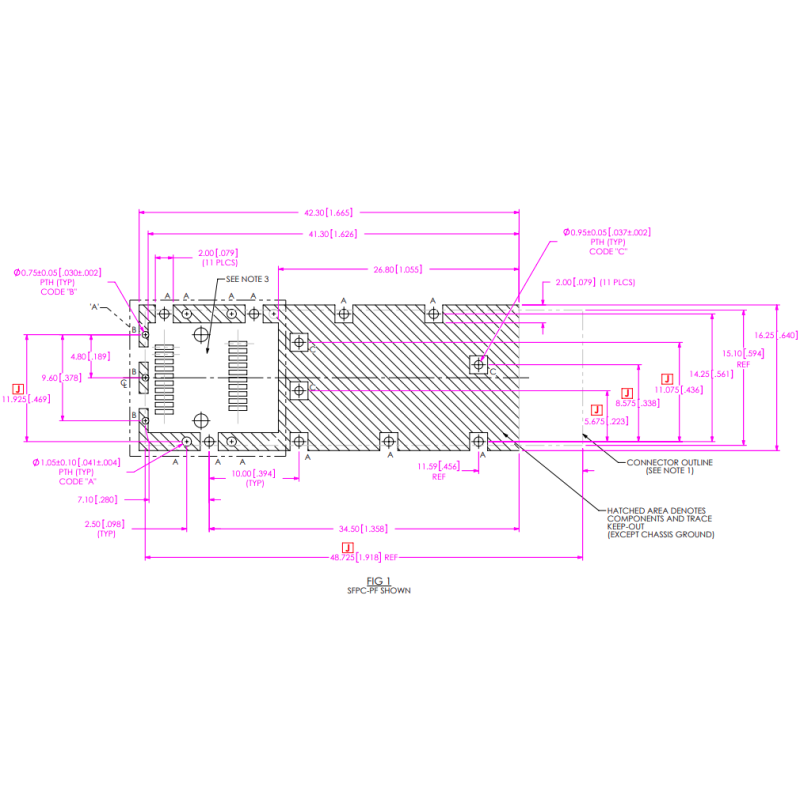

SFPC‑PF Datasheet - RECOMMENDED PCB LAYOUT

SFPC-PF SFP+ Cage Connector for SFP+ 10GbE transceivers Press Fit

Installation and Mounting Guidelines

  1. PCB Design: Ensure PCB footprint matches SFPC‑PF specifications for press-fit retention.
  2. Thermal Management: Operating range is -40°C to +85°C, suitable for industrial and server-grade boards.
  3. Signal Integrity: Full metal cage shielding minimizes electromagnetic interference, critical for 10GbE data rates.
  4. Installation: Press-fit terminals allow direct insertion into PCB without soldering; follow ESD protection practices during assembly.
  5. Hot-Swap Compatibility: Designed for hot-pluggable SFP+ transceivers, ensuring minimal downtime in networking equipment.

Frequently Asked Questions About SFPC-PF:

Q1: What is the primary mounting type of SFPC‑PF?

A1: It is a right-angle PCB mount with press-fit termination, enabling secure mechanical retention without soldering.

Q2: What data rates does SFPC‑PF support?

A2: SFPC‑PF supports 10GbE SFP+ transceivers, providing reliable high-speed connectivity.

Q3: Is the SFPC‑PF cage EMI shielded?

A3: Yes, the cage is fully metal shielded, protecting against EMI/RFI and maintaining signal integrity.

Q4: Can SFPC‑PF be used with optical SFP+ transceivers?

A4: Yes, it is SFP+ MSA form-factor compliant, supporting both optical and electrical SFP+ modules.

Q5: What is the operating temperature range?

A5: The standard operating range is -40°C to +85°C, suitable for industrial and data center environments.

Q6: How many ports does the SFPC‑PF support?

A6: It is designed as a single-port cage. Multi-port options are available in the SFPC/SFPK family.

Q7: Can it be used in automated PCB assembly?

A7: Yes, the press-fit design allows for automated insertion into PCBs without soldering, ideal for high-volume production.

Q8: Are there variations in panel mounting?

A8: Yes, SFPC‑PF can be combined with panel mount kits (SFPK series) for multi-port or chassis-mounted configurations.
