L1CN001-0 Compatible LINK-PP LP81801NL 1000 Base - T Single Port LAN Filte Transformer 18PIN
L1CN001-0 Compatible LINK-PP LP81801NL 1000 Base - T Single Port LAN Filte Transformer 18PIN
L1CN001-0 Compatible LINK-PP LP81801NL 1000 Base - T Single Port LAN Filte Transformer 18PIN
L1CN001-0 Compatible LINK-PP LP81801NL 1000 Base - T Single Port LAN Filte Transformer 18PIN
L1CN001-0 Compatible LINK-PP LP81801NL 1000 Base - T Single Port LAN Filte Transformer 18PIN
L1CN001-0 Compatible LINK-PP LP81801NL 1000 Base - T Single Port LAN Filte Transformer 18PIN
Specifications
Brand Name :
LINK-PP
Model Number :
LP81801NL
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
400/2000/10K/25K
Price :
$0.06-$3.2
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3KK/Month
Delivery Time :
Stock
Packaging Details :
T&R
Original :
L1CN001-0
Equivalent :
LP81801NL
Speed :
1000 Base-T
Transformer Type :
Isolation and Data Interface
Operating Temperature :
0°C to +70°C
File :
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
Description
L1CN001-0 Compatible LINK-PP LP81801NL 1000 Base - T Single Port LAN Filte Transformer 18PIN

LINK-PP Part Number LP81801NL
UDE Part Number L1CN001-0
Manufacturer LINK-PP
Speed 1000 BASE-T
Number of Ports Single Port
PIN number 18 PIN
Cores per Port 8
POE Ethernet(NON PoE )
Type DIP
Size 16.8 x 8.5 x 11.5
Pin Pitch 1.78
Circuits T+2C
Operating Temperature 0°C to +70°C
CMC Cable

You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.06-$3.2 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

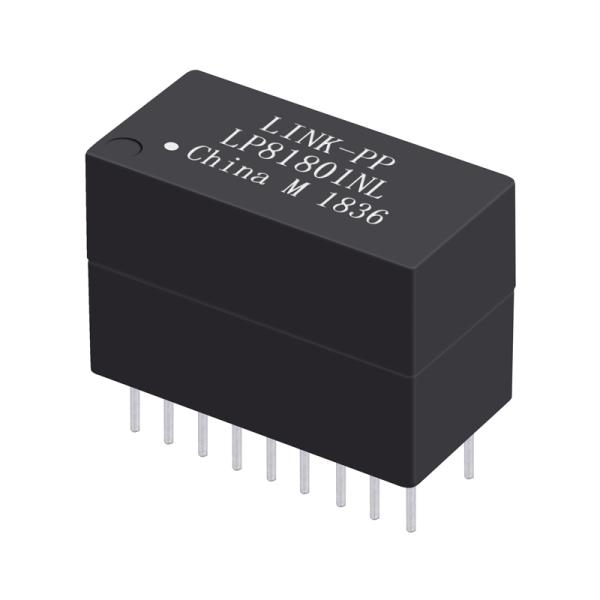

L1CN001-0 Compatible LINK-PP LP81801NL 1000 Base - T Single Port LAN Filte Transformer 18PIN

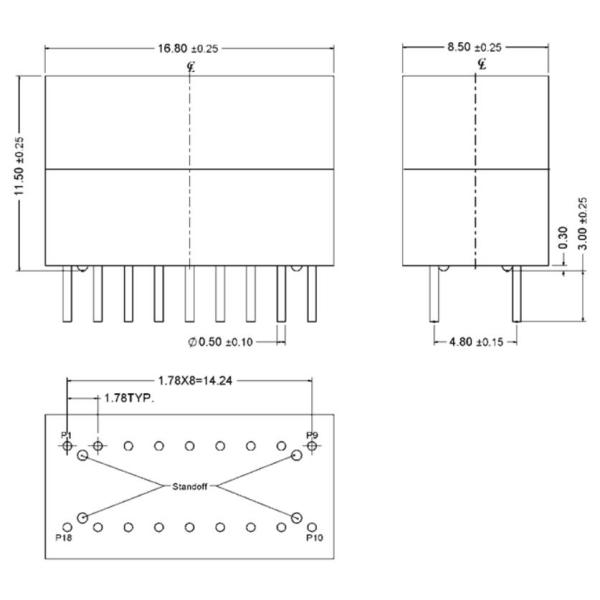

L1CN001-0 Single Port LAN Filte Transformer Product Dimension:

L1CN001-0 Compatible LINK-PP LP81801NL 1000 Base - T Single Port LAN Filte Transformer 18PIN

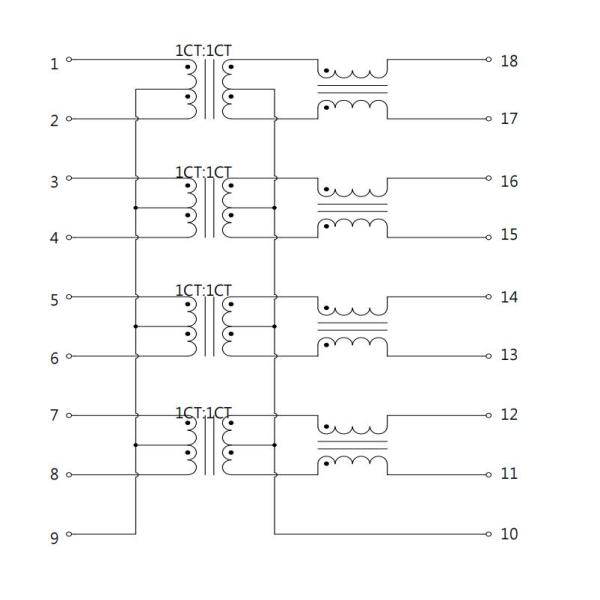

L1CN001-0 ELECTRICAL CHARACTERISTICS Schematic:

L1CN001-0 Compatible LINK-PP LP81801NL 1000 Base - T Single Port LAN Filte Transformer 18PIN

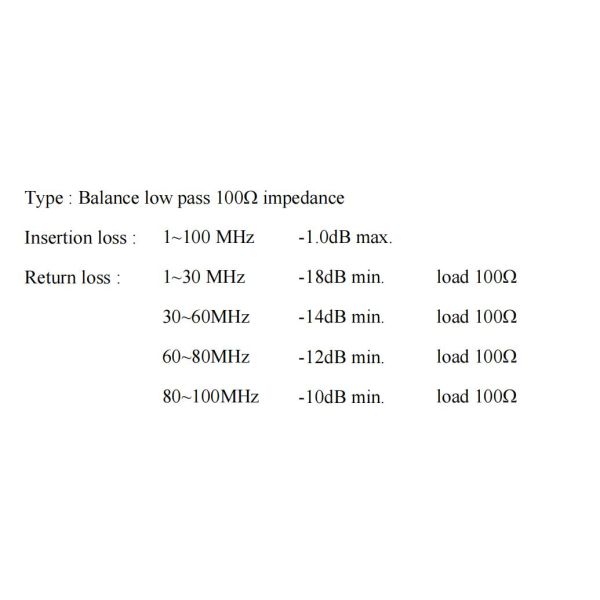

L1CN001-0 Electrical Specifications @25C
L1CN001-0 Compatible LINK-PP LP81801NL 1000 Base - T Single Port LAN Filte Transformer 18PIN
L1CN001-0​ SPECIFICATION
1 Designed for Ethernet 1000 Base-T,Single port applications.
2 Supports 4 pairs of category 5 UTP cable.
3 Cable interface for isolation and low common mode emissions.
4 Compliant with IEEE 802. 3ab standard for 1000 Base-T.
5 Compliant with Halogen Free& RoHS requirements.
6 Operating and Storage Temperature
Operating Temperature: 0°C to +70°C
Storage Temperature: -25°C to + 105°C
7 Packing Information
30 pcs finished goods per Tube
192 Tubes(5760 pcs finished goods) per master carton.

L1CN001-0 Similar Part Number :

L1CN001-0 L3AH002-0 L3BH002-0
L12N003-0 L12T001-2 L12T002-0
L13H003-0 L14H001-3 L14H002-4
L14H003-3 L14H005-0 L14T002-0
L14T002-3 L18T010-3 L19H007-4
