HR951180AE Shielded Vertical RJ45 Magnetic Ethernet Connector LPJD4110BANL
HR951180AE Shielded Vertical RJ45 Magnetic Ethernet Connector LPJD4110BANL
HR951180AE Shielded Vertical RJ45 Magnetic Ethernet Connector LPJD4110BANL
HR951180AE Shielded Vertical RJ45 Magnetic Ethernet Connector LPJD4110BANL
Specifications
Brand Name :
LINK-PP
Model Number :
HR951180AE
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
GuangDong, China
MOQ :
50/500/1000/25K
Price :
$0.09-$1.85
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3000000/Month
Delivery Time :
Stock
Packaging Details :
Optional
Part Number :
HR951180AE
PIN TO PIN :
LPJD4110BANL
Speed :
10/100 BASE-T
Temperature :
-40 TO +85℃
File :
PDF/3D/ISG/Stp/Step/Datasheet
Samples :
Free
Description

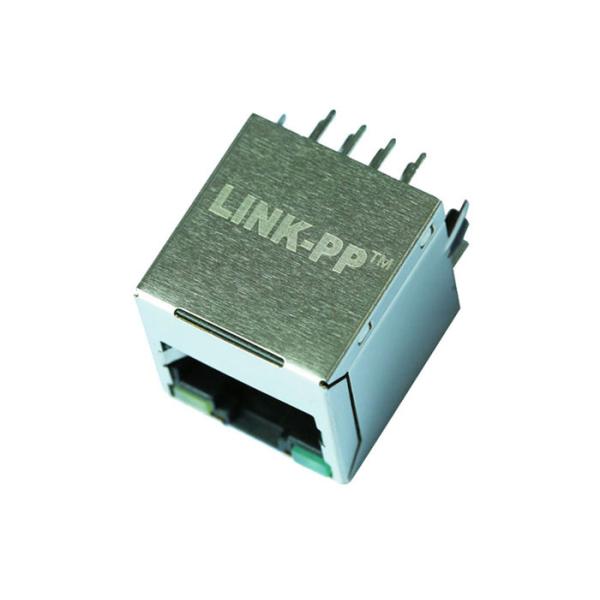

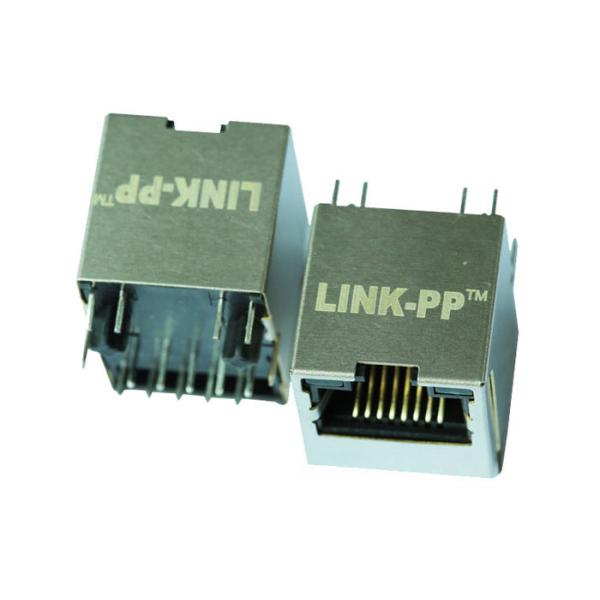

HR951180AE Shielded Vertical RJ45 Magnetic Ethernet Connector LPJD4110BANL

Shielded Vertical RJ45 Magnetic Ethernet Connector with 10/100 Base-T Integrated Magnetics ,Yellow/Green LED,RoHS
LINK-PP Part Number LPJD4110BANL
Hanrun Part Number HR951180AE
Application-Lan ETHERNET(PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option Yellow/Green LEDs
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle Vertical
PCB Retaining Post T POST
Package Height (Inches) 0.665
Package Height (mm) 16.90
Package Length (Inches) 0.657
Package Length (mm) 16.70
Package Width (Inches) 0.630
Package Width (mm) 16.00
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed 10/100 Base-T
Temperature -40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years

Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT

•Delivery Time:2-3 Weeks After Orders

Partner

Intel Atom Processor E3800 Product Family MinnowBoard MAX----Supported by LINK-PP Magnetic Rj45 PN#LPJG16314A4NL

For any further information,Welcome to visit www.intel.com, you will find out our logo"LINK-PP" on MinnowBoard MAX .
