5631-S-K6-F-8C Shielded RJ45 8P8C Modular Jack with EMI Fingers
5631-S-K6-F-8C Shielded RJ45 8P8C Modular Jack with EMI Fingers
5631-S-K6-F-8C Shielded RJ45 8P8C Modular Jack with EMI Fingers
5631-S-K6-F-8C Shielded RJ45 8P8C Modular Jack with EMI Fingers
Specifications
Brand Name :
LINK-PP
Model Number :
5631-S-K6-F-8C
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000/25K
Price :
$0.05-$1.28
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4200K-PCS/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
Product Name :
Single Port RJ45 Connector
Cable System :
Cat 5/5e
Termination Style :
Through Hole
Gender :
RJ45 Female
Termination :
Solder
Application :
Networking, Telecom, Signal
Description

5631-S-K6-F-8C Shielded RJ45 Connector Overview

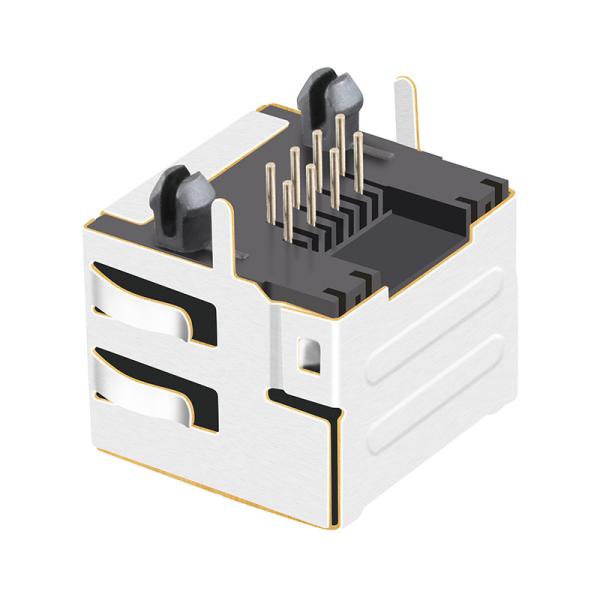

The 5631-S-K6-F-8C Shielded RJ45 Modular Jack (LINK-PP Part Number LPJE101CNL) is a single-port 8P8C RJ45 female connector without integrated magnetics, designed for Ethernet networking equipment requiring reliable signal integrity and EMI shielding.

This side-entry shielded RJ45 connector features EMI grounding fingers, gold-plated contacts, and THT solder mounting, making it suitable for high-reliability networking devices such as routers, switches, and LAN-on-Motherboard designs.

The connector supports standard Ethernet interfaces and is optimized for non-PoE networking applications where magnetics are implemented externally on the PCB.

Key Features

  • 1x1 Port 8P8C RJ45 Female Connector
  • Shielded design with EMI grounding fingers
  • Side-entry PCB mounting
  • Gold plated contacts (6µ"/15µ"/30µ")
  • THT solder termination
  • 500 mating cycle durability
  • Industrial operating temperature −40°C to +85°C
  • RoHS compliant

​

Key Specifications of 5631-S-K6-F-8C 8P8C Modular Jack

Parameter Specification
Part Number LPJE101CNL
Alternative P/N 5631-S-K6-F-8C
Connector Type RJ45 Modular Jack
Port Configuration 1 × 1
Contact Position 8P8C
Shielding Shielded with EMI Fingers
Magnetics Without Integrated Magnetics
LED No LED
Mounting Type Through Hole (THT)
PCB Mounting Angle Side Entry
Latch Orientation Tab Up
PCB Retaining Post T-Post
Contact Plating Gold 6µ"/15µ"/30µ"
Contact Material Phosphor Bronze
Insulator Material PBT
Flammability Rating UL94-V0
Mating Cycles 500
UL Certification E324776

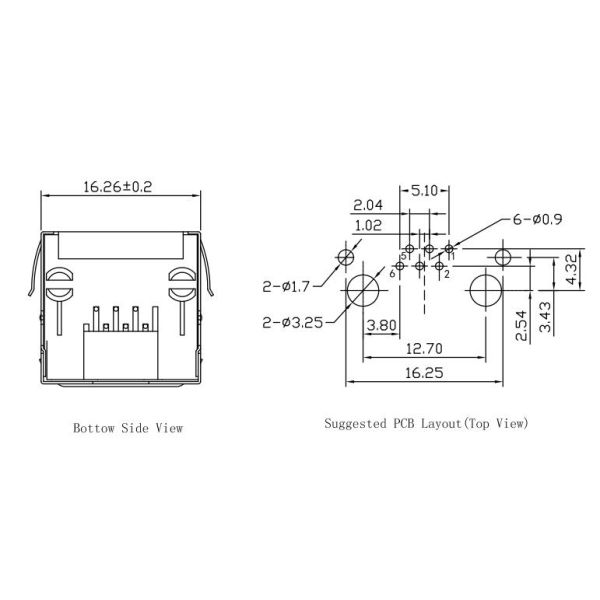

Mechanical Dimensions

Dimension Inches mm
Length 0.620 15.75
Width 0.640 16.25
Height 0.516 13.10

Electrical Characteristics

Parameter Specification
Current Rating 1.5 A
Working Voltage 120 VAC
Insulation Resistance ≥ 1000 MΩ
Contact Resistance ≤ 20 mΩ
Dielectric Withstanding Voltage 1000 VAC / 1 minute

Environmental Specifications

Parameter Specification
Operating Temperature −40°C to +85°C
Compliance RoHS Compliant
Soldering Process JEDEC Lead-Free Wave Soldering

5631-S-K6-F-8C RJ45 Connector Datasheet

5631-S-K6-F-8C Shielded RJ45 8P8C Modular Jack with EMI Fingers

RJ45 Modular Jack Typical Applications

The 5631-S-K6-F-8C shielded RJ45 connector is widely used in Ethernet networking and communication systems, including:

  • Ethernet Switches
  • Routers
  • LAN-on-Motherboard (LOM)
  • Network Interface Cards
  • xDSL Modems
  • IP Phones
  • VoIP Gateways
  • Set-Top Boxes
  • Industrial Networking Equipment

Why Choose LINK-PP RJ45 Connectors

The LINK-PP LPJE101CNL is 100% compatible with 5631-S-K6-F-8C, offering a reliable drop-in replacement for existing Ethernet hardware designs without requiring PCB modifications.

LINK-PP provides a full portfolio of RJ45 connectors, integrated magnetics jacks (MagJack), LAN transformers, and high-speed Ethernet connectivity solutions for networking equipment manufacturers worldwide.

Key Advantages

  • 100% compatible with 5631-S-K6-F-8C
  • Strict electrical and mechanical validation
  • Automated high-precision manufacturing
  • High reliability for telecom and industrial applications
  • Stable global supply chain
  • OEM / ODM customization support
