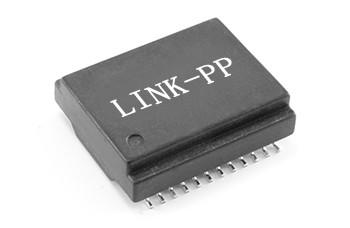

H6072FNL H6072FNLT Gigabit ETHERNET TRANSFORMER/CHOKE
H6072FNL H6072FNLT Gigabit ETHERNET TRANSFORMER/CHOKE
Specifications
Brand Name :
LINK-PP
Model Number :
H6072FNL
Certification :
RoHS Compliant
Place of Origin :
China
MOQ :
400/2000/10K/25K
Price :
$0.06-$3.2
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3KK/Month
Delivery Time :
Stock
Packaging Details :
T&R
Item :
H6072FNL / H6072FNLT
Ethernet :
1000 Base-T
Pins :
24
Files :
Datasheet / 3D
Free Samples :
Available
Port :
Single
Isolation Voltage :
1500V AC
Turns Ratio :
1CT:1CT
Description

H6072FNL H6072FNLT 10/100/1000 Base-T LAN Ethernet Transformer Specifications:

General Specifications:

APPLICATION-LAN

ETHERNET TRANSFORMER/CHOKE
PART NUMBER H6072FNL / H6072FNLT

NUMBER OF PORTS

SINGLE

MOUNTING STYLE

SMT

PACKAGE HEIGHT MM

5.715

PACKAGE LENGTH MM

17.50

PACKAGE WIDTH MM

15.24

SPEED

1000BASE-T

OPERATING TEMPERATURE

0 TO 70
COMPLIANCE RoHS compliant, IEEE 802.3 Specifications
PACKAGING Tape & Reel
Electrical Characteristics (at 25°C):
Turns Ratio 1:1 ±2%
Insertion Loss (1-125 MHz) -1.2 dB MAX
Return Loss (1-40 MHz) -16 dB MIN
Return Loss (40-100 MHz) -10+20*LOG10(f/80MHz) dB MIN
Crosstalk (Adjacent Channels) -40 dB MIN (1-100 MHz)
Common Mode Rejection Ratio (CMRR) -30 dB MIN (1-100 MHz)
Inductance (OCL) with 8mA DC Bias 350µH minimum
Physical and Material Specifications:
Header DAP (Diallyl Phthalate) with UL 94V-0 flammability rating
Storage Temperature -20°C to +125°C
Solderability Compliant with J-STD-002 at 245°C reflow profile.
Moisture Sensitivity Level 1, no moisture sensitivity
RoHS Yes

H6072FNL H6072FNLT LAN Mgnetics - Datasheet :

H6072FNL H6072FNLT Gigabit ETHERNET TRANSFORMER/CHOKE

H6072FNL H6072FNLT Gigabit ETHERNET TRANSFORMER/CHOKE

Ethernet Magnetics Notes:

  1. Specifically designed to support Ethernet applications such as LAN, ADSL, xDSL modems, routers, switches, and other networking devices.
  2. Available with various turn ratios to meet different application requirements.
  3. Provides 350 μH minimum OCL with 8 mA bias current, ensuring signal integrity and performance stability.
  4. Maximum reflow soldering temperature: 250°C for 5 seconds, suitable for standard SMT processes.
  5. Fully compliant with IEEE 802.3 standards for Ethernet communication.
  6. UL certified – File Number: E484635, ensuring safety and quality compliance.
  7. RoHS compliant, meeting environmental and hazardous material restrictions.
  8. 100% electrically tested – every unit is individually tested, not just batch sampling.
