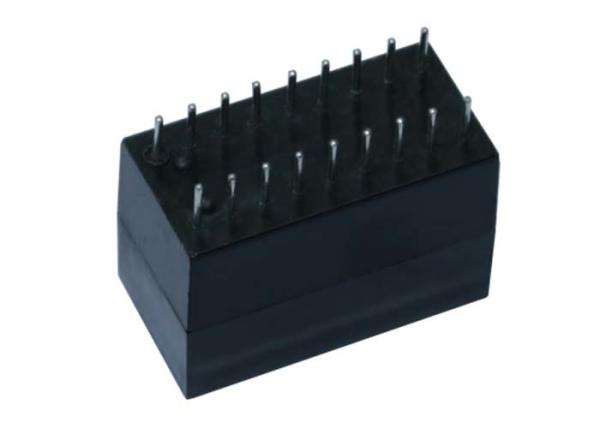

HST-18001DAR Single Port 1000 BASE-T Discrete Magnetic Transformers
HST-18001DAR Single Port 1000 BASE-T Discrete Magnetic Transformers
Specifications
Brand Name :
LINK-PP
Model Number :
HST-18001DAR
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
400/2000/10K/25K
Price :
$0.06-$3.2
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3KK/Month
Delivery Time :
Stock
Packaging Details :
T&R
LINK-PP P/N :
HST-18001DAR
Familiy :
1000 Magnetics
Mounting :
DIP
Samples :
Available
Number of Ports :
Single
Hi-pot :
1500Vrms
OCL :
350uh min
Archivi Disponibili :
PDF/3D/ISG/Stp/Step/Datasheet
Description

HST-18001DAR Single Port 1000 BASE-T Discrete Magnetic Transformers

● Designed to meet IEEE 802.3 requirements.

● Primary inductance(Lp)350uH min.@100KHz,0.1Vrms,DC 8mA.

● Capacitance between windings (Cww)112pF Max(at 100kHz, 0.1V).

● Leakage Inductance (LL) 0.5uH Max (at 100kHz, 0.1V).

● DCR Pri0.9Ω Max Sec1.2Ω Max.

Detailed Information:

Single Port, 1000 BASE-T Ethernet Transformer Modules, SMD,Rohs
LINK-PP Part Number -
Part Number HST-18001DAR
Speed 1000BASE-T
Number of Ports

Single
Application - LAN ETHERNET (NON PoE)
Package SMD
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 8
Package Height (Inches) -
Package Height (mm) 10.50
Package Length (Inches) -
Package Length (mm) 16.30
Package Width (Inches) -
Package Width (mm) 8.0
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
