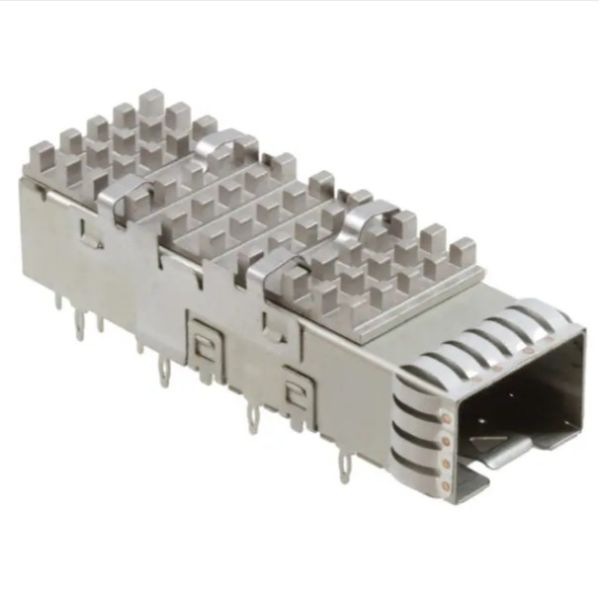

Technical Specifications of 2007464-1 SFP+ Cage with Heat Sink

Key Features of 2007464-1 SFP+ Cage Assembly

• High-Speed Data Transfer: Supports signal applications with maximum data rates up to 16 Gb/s.
• Advanced Thermal Management: Includes a pre-assembled 4.2mm pin-style heat sink (Networking Short class) for optimal heat dissipation in compact spaces.
• Rugged Durability: Constructed from high-quality Nickel Silver, capable of withstanding extreme operating temperatures from -55°C to 105°C (-67°F to 221°F).
• Reliable PCB Mounting: Utilizes a Through-Hole Press-Fit termination method for secure, solderless board assembly.
• Superior EMI Containment: Features both internal and external EMI springs to minimize electromagnetic interference and ensure clean signal transmission.

SFP+ 1x1 Cage Assy 2007464-1 Drawing

SFP+ Cage Material & Finish Details

1. Cage Material: 0.25mm Thick Nickel Silver Alloy
2. Heatsink Material & Finish: Aluminum with Electroless Nickel plating
3. Heatsink Clip: Stainless Steel, Passivated
4. EMI Springs: Copper Alloy (0.8µm Min Matte Tin over 0.8µm Min Nickel)
5. Standards Compliance: Mates with SFP MSA Compliant Transceivers

FAQs About 2007464-1 SFP+ Cage With Heat Sink

If you are sourcing a dependable SFP+ cage assembly with heatsink, the 2007464-1 offers a strong combination of high-speed support, thermal management, and EMI protection for modern networking applications.

1. What is the 2007464-1 used for?

The 2007464-1 is an SFP+ cage assembly used to support SFP+ transceivers in high-speed networking equipment.

2. Does the 2007464-1 include a heatsink?

Yes. It includes a pin-style heatsink with a height of 4.2 mm.

3. What is the maximum data rate?

The maximum supported data rate is 16 Gb/s.

4. What type of PCB termination does it use?

It uses through-hole press-fit termination.

5. Is this cage assembly suitable for harsh environments?

Yes. It supports an operating temperature range of -55°C to 105°C.
