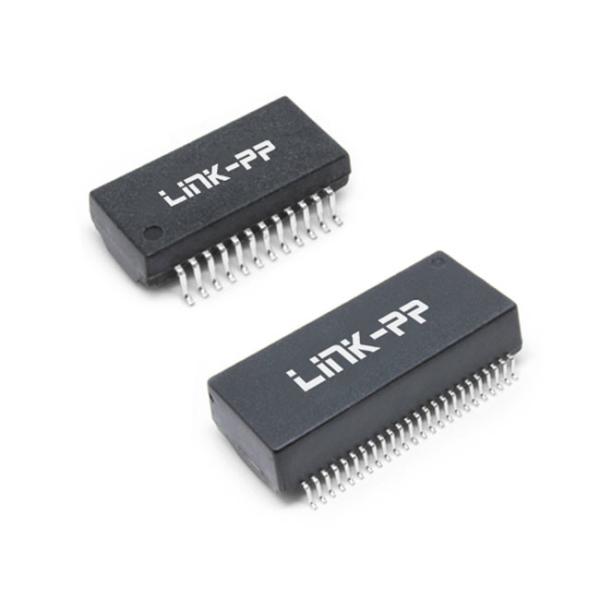

HB4011HLT Ethernet Magnetic Transformer 2.5Gigabit SMD Modules
HB4011HLT Ethernet Magnetic Transformer 2.5Gigabit SMD Modules
Specifications
Brand Name :
LINK-PP
Model Number :
HB4011HLT
Certification :
UL, Reach, RoHs, ISO19001, ISO14001
Place of Origin :
GuangDong, China
MOQ :
10pcs
Price :
$0.09-$2.00
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
6000K/Month
Delivery Time :
1-3 Weeks
Packaging Details :
Tape and Reel
Transformer Type :
LAN 2.5G Base-T
Length (mm) :
17.6
Width (mm) :
15.9
Height (mm) :
6
Isolation Voltage (V) :
1500VAC
Operating Temperature :
0℃ - +70℃
Application :
Ethernet Transformer/Choke
Transformer Grade :
Commercial Grade
Description

Features and Benefits:

  1. Single-port transformer module designed for 2.5GBASE-T Ethernet applications.
  2. Compact footprint of 17.5mm x 16.0mm, conserving valuable board space.
  3. Featuring a 1CT:1CT turns ratio and built-in 1500VAC safety insulation, the HB4011HLT delivers reliable signal transmission and robust isolation.
  4. Operates reliably in 0°C to +70°C temperature range and is compliant with Full RoHS and halogen-free, suitable for diverse environmental conditions.
  5. High Isolation and Surge option.
  6. Meet or exceed IEEE802.3bz.
  7. Compatible with all major PHYs.
  8. Reliable SMD packages support 245°C pk reflow.
  9. All components are supplied in Tape and Reel.

Specifications of 2.5G SMD Modules :

Products Overview HB4011HLT Single Port Transformer Module
Number of Ports 1
Mounting Style 24 Pin SMD
Date Rate 2.5GBASE-T
Length 17.55mm
Width 15.90mm
Height 6.00mm
Breakdown Voltage 3000Vrms (Surge DM 7KV)
Winding Configuration 2wCMIC X FM
Turns Ratio 1CT:1CT
PoE Rating N/A
Operating Temperature 0 - 70°C
Storage Temperature -20 - +125°C

Applications of HB4011HLT Ethernet Transformer:

  • Industrial sensors and automation systems
  • Network switches and routers
  • Remote access devices
  • Security cameras
  • Building sensing and control systems
  • Radio access networks (RANs)
  • Wireless access points (WAPs) and base stations

HB4011HLT Schematic:

HB4011HLT Ethernet Magnetic Transformer 2.5Gigabit SMD Modules

Packaging Details:

Tape & Reel

1. Material: Black Anti-Static polystyrene.
2.10 sprocket hole pitch cumulative tolerance ±0.20.
3. All dimensions meet ElA-481-E requirements.
4. Thickness: 0.40±0.05 mm.
5. Component load per 13" reel: 350 pcs.
