HFJV1-1G06RL 1x1 Gigabit Vertical RJ45 Connector HALO FastJack
HFJV1-1G06RL 1x1 Gigabit Vertical RJ45 Connector HALO FastJack
Specifications
Brand Name :
LINK-PP
Model Number :
HFJV1-1G06RL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
GuangDong, China
MOQ :
50/500/1000/25K
Price :
$0.09-$1.85
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3000000/Month
Delivery Time :
In Stock Ship Within 3 Days
Packaging Details :
54 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10KGS (1080 pcs) of each carton
Part No :
HFJV1-1G06RL
Mass Production :
LPJD0717DNL
Original Manufacturer :
LINK-PP
Application :
10/100/1000Base-T Ethernet
Termination :
Solder
Mount Style :
DIP / Top Entry
Description

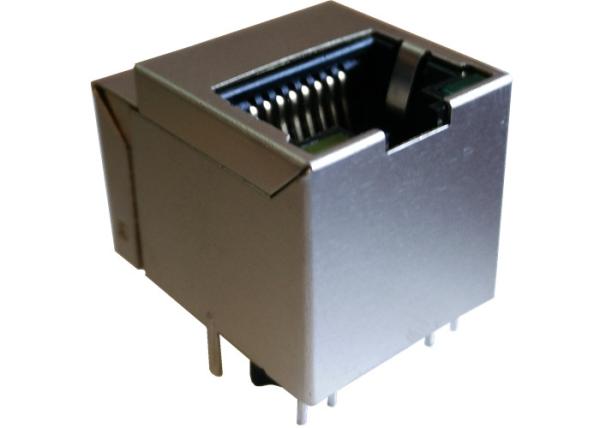

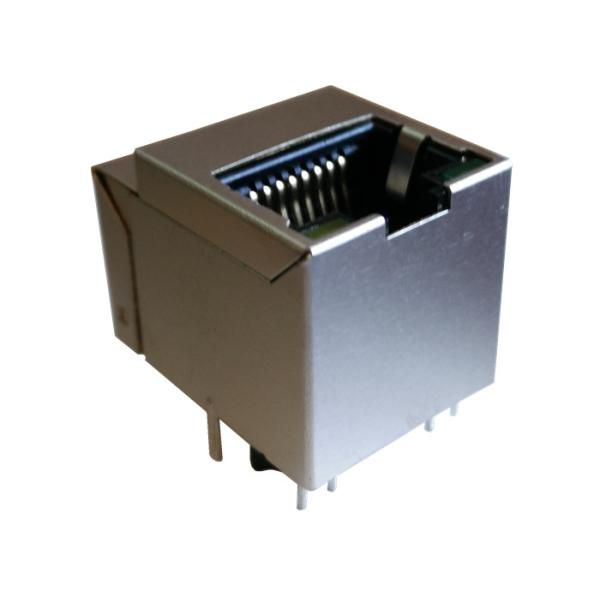

HFJV1-1G06RL Top Entry RJ45 Connector Overview

The HALO HFJV1-1G06RL is a single-port, vertical, integrated-magnetics RJ-45 jack designed for 10/100/1000 Base-T (Gigabit) Ethernet applications.


It belongs to the “FastJack™” family from HALO Electronics, targeted at board-mounted network interface design where space, signal integrity and manufacturability matter.

✅ Quick Details of HFJV1-1G06RL RJ45 Vertical Jack

  • Product Type: 1×1 Vertical RJ45 Connector with Integrated Magnetics
  • Ethernet Rating: 10/100/1000Base-T (Gigabit Ethernet)
  • Standards: IEEE 802.3 / 802.3ab compliant
  • Mounting Type: Through-Hole (THT), Vertical / Top-Entry
  • Shielding: Yes, Metal Shielded Housing
  • Integrated Magnetics: Transformer + Common-Mode Choke (Circuit B)
  • Contact Plating: 30 µin (0.76 µm) gold minimum
  • Housing Material: Thermoplastic, UL94-V0 flame-retardant
  • Contact Material: Phosphor Bronze
  • Pin Material: Brass
  • No. of Positions/Contacts: 8P8C (RJ45)
  • Operating Temperature: 0 °C to +70 °C
  • Return Loss (Typical):
    • ≥ −18 dB (1–40 MHz)
    • ≥ −14 dB (60 MHz)
    • ≥ −12 dB (80 MHz)
    • ≥ −10 dB (100 MHz)
  • OCL: 350 µH minimum @ 8 mA
  • Applications: LOM, routers, switches, industrial Ethernet, embedded devices

✅ HFJV1-1G06RL Technical Specifications

Parameter Value / Description
Ports 1 × RJ-45 (8P8C)
Orientation Vertical mount (top entry)
Mounting / Termination Through-Hole Solder (THT)
Network Speed 10/100/1000 Base-T
Compliance IEEE 802.3 (10/100/1000 Base-T)
Return Loss (minimum) –18 dB (1-40 MHz), –14 dB (60 MHz), –12 dB (80 MHz), –10 dB (100 MHz)
Height above board ~0.650″ (≈ 16.51 mm) for the 1-port version.
Contact plating 30 µin minimum gold (0.76 µm) on contact area.
Operating Temperature Range 0 °C to +70 °C (Standard Temp version)

✅ HFJV1-1G06RL HALO FastJack Circuit

HFJV1-1G06RL 1x1 Gigabit Vertical RJ45 Connector HALO FastJack

✅ HFJV1 Series Part Number

Standard Temp (0 to +70 °C) Extended Temp (–40 to +85 °C)
HFJV1-1G01RL HFJV1-E1G01RL
HFJV1-1G01-L11RL HFJV1-E1G01-L11RL
HFJV1-1G01-L12RL HFJV1-E1G01-L12RL
HFJV1-1G06RL HFJV1-E1G06RL
HFJV1-1G06-L11RL HFJV1-E1G06-L11RL
HFJV1-1G06-L12RL HFJV1-E1G06-L12RL
HFJV1-1G11RL HFJV1-E1G11RL
HFJV1-1G11-L11RL HFJV1-E1G11-L11RL
HFJV1-1G11-L12RL HFJV1-E1G11-L12RL
HFJV1-1G16RL HFJV1-E1G16RL
HFJV1-1G16-L11RL HFJV1-E1G16-L11RL
HFJV1-1G16-L12RL HFJV1-E1G16-L12RL
HFJV1-1G41RL HFJV1-E1G41RL
HFJV1-1G41-L11RL HFJV1-E1G41-L11RL
HFJV1-1G41-L12RL HFJV1-E1G41-L12RL
HFJV1-1G41-L51RL HFJV1-E1G41-L51RL
HFJV1-1G46RL HFJV1-E1G46RL
HFJV1-1G46-L11RL HFJV1-E1G46-L11RL
HFJV1-1G46-L12RL HFJV1-E1G46-L12RL
HFJV1-LTQ1-L12RL HFJV1-ELTQ1-L12RL
HFJV1-LTQ1-L14RL HFJV1-ELTQ1-L14RL
