DA4S103A4 Stacked Rj45 Connectors 2x4 Integrated Gigabit Ethernet Modular Jack
DA4S103A4 Stacked Rj45 Connectors 2x4 Integrated Gigabit Ethernet Modular Jack
Specifications
Brand Name :
LINK-PP
Model Number :
DA4S103A4
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
GuangDong, China
MOQ :
50/500/1000/60K
Price :
$1.1-$12
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
180K/Month
Delivery Time :
in Stock Ship Today
Packaging Details :
Tray
Part Number :
DA4S103A4
Connector Type :
Stacked 2x4 RJ45 Connectors
Applications :
1000 Base-T
Plating :
50u″ gold
Shield :
Yes
LED :
Left Green Right Yellow
Description

10/100/1000 Base-T RJ45 2x4 Integrated Magnetics Connector Overview:

Materials:

1. Plastic Material: Thermoplastic (UL 94V-0), Black Housing.
2. Metal Shield: Brass, 30 inches thick, Nickel.
3. Spring Wire: Phosphor bronze.
4. Solder Pin: 0.5x0.35mm, Phosphor bronze with solder Plated.
5. Durability: 750 Mating cycles Min.

Features:

  • Complies with the requirements of IEEE 802.3ab standards.

  • RJ-45 connector integrated with transformer/impedance resistor/high voltage capacitor.

  • The size is the same as the RJ-45 connector to save PCB board space.

  • Reduced EMI radiation to improve EMI performance.

  • Design for 1000BASE transmission over UTP-5 cable.

  • Compliance with ROHS requirements.

  • Operating temperature range: 0℃ to +70℃.

  • Storage temperature range: -25℃ to +85℃.

DA4S103A4 RJ45 2x4 Electrical Specifications @ 25℃

Parameter Specification
Turns Ratio (±2%) TX: 1CT : 1CT, RX: 1CT : 1CT
Insertion Loss 1–100 MHz: ≤ -1.0 dB
Return Loss 1–30 MHz: ≥ -18 dB40 MHz: ≥ -16 dB50 MHz: ≥ -14.8 dB60–80 MHz: ≥ -12.5 dB100 MHz: ≥ -10 dB
Crosstalk (NEXT) 0.5–10 MHz: ≥ -50 dB30 MHz: ≥ -40 dB50 MHz: ≥ -35 dB100 MHz: ≥ -30 dB
Open Circuit Inductance (OCL) ≥ 350 µH @ 100 KHz, 0.1 V with 8 mA DC Bias
DCMR (Differential to Common Mode Rejection) 0.3–30 MHz: ≥ -50 dB60 MHz: ≥ -45 dB100 MHz: ≥ -40 dB
Hi-Pot (Isolation Voltage)

1500 Vrms (Primary to Secondary)

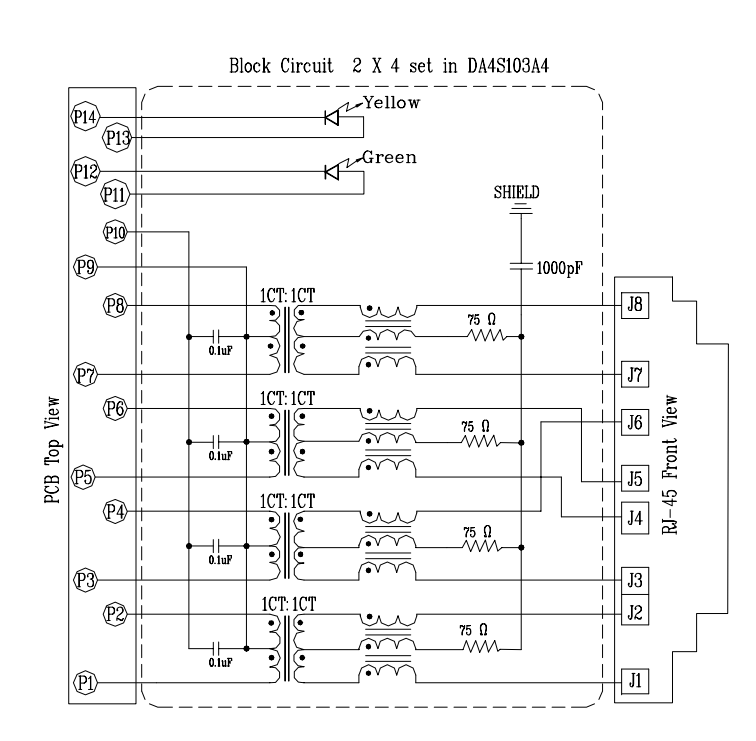

1000Base -T IMCs DA4S103A4 Datasheet:

DA4S103A4 Stacked Rj45 Connectors 2x4 Integrated Gigabit Ethernet Modular Jack

Other Replaceable List

LA1S109 LF / KLA1S109 LF DA1D102K4 KRU1S041F LF
DA4S103A4 DA6T001A3 DA4T10304
KLU1S041 LF/ LU1S041 LF DA4S103A4 KRU1S516 LF
KLU1S041A LF / LU1S041A LF DA4T103G3 KRU1S041X-43 LF
LU1S041A LF / LU1S041C LF DA1T002I3 KRU1T041-34 LF
KLU1S041X LF / LU1S041X LF DA1T101J1 KRU1T041FR-44 LF
KLU1T041 LF / DA6T001A3 DA4T103N3 DA4T10303
KLU1T516 LF / LU1T516 LF DA4T10304 KHU1S041F3 LF
KLA1S109 LF / DA4S103A4 DA6T001A3 DA4S103A4
KLA1S109-43 LF / LA1S109-43 LF DU1S201C4 KHU1S041Q4 LF
KLU1S041 LF / LU1S041 LF DU1T202A1 KHU1S041Q5 LF
KLU1S041C LF / LU1S041C LF DU1T202A3 KHU1S041F7 LF
KLU1T041 LF / DA4T103G3 DU1T202B3 KHU1S041Q6 LF
KLA1T109-43 LF / LA1T109-43 LF DU1T301A3 DA4T10304
KLA4S109 LF / LA4S109 LF DU1T301B3 HU1S041X LF
DA4T10303 DA4S103A4 DA4T103G3
