TG1G-E001NYRL is a high-performance single-port Gigabit Ethernet isolation transformer designed for 10/100/1000BASE-T Ethernet interfaces. Featuring a compact SMD-24 surface-mount package, 1CT:1CT turns ratio, 350μH OCL, and 1.5kV isolation voltage, this LAN transformer delivers excellent signal integrity, EMI suppression, and long-term reliability for industrial and commercial networking equipment.

TG1G-E001NYRL Single Port GigE Transformer Overview

The TG1G-E001NYRL is a premium-grade, single-port Gigabit Ethernet isolation transformer engineered for high-performance LAN interfaces. Designed for Surface Mount Device (SMD) integration, this robust isolation module delivers exceptional signal integrity and reliability for Gigabit and 10/100 Base-TX applications.

Built to withstand harsh environments, the TG1G-E001NYRL operates flawlessly across a wide industrial temperature range of -40°C to +85°C. With a standard 1CT:1CT turns ratio, strict RoHS compliance, and up to 1.5 kV of isolation voltage, it is the ideal networking component for telecommunications, industrial automation, and enterprise networking equipment.

Key Features & Benefits

* Gigabit Ready: Optimized for 10/100/1000 Base-TX network applications.
* Industrial Grade Reliability: Wide operating temperature range (-40°C to +85°C) ensures stable operation in extreme environments.
* Superior Signal Integrity: Minimum Open Circuit Inductance (OCL) of 350µH (at 100KHz, 0.1Vrms, 8mA DC bias) guarantees reliable data transmission and IEEE 802.3 compliance.
* High Isolation Protection: 1.5 kV isolation voltage protects sensitive ICs and equipment from electrical surges and ground loop issues.

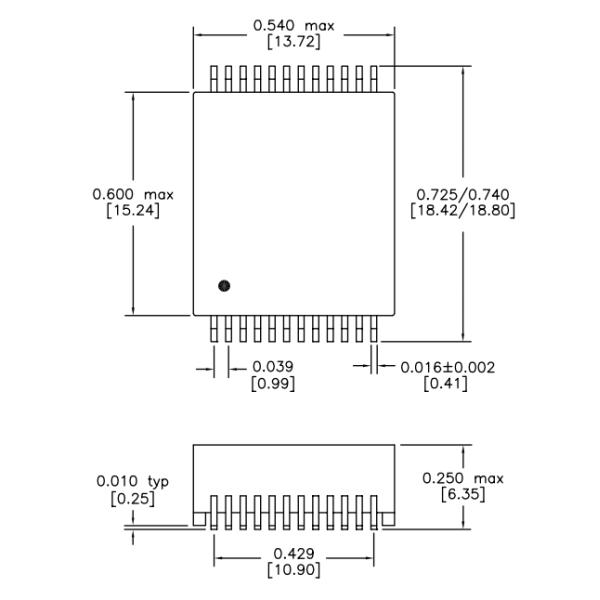

* Optimized Footprint: Compact SMD-24 package format allows for automated pick-and-place assembly, reducing manufacturing costs.
* Eco-Friendly: Fully RoHS and RoHS (7a) compliant.

Technical Specifications of TG1G-E001NYRL Gigabit Ethernet Transformer

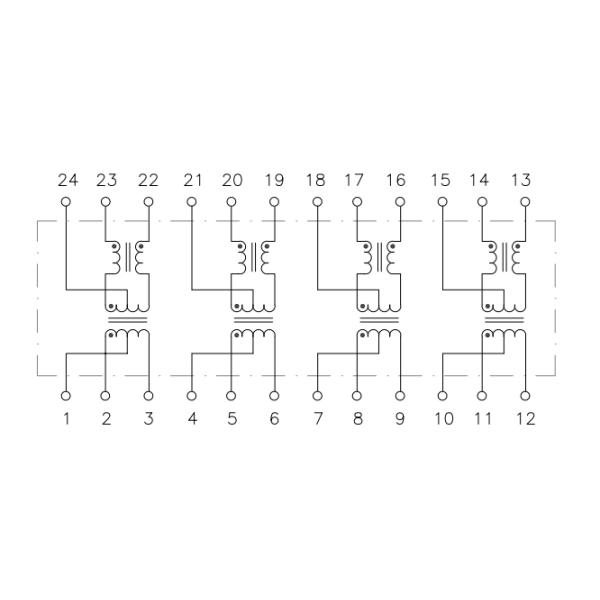

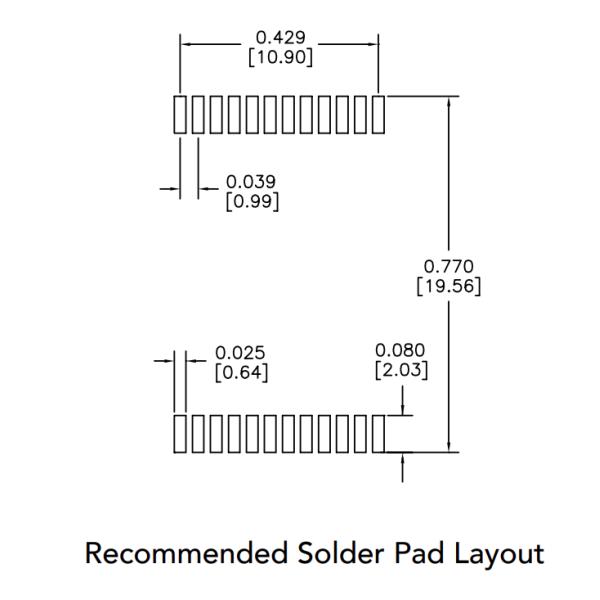

TG1G-E001NYRL SMD LAN Isolation Transformer Datasheet

Common Applications

The TG1G-E001NYRL SMD isolation module is highly versatile and suitable for a wide range of B2B and industrial applications, including:

1. Networking Equipment: Routers, switches, and network hubs.
2. Industrial IoT (IIoT): Industrial PCs, motor controls, and automated manufacturing systems.
3. Telecommunications: Broadband gateways, base stations, and edge computing devices.
4. Embedded Systems: Single-board computers and custom motherboards requiring reliable LAN isolation.

Why Choose the TG1G-E001NYRL?

When sourcing components for critical network infrastructure, minimizing packet loss and maximizing equipment lifespan is paramount. The TG1G-E001NYRL effectively filters out common-mode noise and provides robust electrical isolation, ensuring your networking hardware meets strict IEEE standards while enduring rigorous industrial environments.

Notes

• Gigabit Transformer Modules with Power over Ethernet (PoE) option.
• Compliant with IEEE 802.3 / IEEE 802.3af specifications.
• For RoHS-compliant parts, add suffix “NL”.
• RoHS “NL” peak soldering temperature rating: 260℃ ±5℃.
• 100% electrically tested to ensure performance and reliability.
