HN2436G 1000Base-T Ethernet Transformer with IEEE 802.3ab Gigabit Ethernet
HN2436G 1000Base-T Ethernet Transformer with IEEE 802.3ab Gigabit Ethernet
HN2436G 1000Base-T Ethernet Transformer with IEEE 802.3ab Gigabit Ethernet
HN2436G 1000Base-T Ethernet Transformer with IEEE 802.3ab Gigabit Ethernet
Specifications
Brand Name :
LINK-PP
Model Number :
HN2436G
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
400/2000/10K/25K
Price :
$0.06-$3.2
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3KK/Month
Delivery Time :
Stock
Packaging Details :
T&R
Model :
HN2436G
Transformer Type :
1000Base-T Magnetics Modules
Turns Ratio :
1CT : 1CT
Mounting Type :
Surface Mount
Hipot :
1500V
Mass Production :
LP82440ANL
Temperature :
-40℃ TO +85°C
Description

HN2436G 1000Base-T Magnetics Modules Electrical Specifications @ 25°C


1. Inductance OCL: 350uH Min @ 100KHz 0.2V 8mA DC BIAS
2. Leakage Inductance: 0.50uH Max @ 100KHz 0.2V
3. Interwinding Capacitance: 25PF TYP @ 100KHz 0.2V
4. DC Resistance: 0.9Ω Max
5. Turn Ratio: 1CT:1CT±5%
6. Return Loss

0.5-30 MHz: - 18dB Min
40 MHz: - 14.4 dB Min
50 MHz: - 13.1 dB Min
60-80 MHz: - 12.0 dB Min

100 MHz: - 10 dB Min

7. Insertion Loss: 1-100MHz: -1.0dB MAX
8. Cross Talk:

60 MHz: - 45dB Min

60 MHz: - 40dB Min
100 MHz: -35dB Min
9. Common Mode Rejection: 0.5-100 MHz - 20dB Min
10. Isolation HI-POT: 1500VAC 1min
11. Operating Temperature: -40℃ TO ＋85℃

NOTES:

1. Designed For Gigabit Transceivers
2. Peak Reflow Temperature Rating 250 °C
3. Magnetics, Designed For Gigabit PHY Used In Backplane.
4. Compliant With IEEE 802.3ab Standard.
5. UL Certification: File Number E484635.

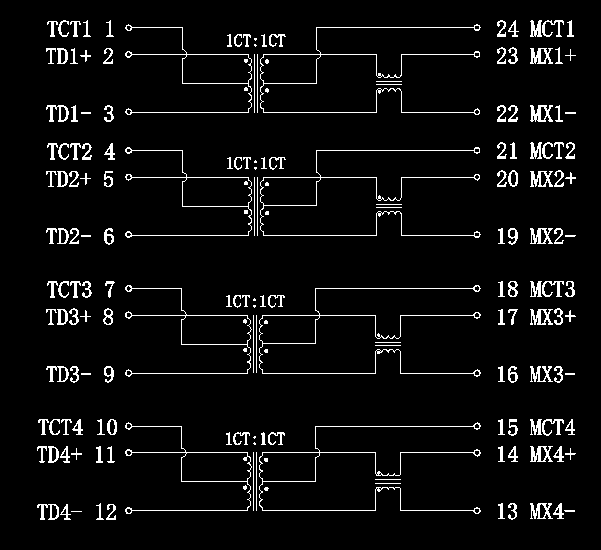

HN2436G Gigabit Transformer Datasheet:

HN2436G 1000Base-T Ethernet Transformer with IEEE 802.3ab Gigabit Ethernet

HN2436G 1000Base-T Ethernet Transformer with IEEE 802.3ab Gigabit Ethernet
