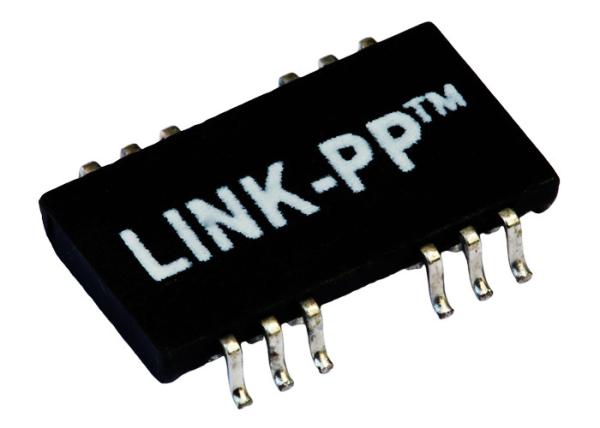

Bothhand NS0013B LF 10/100Base-T Ethernet Transformer
Bothhand NS0013B LF 10/100Base-T Ethernet Transformer
Bothhand NS0013B LF 10/100Base-T Ethernet Transformer
Bothhand NS0013B LF 10/100Base-T Ethernet Transformer
Specifications
Brand Name :
LINK-PP
Model Number :
NS0013B-LF
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
400/2000/10K/25K
Price :
$0.06-$3.2
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3KK/Month
Delivery Time :
Stock
Packaging Details :
T&R
Type :
Discrete LAN Magnetics
Bothhand P/N :
NS0013B LF
Made In China :
LINK-PP LP41604ANL
Applications :
PC Card
Data Rate :
10/100 BASE-T
Mounting :
SMT
Resources :
PDF/3D/ISG/Stp/Step/Datasheet
Description

NS0013B LF Gigabit Discrete LAN Magnetics Overview

Features:
  1. IEEE 802.3 Ethernet compatible.
  2. Low-profile package for PCMCIA (PC Card).
  3. Designed to work with leading Ethernet PHY transceivers.
  4. RoHS & Halogen Free compliant.
  5. Operating Temperature: 0°C to +70°C.
  6. Storage Temperature: -25°C to +85°C.

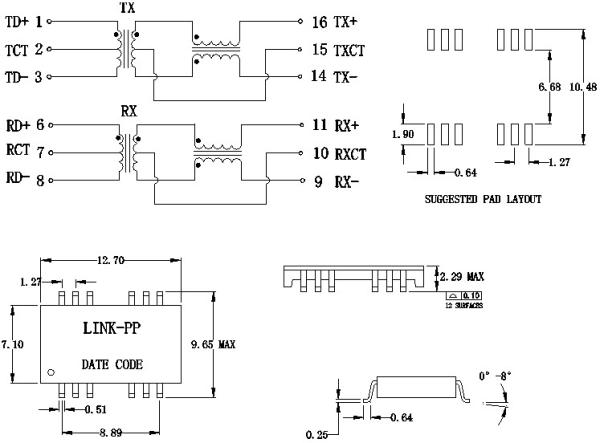

Electrical Specifications @ 25°C
Parameter
Value
Turns Ratio (±3%)
TX: 1CT:1CT, RX: 1CT:1CT
OCL (Open Circuit Inductance)
350 µH Min (@ 100KHz, 0.1V)
Leakage Inductance (L.L.)
0.5 µH Max
Winding Capacitance (Cw/w)
28 pF Max
DC Resistance (DCR)
0.9 Ω Max
Hipot Test (Isolation)
1500 Vrms
Insertion Loss (1-100MHz)
-1.1 dB Max
Return Loss (dB Min)
-16 (1-30MHz), -12 (30-60MHz), -10 (60-100MHz)
Crosstalk (dB Min)
-40 (1-30MHz), -35 (30-60MHz), -30 (60-100MHz)
Common Mode Rejection (DCMR, dB Min)
-30 (1-50MHz), -20 (50-150MHz)

NS0013B LF = LP41604ANL
Trader Part Number NS0013B LF Bothhand
Price Break Unit Price Extended Price
1-5 Free Free
10-50 1.0 >10
100-500 0.65 >65
1,000-2,500 0.45 >450
5,000 0.35 >1750
10,000 Negotiable Negotiable
50,000 Negotiable Negotiable
100,000 Negotiable Negotiable
500,000 Negotiable Negotiable
Manufacturer

LINK-PP
Made In China

LP41604ANL # LINK-PP
Documents

Datasheet
Description Gigabit Magnetics
Lead Free Status / RoHS Status Lead-free / RoHS Compliant
Quantity Available

2,000 PCS / Or 5 weeks


LINK-PP Made In China, Factory Mass Production List:

NS0013B LF 74990112121 13F-64YGD2PLNW2NL HFJ11-1G02E-L12V3RL
99751813-01 74990112121 XFATM2GA-CLGY1-2MS XFATM6CB-CLYG1-4MS
JX0011D21BNL J00-0045NL MTJ-88TX1-FSZ-PG-D1LH-M7 MIC24013-5104T-LF3
RJLD260TC1 LP41604ANL HFJ11-E2450E-L12RL NS0013B LF
RJLD-260TC1 J1B1211CFD XFATM2E-Clxu1-4MS HFJ11-1G02E-L12V3RL
NS0013B LF 6605814-2 MIC24013-5104T-LF3 LP41604ANL
JXR0-0015NL RJLBC-060TC1 HFJ11-1G02E-L12V3RL XFO656P-CLxu1-4MS
13F-64HND2NL HY911105AE NS0013B LF 24F-2011EGYD2SNWXNL
HFJ11-E2450E-RL LP41604ANL HFJ11-E2450E-L11RL NS0013B LF
SJTAB-40LB02-L RJLB-001TC1 13F-64GYDPNS2NL XFAMT6SA-CLGY1-4MS
TG111-HPE3NZRL NS0013B LF HFJ11-1G02E-L12V3RL 24G-66JGYDPLZ2NL
74990112121 74990112121 TG111-HPE3NZRL HFJ11-1G02E-L12V3RL
