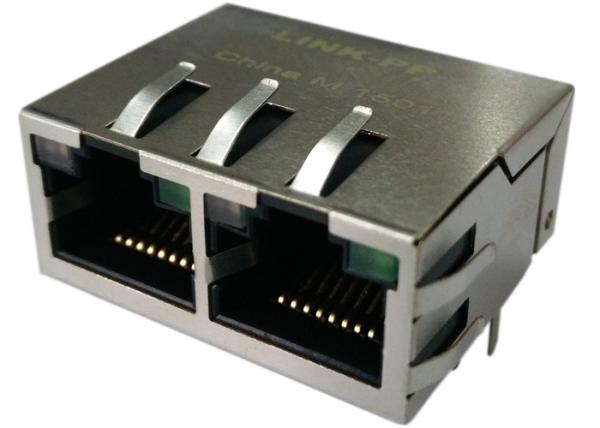

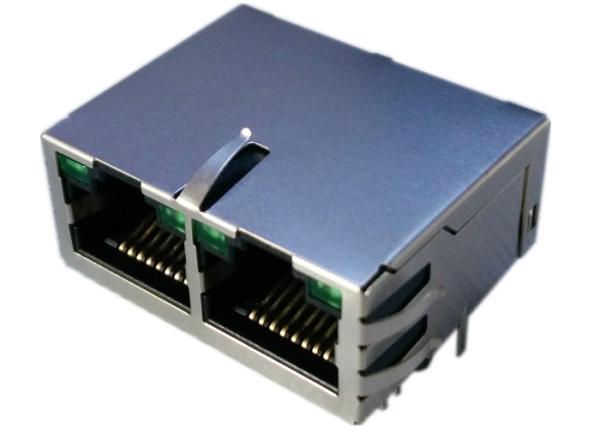

1x2 Rj45 1-6610005-5 Dual Port LPJG28831A115NL Magnetics Gigabit Equivalent
1x2 Rj45 1-6610005-5 Dual Port LPJG28831A115NL Magnetics Gigabit Equivalent
1x2 Rj45 1-6610005-5 Dual Port LPJG28831A115NL Magnetics Gigabit Equivalent
1x2 Rj45 1-6610005-5 Dual Port LPJG28831A115NL Magnetics Gigabit Equivalent
1x2 Rj45 1-6610005-5 Dual Port LPJG28831A115NL Magnetics Gigabit Equivalent
1x2 Rj45 1-6610005-5 Dual Port LPJG28831A115NL Magnetics Gigabit Equivalent
1x2 Rj45 1-6610005-5 Dual Port LPJG28831A115NL Magnetics Gigabit Equivalent
1x2 Rj45 1-6610005-5 Dual Port LPJG28831A115NL Magnetics Gigabit Equivalent
Specifications
Brand Name :
LINK-PP
Model Number :
1-6610005-5
Certification :
ISO9001,SGS,UL,CE,REACH163
Place of Origin :
GuangDong, China
MOQ :
50/500/1000/25K
Price :
$0.11-$12
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
208K/Month
Delivery Time :
Stock
Packaging Details :
Tray
Midcom PN :
1-6610005-5
Made In China :
LPJG28831A115NL
Application :
Fiber network switch
Shield :
Shielded W/LEDs
Port :
Dual
Hipot :
1500V
Description

1x2 Rj45 1-6610005-5 Dual Port LPJG28831A115NL Magnetics Gigabit Equivalent

LINK-PP Rj45 LPJG28831A115NL Cross 1-6610005-5

Specification

1-6610005-5

Price Break

Unit Price

Extended Price

1-5

A

-

10-50

B

-

100-500

C-1

-

1,000-2,500

Supportive

-

5,000

Dynamic

Dynamic

10,000

Dynamic

Dynamic

50,000

Negotiable

Negotiable

100,000

Negotiable

Negotiable

500,000

Negotiable

Negotiable

Equivalent Part

LPJG28831A115NL

Manufacturer

LINK-PP China

Description

Gigabit Rj45 Jack Double ports

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

2,000 PCS or 4 weeks

1-6610005-5 Electrical Specifications @25℃
1.OCL: 350uH MIN
@100KHz,0.1V,8mA DC BIAS
2.Turns Ratios: 1CT∶1
3.Insertion Loss:
0.5～100MHz:-1.1dB MAX
4.Return Loss:
0.5～40MHz:-18dB MIN
40.1-100MHz:-12-20LOG(f/80)dB MIN.
5.Crosstalk:
0.5～40MHz:-35dB MIN
40.1-100MHz:-33-20LOG(f/50)dB MIN.
6.Common Mode Rejection Ratio:
0.5～100MHz:-30dB MIN
7.Hipot Test: 1500Vrms MIN
8.Operating Temperature: 0℃ TO +70℃.		 1x2 Rj45 1-6610005-5 Dual Port LPJG28831A115NL Magnetics Gigabit Equivalent

1x2 Rj45 1-6610005-5 Dual Port LPJG28831A115NL Magnetics Gigabit Equivalent
