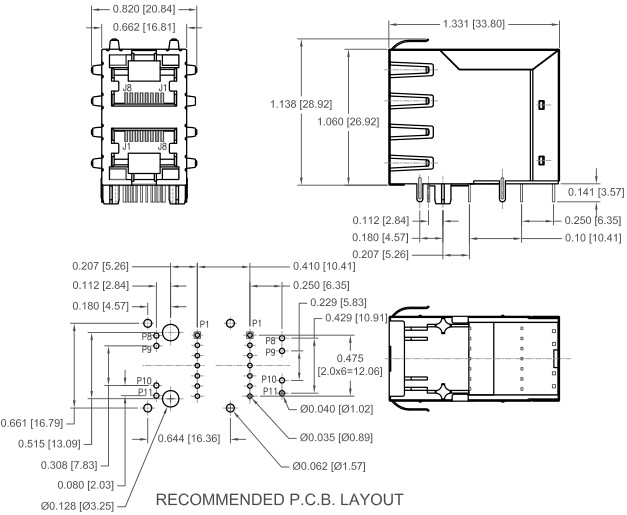

A40-216-263-900 Stacked 2x1 Rj45 Right Angle Transformer 10/100BT With LED
A40-216-263-900 Stacked 2x1 Rj45 Right Angle Transformer 10/100BT With LED
A40-216-263-900 Stacked 2x1 Rj45 Right Angle Transformer 10/100BT With LED
A40-216-263-900 Stacked 2x1 Rj45 Right Angle Transformer 10/100BT With LED
Specifications
Brand Name :
LINK-PP
Model Number :
A40-216-263-900
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
GuangDong, China
MOQ :
50/500/1000/60K
Price :
$0.11-$24
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
180K/Month
Delivery Time :
Stock
Packaging Details :
Tray
Midcom PN :
A40-216-263-900
Made In China :
SM-LPJ27003-9A4NL
Application :
Industry Workgroup Switches
Shield :
Shielded EMI
Port :
4 Ports Pcb Jack Side Entry
Hipot :
1500V
Description

A40-216-263-900 Stacked 2x1 Rj45 Right Angle Transformer 10/100BT With LED

A40-216-263-900

Trader Part Number

A40-216-263-900

Price Break

Unit Price

Extended Price

1-5

A

-

10-50

B

-

100-500

C-1

-

1,000-2,500

Supportive

-

5,000

Dynamic

Dynamic

10,000

Dynamic

Dynamic

50,000

Negotiable

Negotiable

100,000

Negotiable

Negotiable

500,000

Negotiable

Negotiable

Made in China

SM-LPJ27003-9A4NL

Manufacturer

LINK-PP China

Description

Rj45 Stacked Connectors

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

2,000 PCS or 4 weeks
A40-216-663-900 A40-216-363-900 A40-216-263-900 A40-216-963-900

A40-216-263-900 Electrical Specification @25℃

1.Turns Ratio(±2%):
(P1-P3):(J1-J2)=1:1
(P4-P6):(J3-J6)=1:1
2.Inductance: 350uH Min
@0.1V,0.1MHz,8mA DC Bias
3.Insertion Loss:
0.1-100MHz:-1.2dB Max
4.Return Loss(dB Min):
1-30MHz:-18
30-80MHz:-12
5.Crosstalk(dB Typ):
1-100MHz:-40
6.Common to Mode Rejection:
30-100MHz:-35dB Min
7.Hipot: 1500Vrms
8.Operating Temperature: -40℃～+85℃.

A40-216-263-900 Stacked 2x1 Rj45 Right Angle Transformer 10/100BT With LED
