Specifications
Brand Name :
LINK-PP
Model Number :
HFJV1-2450-L12RL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
GuangDong, China
MOQ :
50/500/1000/25K
Price :
$0.09-$1.85
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3000000/Month
Delivery Time :
Stock
Packaging Details :
package:60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
part Number :
HFJV1-2450-L12RL
Made In China :
SM-LPJD1011BDNL
Cross&Datasheet :
LPJD1011BDNL
Interface :
10/100Mbps
Project Application :
NETWORK INTERFACE CARD
Samples :
Free Active
Description

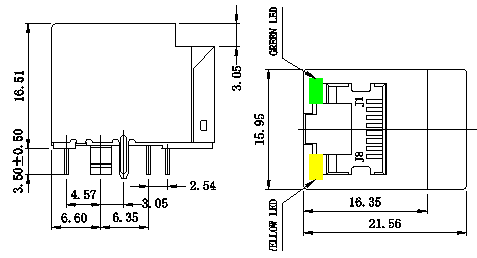

Vertical Step File RJ45 Jack HFJV1-2450-L12RL 10/100Base-T LPJD1011BDNL

Part Number
Made In China
Manufacturer
Description
HFJV1-2450-L12RL
SM-LPJD1011BDNL
LINK-PP
Vertical Step File RJ45 Jack HFJV1-2450-L12RL 10 / 100Base-T LPJD1011BDNL
Series
Connector Type
Applications
Mounting Type
Connectors, Interconnects
LINK-PP Rj45
10 Mbps
Thru-Hole
Orientation
Termination
LED Color
Shielding
180° Angle (Vertical)
Solder
Yellow/Green
Shielded
ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
-1.1dB MAX @ 0.1～100MHz
4.Return Loss:
-18dB MIN @ 0.5～30MHz
-15.5dB MIN @ 40MHz
-13.6dB MIN @ 50MHz
-12dB MIN @ 60～80MHz
5.Cross talk:
-40dB TYP @ 0.1～100MHz
6.Common Mode Rejection:
-50dB TYP @ 0.1～30MHz
-40dB TYP @ 30～60MHz
-35dB TYP @ 60～100MHz
7.Hipot Test: 1500Vrms MIN
8.Operating Temperature: 0℃～70℃.
HFJV1-2450RL
HFJV1-2450-L12RL
HFJV1-E2450RL
HFJV1-E2450-L12RL
HFJV1-2450-L11RL
HFJV1-2450-L15RL
HFJV1-E2450-L11RL
LPJD0713B31NL
LPJD0835BDNL
HFJV1-E2450-L55RL
HFJV1-E2450-L78RL
LPJD0773BFNL
LPJD1011BDNL
LPJD0025DNL
LPJD0011BENL
LPJD0813BENL
LPJD1011BENL
LPJD0055BANL
LPJD0011BGNL
LPJD0820BENL
LPJD1011BFNL
LPJD0093DNL
LPJD0011DNL
LPJD0834BDNL
LPJD1011DNL
LPJD0101BENL
LPJD0012BENL
LPJD4012BENL
LPJD4011BENL
LPJD0110BANL
LPJD0012BHNL
LPJD4012DNL
HFJV1-2450-L78RL
LPJD0115BENL
LPJD0012DNL
LPJD4013BGNL
LPJD4140BENL
LPJD0115BHNL
LPJD0012NENL
LPJD4056BDNL
LPJD4709BENL
LPJD0152BENL
LPJD0012NFNL
LPJD4122BDNL
LPJD4835BDNL
LPJD0213NFNL
LPJD0025BENL
HFJV1-2450-L55RL
HFJV1-E2450-L15RL
LPJD0711BDNL
HFJV1-2450-L21RL
HFJV1-2450-L77RL
HFJV1-E2450-L17RL
LPJD0711BENL
LPJD5013BGNL
HFVJ1-E2450-L77RL
HFJV1-E2450-L21RL
HFJV1-2450-L17RL
LPJD6049BENL
HFJT1-1075RL

Vertical Step File RJ45 Jack HFJV1-2450-L12RL 10/100Base-T LPJD1011BDNL
