10 Base - T Lan Discrete Transformer Cross 74092010 / 000-5408-37R-LF3 Filter
10 Base - T Lan Discrete Transformer Cross 74092010 / 000-5408-37R-LF3 Filter
10 Base - T Lan Discrete Transformer Cross 74092010 / 000-5408-37R-LF3 Filter
10 Base - T Lan Discrete Transformer Cross 74092010 / 000-5408-37R-LF3 Filter
10 Base - T Lan Discrete Transformer Cross 74092010 / 000-5408-37R-LF3 Filter
10 Base - T Lan Discrete Transformer Cross 74092010 / 000-5408-37R-LF3 Filter
Specifications
Brand Name :
LINK-PP
Model Number :
000-5408-37R-LF3 / 74092010
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
400/2000/10K/25K
Price :
$0.06-$3.2
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3KK/Month
Delivery Time :
Stock
Packaging Details :
T&R
Specification :
000-5408-37R-LF3 / 74092010
Speed :
10 BASE-T
Number of Ports :
Single
Application :
Lan Ethernet(NoN PoE)
Temperature :
-40℃ TO +85℃
Archivi Disponibil :
PDF/3D/ISG/Stp/Step/Datasheet
Status :
Obsolete
Description

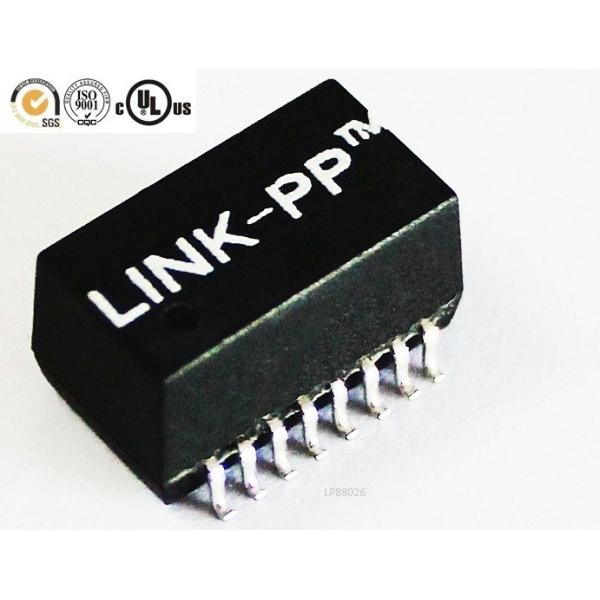

Discrete Transformer Cross 74092010 / 000-5408-37R-LF3 Filter 10Base-T

1.Telecom transformer modules

2.ColiStructure: Toroidal
3.10 base-t transformer for Ethernet Modules
4.SMD,16 pins
5.Applications:Used for networking and communication equipments
such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,
Development Board 74092010 Discrete Transformer 10Base-T 000-5408-37R-LF3 I/O cards
Application
LAN ETHERNET(PoE&NON PoE)
AutomDX
YES
Comment
RoHS Compliant LP88026ANLSeries
Configuration RX
T,C
Configuration TX
T,C

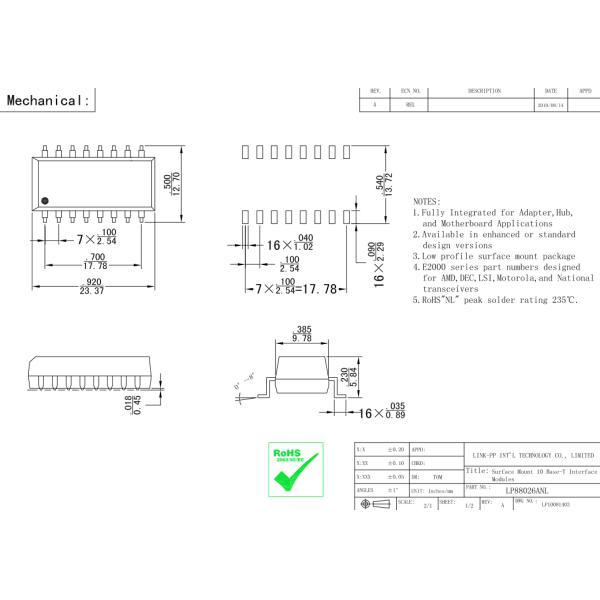

Construction
TRANSFER MOLD
Cores Per Port
4
Number of Ports
 Single
Package
SMT
Package Height (Inches)
0.225 or other
Package Height (mm)
5.715 or other
Package Length (Inches)
1.12 or other
Package Length (mm)
28.448 or other
Package Width (Inches)
0.63 or other
Package Width (mm)
16.002 or other
RoHS Compliant
YES-RoHS-6
Speed
10/100 BASE-TX Or Gigabit
Temperature
0 TO 70/-40 To +85
Turns Ratio RX
1CT:1CT Or Other Available
Turns Ratio TX
1CT:1CT Or Other Available
Main P/N
LP1102NL, etc

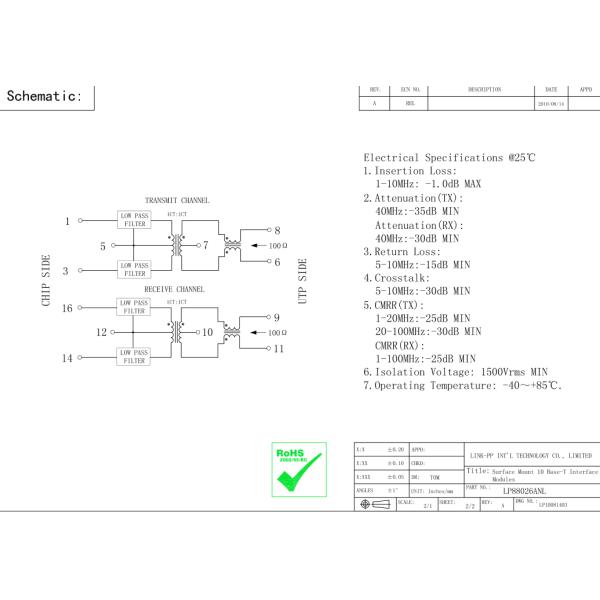

Electrical Specifications
Turns Ratio
50KHz, 0.5V
Chip side
Line side=1CT: 1CT+_2%
Inductance(Ls)
100KHz, 0.1V, 12mA DC Bias:
Chip side
350uH Min
Insertion Loss
1-100MHz: -1.4dB Max
Return Loss
1-30MHz: -16dB Min
40MHz: -14.4dB Min
50MHz: -13.1dB Min
60-80MHz: -12dB Min
100MHz: -10dB Min
Differential to Common Mode Rejection:
30MHz: -45dB Min
60MHz: -40dB Min
100MHz: -35dB Min
Crosstalk
30MHz: -40dB Min
60MHz: -35dB Min
100MHz: -30dB Min
Hi-Pot
1500Vrms Min
Related Part No
We can Also Offer These Part No Below:
P25-156-P9W9
LPJu5202b53nl
101110F9017M440ZA
LPJ0025AGNL
8188P-B-1
LPJE651XBHNL
000-5408-37R-LF3 ( 74092010 )
LP88026
000-7090-37R-LF1
LP1188NLE
000-7093-37R-LF1
LP5007ANLE
000-7365-30R-LF1 ( 749020020 )
LP5014ANLE
020181MHAM4M408ZA
LPJU4202A64NL
0810-1X1T-01
LPJ2012KONL
0810-1X1T-03
LPJ2026KONL
0810-1x1T-03-F
LPJ2026KONL
0810-1X1T-06
JH8087-6A57R
0810-1X1T-06
LPJ2011KONL
0810-1X4T-06-F
JH48087-6A57R
0811-2X4R-28-F
LPJ47212CNL
0811-2X4R-79-F
JH7434FER
10 Base - T Lan Discrete Transformer Cross 74092010 / 000-5408-37R-LF3 Filter
10 Base - T Lan Discrete Transformer Cross 74092010 / 000-5408-37R-LF3 Filter

Discrete Transformer Cross 74092010 / 000-5408-37R-LF3 Filter 10Base-T
