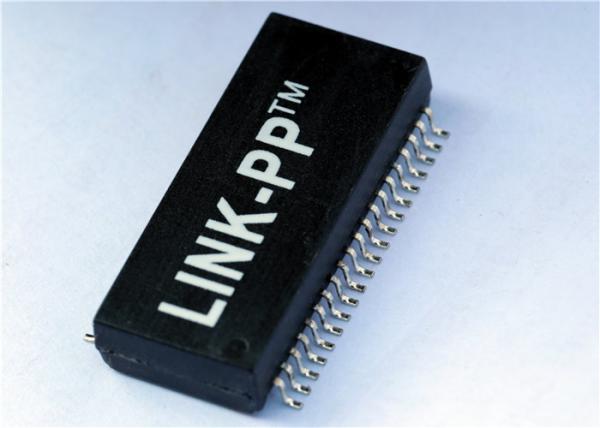

H1027NL 10/100BASE-TX DUAL PORT Magnetic Transformer H1028NLT
H1027NL 10/100BASE-TX DUAL PORT Magnetic Transformer H1028NLT
H1027NL 10/100BASE-TX DUAL PORT Magnetic Transformer H1028NLT
H1027NL 10/100BASE-TX DUAL PORT Magnetic Transformer H1028NLT
H1027NL 10/100BASE-TX DUAL PORT Magnetic Transformer H1028NLT
H1027NL 10/100BASE-TX DUAL PORT Magnetic Transformer H1028NLT
Specifications
Brand Name :
LINK-PP
Model Number :
H1027NL
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
400/2000/10K/25K
Price :
$0.06-$3.2
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3KK/Month
Delivery Time :
Stock
Packaging Details :
T&R
Specifications :
H1027NL
P/N :
LP11XXNL
Measure :
28.58mm X 16.26mm X 5.84mm
Mounting :
SMT
Ethernet :
2 Port 10/100Mbps
Samples :
Free
Archivi Disponibili :
PDF/3D/ISG/Stp/Step/Datasheet
Description
H1027NL 10/100BASE-TX DUAL PORT Magnetic Transformer H1028NLT

Audio Transformers / Signal Transformers 10/100Base-TX SMD 2-Port

10/100BASE-TX DUAL PORT TRANSFORMER MODULES
For Use with Transceivers Requiring 1:1 Transmit and Receive Turns Ratios

10/100BASE-TX DUAL PORT TRANSFORMER MODULES For Use with Transceivers Requiring 1:1 Transmit and Receive Turns Ratios

Mfr Package Description ROHS COMPLIANT
REACH Compliant Yes
EU RoHS Compliant Yes
Status Alternated by LINK-PP
Transformer Type DATACOM TRANSFORMER
Application 10/100 BASE-TX
Isolation Voltage 1500.0 V
Manufacturer Series H1027NL , H1028NLT
Mounting Feature SURFACE MOUNT
Number of Functions 2
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Packing Method TAPE & REEL; TUBE
Physical Dimension 28.58mm X 16.26mm X 5.84mm
Primary Inductance 350.0 µH
Terminal Finish MATTE TIN
Turns Ratio (Np:Ns) 1:1; 1:1; 1:1; 1:1
Height 5.84 mm
Length 28.58 mm
Width 16.26 mm
Additional Feature HEIGHT AND BREADTH DIMENSIONS INCLUDE TERMINALS ALSO

H1028NLT Equivalent Cross

H1027NL Compatible Replacement Part

H1027NLT Equivalent Alternative

H12H1028NLT 44NL Equivalent Alternated part
