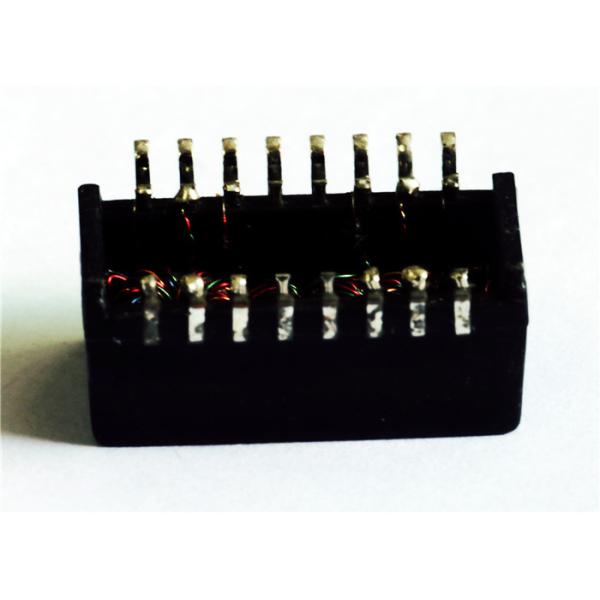

H1112NL / H1112NLT Compatible Lan Isolation Transformer 350µH Inductance
H1112NL / H1112NLT Compatible Lan Isolation Transformer 350µH Inductance
H1112NL / H1112NLT Compatible Lan Isolation Transformer 350µH Inductance
H1112NL / H1112NLT Compatible Lan Isolation Transformer 350µH Inductance
H1112NL / H1112NLT Compatible Lan Isolation Transformer 350µH Inductance
H1112NL / H1112NLT Compatible Lan Isolation Transformer 350µH Inductance
Specifications
Brand Name :
LINK-PP
Model Number :
H1112NLT / H1126NLT
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
400/2000/10K/25K
Price :
$0.06-$3.2
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3KK/Month
Delivery Time :
Stock
Packaging Details :
T&R
Specifications :
H1126NLT
Inductance :
350µH
Turns Ratio :
1 : 1 or 1CT: 1.41CT
Mounting Type :
Surface Mount
Dimension :
14.81 mm x 14.73 mm x 4.88mm
Archivi Disponibili :
PDF/3D/ISG/Stp/Step/Datasheet
Description
Cross H1112NLT ,H1126NLT 10/100Base-TX Single Port Transformer Modules
roduct Category: Audio Transformers / Signal Transformers
Manufacturer: Pulse
RoHS: Details
Specifications H1112 , H1126
Termination Style: SMD/SMT
Frequency Range: 100 kHz to 100 MHz
Isolation Voltage: 1.5 kV
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Number of Channels: Single
Product: LAN
Type: Module
Application: 100Base-TX
Length: 14.81 mm
Width: 14.73 mm
Height: 4.88 mm
Packaging: Tube
Brand: Pulse
Product Type: Transformers
Shielding: Unshielded

Audio Transformers / Signal Transformers 100BaseTX SMD NonPoE 1-Port
