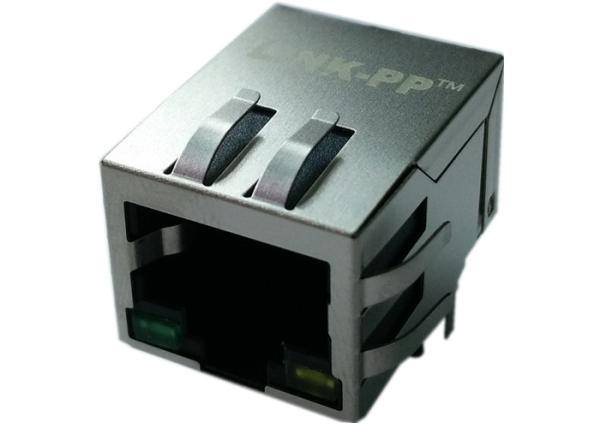

LPJ0017GENL Cross HR921157C Integrated RJ45 Connector With LED
LPJ0017GENL Cross HR921157C Integrated RJ45 Connector With LED
LPJ0017GENL Cross HR921157C Integrated RJ45 Connector With LED
LPJ0017GENL Cross HR921157C Integrated RJ45 Connector With LED
Specifications
Brand Name :
LINK-PP
Model Number :
HR921157C
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000/25K
Price :
$0.05-$1.28
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4200K-PCS/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
Compliance :
Meets IEEE802.3 specification
LED :
Left: Green, Right: Yellow
Hipot Test :
1500Vrms
Inductance OCL :
350μH MIN
Turn Ratio :
1CT:1CT(±2%)
Operating Temperature Range :
0°C TO 70°C
Description

Category Specification
LED Specifications
LED Configuration Dual (Left: Green, Right: Yellow)
Emitting Color Green: 565nmYellow: 585nm
Forward Voltage (VF) 1.8–2.8V @ IF = 20mA (Both Colors)
Reverse Current (IR) Max 10μA @ VR = 5V (Both Colors)
Mechanical Specifications
Dimensions (mm) Width: 15.93Height: 13.80Depth: 21.25
PCB Layout 2.54mm Pitch
Mounting Type Through-Hole (THT)
Orientation Front Entry
Material Specifications
Housing Thermoplastic PBT + 30% Glass Fiber (UL94V-0)
Contact Phosphor Bronze C5210R-EH, Thickness = 0.35mm
Pins Brass C2680R-H, Thickness = 0.35mm
Shield SUS 201-1/2H, Thickness = 0.2mm
Contact Plating Gold 6 Micro-Inches Min. in Contact Area
Soldering Temperature Max 265°C for 5 Seconds (Wave Soldering)
Compliance
Environmental Compliance RoHS Compliant
Standards Compliance Meets IEEE802.3 Specification
Electrical Specifications (@25°C)
Turn Ratio (±2%) TX = 1CT:1CT, RX = 1CT:1CT
Inductance OCL 350μH Min @ 100MHz / 0.1V, 8mA DC Bias
Insertion Loss -1.0dB Max (0.3–100MHz)
Return Loss (dB Min @100Ω) 1–30MHz: -18, 40MHz: -16, 50MHz: -14, 60–80MHz: -12
Crosstalk (dB Min) 30MHz: -45, 60MHz: -40, 100MHz: -35
Common Mode Rejection (dB Min) 30MHz: -35, 60MHz: -30, 100MHz: -25
Hipot Test 1500Vrms
Operating Temperature Range 0°C to +70°C

Applications

The LPJ0017GENL is specifically designed for applications requiring 10/100 Base-T Ethernet connectivity, including:

  1. SOHO (Small Office/Home Office) networking equipment, including ADSL modems
  2. LAN-on-Motherboard (LOM) implementations
  3. Network hubs and switches
  4. Industrial control systems with Ethernet connectivity
  5. IoT gateways and connected devices
  6. Point-of-sale systems and kiosks
  7. Security and surveillance equipment

The integrated magnetics design simplifies implementation in these applications by eliminating the need for separate transformer components, reducing component count, assembly complexity, and potential points of failure.
