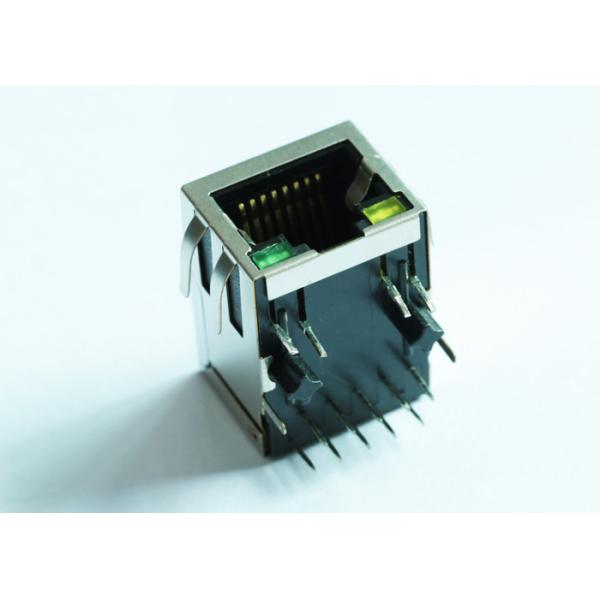

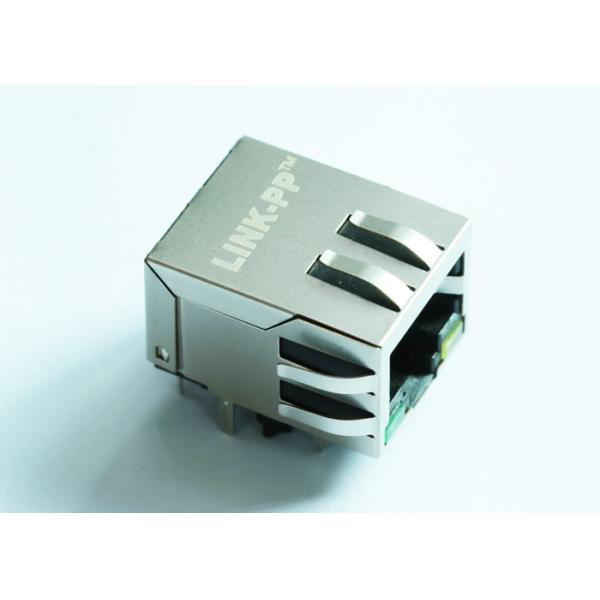

ARJ11E-MBSC-A-B-GL2 PCB Mounting RJ45 Modular Jack Tab-Down W/LED EMI Fingers
ARJ11E-MBSC-A-B-GL2 PCB Mounting RJ45 Modular Jack Tab-Down W/LED EMI Fingers
ARJ11E-MBSC-A-B-GL2 PCB Mounting RJ45 Modular Jack Tab-Down W/LED EMI Fingers
ARJ11E-MBSC-A-B-GL2 PCB Mounting RJ45 Modular Jack Tab-Down W/LED EMI Fingers
Specifications
Brand Name :
LINK-PP
Model Number :
ARJ11E-MBSC-A-B-GL2
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000/25K
Price :
$0.05-$1.28
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4200K-PCS/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
Customer PN :
ARJ11E-MBSC-A-B-GL2
Made In China :
LPJxxxNL
Design Flexible :
YES
Samples :
1-5 Free Available
EMI Fingers :
Yes
Latch :
Tab Down
Description
ARJ11E-MBSC-A-B-GL2 PCB Mounting RJ45 Modular Jack Tab-Down W/LED EMI Fingers

Designing Model ARJ11E-MBSC-A-B-GL2 ARJ11E-MBSC-A-B-GL2 PCB Mounting RJ45 Modular Jack Tab-Down W/LED EMI Fingers
Cores per Port 8
LED Option GREEN/YELLOW
Latch TAB DOWN
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm)
Package Length (mm)
Package Width (mm)
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

FEATURES:

Available with or without LED

Suitable CAT 5 & 6 cable and UTP

Comply IEEE 802.3ab

LAN Magnetic with RJ45

Suitable for RoHS compliant reflow

APPLICATIONS:

1000 Base-TX LAN

NIC, LoM and PC

STANDARD SPECIFICATIONS at 25℃

Operating temperature range: 0ºC to +70ºC

Storage temperature range: -40ºC to+85ºC

ARJ11E-MBSC-A-B-GL2 PCB Mounting RJ45 Modular Jack Tab-Down W/LED EMI Fingers
