ARJ11B-MASBD-LU2 RJ45 Single Port 1 x 10/100 Mbit Ethernet PCB Mounting Rj45
ARJ11B-MASBD-LU2 RJ45 Single Port 1 x 10/100 Mbit Ethernet PCB Mounting Rj45
Specifications
Brand Name :
LINK-PP
Model Number :
ARJ11B-MASBD-LU2
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
50/500/1000/25K
Price :
$0.09-$1.85
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
450000-520000/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
Specification :
ARJ11B-MASBD-LU2
Part No :
LPJXXXXNL
Ethernet :
1x10/100Mbps
Indicator :
Without
Mounting :
Side Entry, Shield
Samples :
Available Free
Description
ARJ11B-MASBD-LU2 RJ45 Single Port 1 x 10/100 Mbit Ethernet PCB Mounting Rj45
  • 1x Fast Ethernet ( 10/100Base )
  • Equivalent Pin to Pin with ARJ11B-MASBD-LU2
  • Without LED Indicator 1x 10/100Mbps Ethernet
  • 350uH min OCL at 8mA DC Bias
  • Full Temp Range , 100% Electrical Testing
  • 1500Vrms Hi-Pot

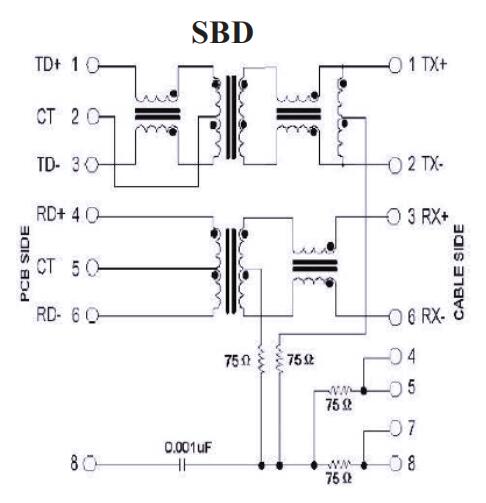

Turn Ratio(±2%): TX=1CT:1CT RX=1CT:CT ARJ11B-MASBD-LU2 RJ45 Single Port 1 x 10/100 Mbit Ethernet PCB Mounting Rj45
EMI Fingers YES
Insertion Loss -1.0dB MAX @ 0.3-100MHz
Return Loss -18dB MIN @ 1-30MHz
-16dB MIN @ 40MHz
-14dB MIN @ 50MHz
-12dB MIN @ 60-80MHz
Cross talk -45dB MIN @ 30MHz
-40dB MIN @ 60MHz
-35dB MIN @ 100MHz
Common Mode Rejection -35dB MIN @ 30MHz
-30dB MIN @ 60MHz
-25dB MIN @ 100MHz
Hipot Test 1500Vrms MIN
Part Number ARJ11B-MASBD-LU2

Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem, Flash Memory Cards, DSP Boards, Fibre Channel Products, Panel Computers, Matrix Switching Systems
