Specifications
Brand Name :
LINK-PP
Model Number :
XMH-9771-8813-S3L6T1
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000/25K
Price :
$0.05-$1.28
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4200K-PCS/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
Technical :
XMH-9771-8813-S3L6T1
P/N :
LPJK0071AONL
Ethernet :
1x 10/100/1000Base
Samples :
Free
LED :
Orange,Green/Yellow
Latch :
Tab Up
Description
XMH-9771-8813-S3L6T1 Gigabit RJ45 Modular Jack With LEDs LPJK0071AONL
  • 1X1 Tab-up1000 Base-T
  • Through hole RJ45 modular jack
  • 32.50mm length RJ45 Magjack
XMH-9771-8813-S3L6T1 Gigabit RJ45 Modular Jack With LEDs LPJK0071AONL
LINK-PP Part Number LPJK0071AONL
X Multiple Part Number XMH-9771-8813-S3L6T1
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option ORANGE&GREEN/YELLOW
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST

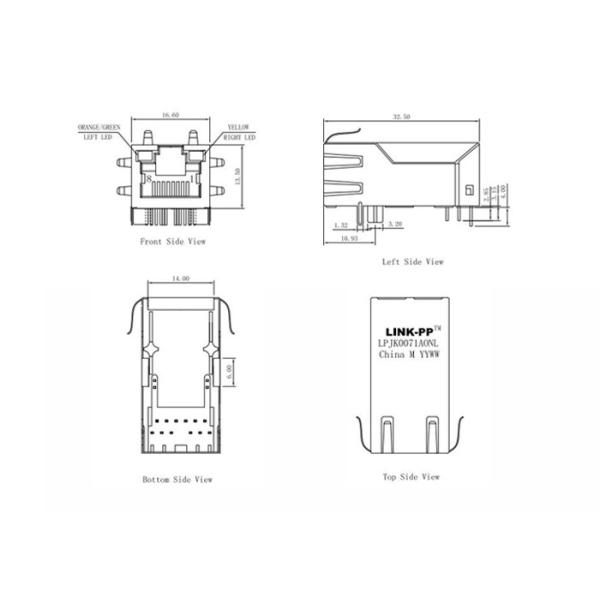

Package Height (Inches) 0.531
Package Height (mm) 13.50
Package Length (Inches) 1.280
Package Length (mm) 32.50
Package Width (Inches) 0.654
Package Width (mm) 16.60
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT OR WITH
Speed 1000 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
Competitive Advantage:
2600 staff,
100% test
Flexible delivery time
