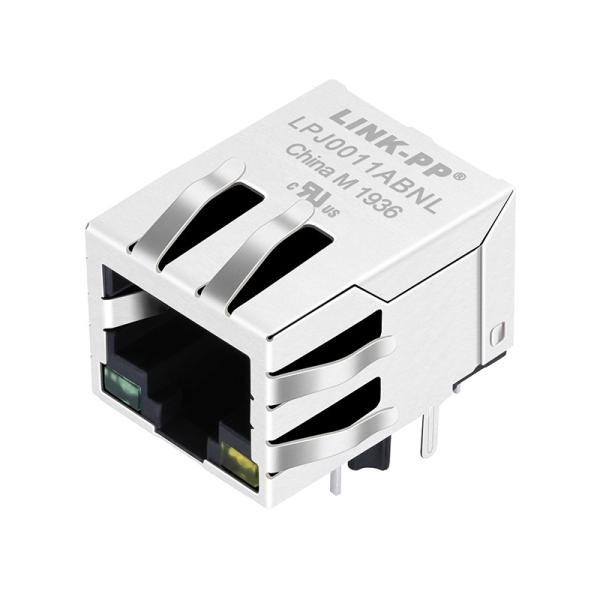

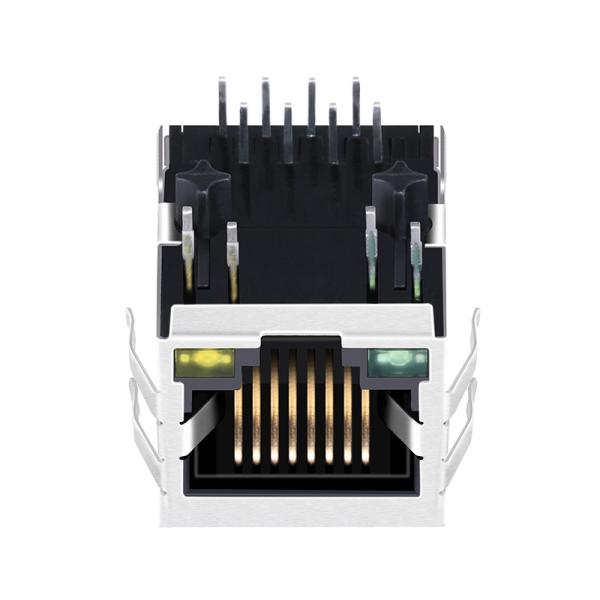

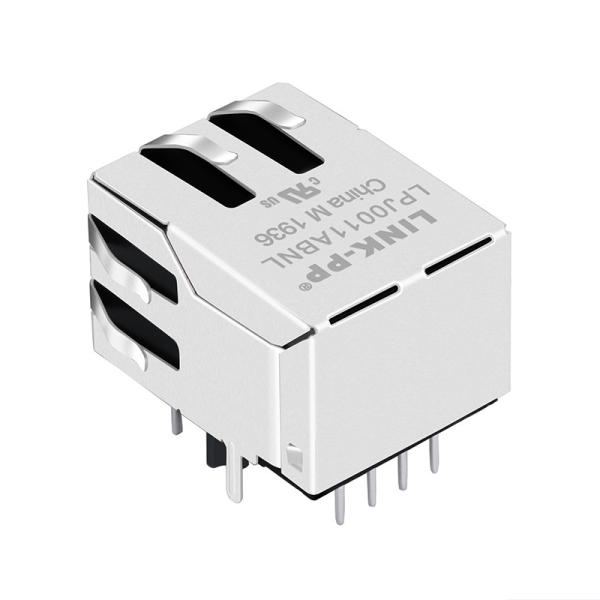

J00-0213NL / LPJ0011ABNL 10/100Base-T Ethernet I/O Connector Rj-45 Jack Female
J00-0213NL / LPJ0011ABNL 10/100Base-T Ethernet I/O Connector Rj-45 Jack Female
J00-0213NL / LPJ0011ABNL 10/100Base-T Ethernet I/O Connector Rj-45 Jack Female
J00-0213NL / LPJ0011ABNL 10/100Base-T Ethernet I/O Connector Rj-45 Jack Female
J00-0213NL / LPJ0011ABNL 10/100Base-T Ethernet I/O Connector Rj-45 Jack Female
J00-0213NL / LPJ0011ABNL 10/100Base-T Ethernet I/O Connector Rj-45 Jack Female
J00-0213NL / LPJ0011ABNL 10/100Base-T Ethernet I/O Connector Rj-45 Jack Female
J00-0213NL / LPJ0011ABNL 10/100Base-T Ethernet I/O Connector Rj-45 Jack Female
J00-0213NL / LPJ0011ABNL 10/100Base-T Ethernet I/O Connector Rj-45 Jack Female
J00-0213NL / LPJ0011ABNL 10/100Base-T Ethernet I/O Connector Rj-45 Jack Female
Specifications
Brand Name :
LINK-PP
Model Number :
J00-0213NL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
50/500/1000/25K
Price :
$0.09-$1.85
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
250000-320000/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
Specification :
J00-0213NL
Part No :
LPJ0011ABNL
Ethernet :
1x10/100Mbps
Samples :
Available
Description

J00-0213NL / LPJ0011ABNL 10/100Base-T Ethernet I/O Connector Rj-45 Jack Female

  1. LINK-PP LPJ0011ABNL Single Port Filter Rj-45
  2. Cross Equivalent to J00-0213NL
  3. Rj45 10/100Base-T Ethernet Filtered Jack With LED Indicators

ELECTRICAL SPECFICATIONS: @25℃
1.Turn Ratio(±2%):
TX=1CT:1 RX=1CT:1
2.Inductance OCL:
350uH MIN @ 100KHz 0.1V 8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1.0-100MHz
4.Return Loss:
-18dB MIN @ 1-30MHz
-15dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 80-100MHz
5.Cross talk:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
6.Common Mode Rejection:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
7.Hipot: 1500Vrms
8.LED Lamp:
Wave Length:GREEN/YELLOW:570nm/590nm
Forward Voltage(Vf):
1.8V-2.6V (Test Condition: 20mA)
9.Operating Temperature Range:0℃ TO 70℃

J00-0213NL / LPJ0011ABNL 10/100Base-T Ethernet I/O Connector Rj-45 Jack Female J00-0213NL / LPJ0011ABNL 10/100Base-T Ethernet I/O Connector Rj-45 Jack Female
