RJ45 Single Port J1012F21KNL / LPJ1012AWNL Tab-UP 8-pins Magnetics Connector
RJ45 Single Port J1012F21KNL / LPJ1012AWNL Tab-UP 8-pins Magnetics Connector
Specifications
Brand Name :
LINK-PP
Model Number :
J1012F21KNL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
50/500/1000/25K
Price :
$0.09-$1.85
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
250000-320000/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
Specification :
J1012F21KNL
Part No :
LPJ1012AWNL
Ethernet :
1x 10/100Mbps
Mounting :
Right Angle
Indicators :
LEDs
Samples :
Available
Description

RJ45 Single Port J1012F21KNL / LPJ1012AWNL Tab-UP 8-pins Magnetics Connector

  1. 1x1 Tab-UP RJ45 LPJ1012AWNL
  2. 100 Base-TX (Fast Ethernet) RJ45 1x1 Tab-UP with LEDs 8-pin (J1 series) and 6-pin (JP series) integrated magnetics connector
  3. Designed to support applications, such as ADSL modems,
  4. LAN-on-Motherboard, and Hub and Switches.
  5. Cross Equivalent J1012F21KNL Specifications

Electrical Specification @25℃
1.Turns Ratio(±2%):
TX=1CT∶1CT RX=1CT∶1CT
2.OCL: 350uH Min
@100KHz 0.1V 8mADC BIAS
3.Insertion Loss:
1-65MHz:-1.0dB Max
4.Return Loss(dB Min):
1-10MHz:-20 10-30MHz:-16
30-60MHz:-12 60-100MHz:-10
5.Crosstalk(dB Min):
1-30MHz:-40 30-60MHz:-35
60-100MHz:-30
6.CMR(dB Min):
1-50MHz:-30 50-150MHz:-20
7.Isolation Voltage: 1500Vrms
8.Operating Temperature: 0℃～70℃.

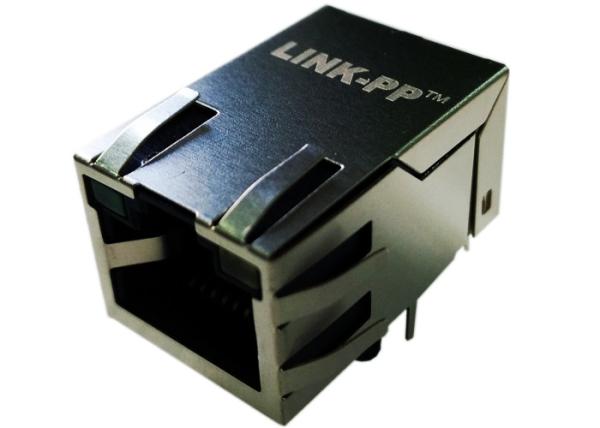

RJ45 Single Port J1012F21KNL / LPJ1012AWNL Tab-UP 8-pins Magnetics Connector RJ45 Single Port J1012F21KNL / LPJ1012AWNL Tab-UP 8-pins Magnetics Connector
