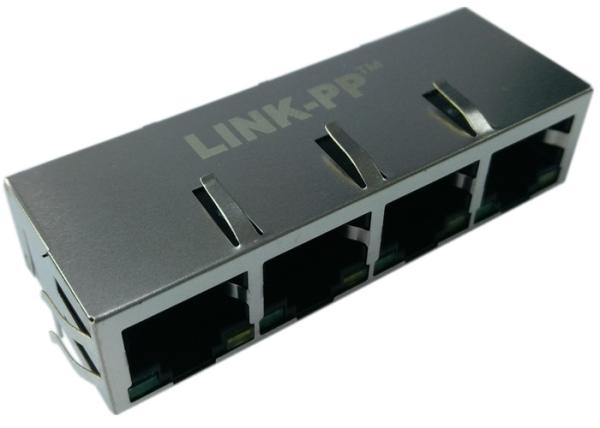

RJ45 Magjack 4Port 1000 Base-T LPJG46801AENL Gigabit Connector Shield R/A
RJ45 Magjack 4Port 1000 Base-T LPJG46801AENL Gigabit Connector Shield R/A
Specifications
Brand Name :
LINK-PP
Model Number :
LPJG46801AENL
Certification :
SGS, UL,CE,ISO9001:2008,Reach
Place of Origin :
China
MOQ :
50/500/1000/25K
Price :
$0.11-$12
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
208K/Month
Delivery Time :
Stock
Packaging Details :
Tray
Specification :
LPJG46801AENL
Part No :
LPJG46801AENL
Ethernet :
4x 10/100/1000Mbps
Gender :
Female,Receptacle
Indicator :
LED Flexible
Samples :
Available
Description

RJ45 Magjack 4Port 1000 Base-T LPJG46801AENL Gigabit Connector Shield R/A

  • RJ45 Magjack 4Port 1000 Base-T
  • 4x10/100/1000 Mbps Ethernet
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3ab Gigabit Ethernet,
  • LINK-PP LPJG46801AENL Rj45
  • Rj45 With Magnetics Transformer

Electrical Specification @25℃
1.Turns Ratio(±5%):

1CT∶1CT
2.OCL: 350uH Min
@100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
1～100MHz:-1.dB Max
4.Return Loss(dB Min):
1～30MHz:-16 30～40MHz:-13.5
40～50MHz:-11.5 50～80MHz:-10
5.Crosstalk(dB Min):
0.3～30MHz:-40

30～60MHz:-35
60～100MHz:-30
6.CMR(dB Min):
1～30MHz:-35

30～60MHz:-32
60～125MHz:-35
7.Hipot: 1500Vrms
8.Operating Temperature:

0℃～70℃ / -40℃～+85℃
RJ45 Magjack 4Port 1000 Base-T LPJG46801AENL Gigabit Connector Shield R/A RJ45 Magjack 4Port 1000 Base-T LPJG46801AENL Gigabit Connector Shield R/A
