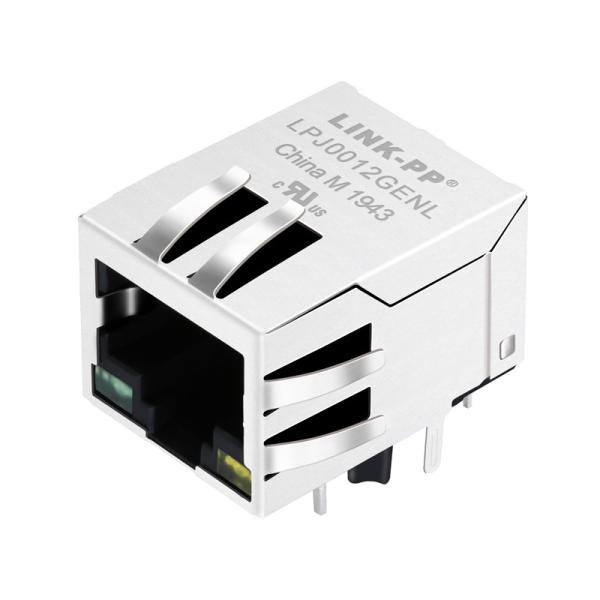

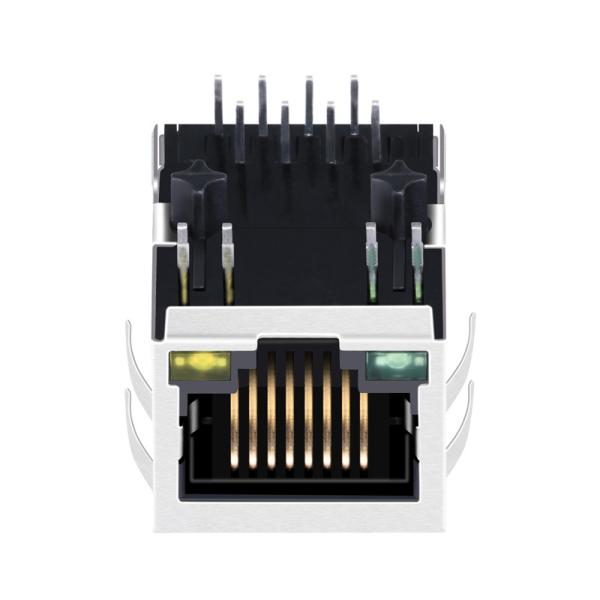

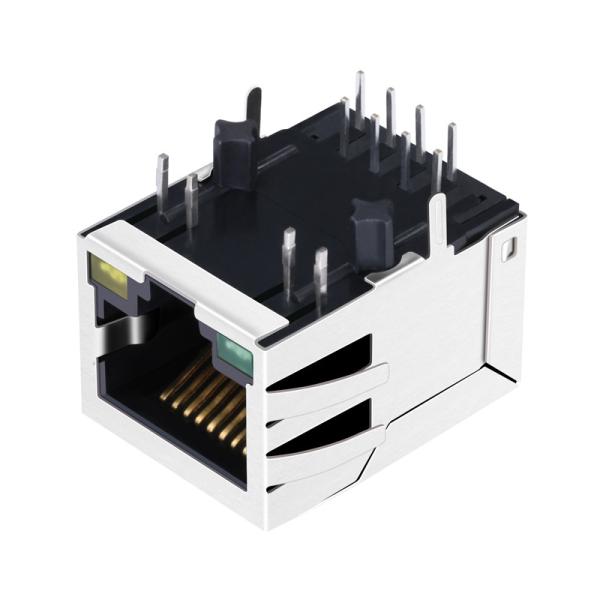

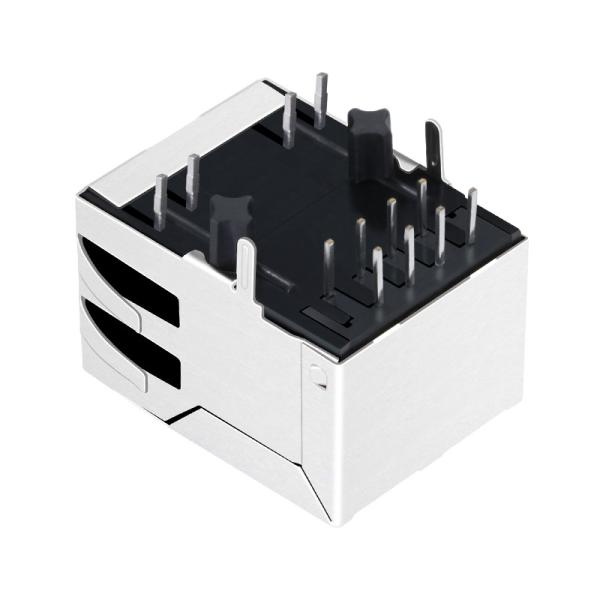

LPJ0012GENL RJ45 Single Port Built-in Magnetic Inside 10/100Mbps Ethernet
LPJ0012GENL RJ45 Single Port Built-in Magnetic Inside 10/100Mbps Ethernet
LPJ0012GENL RJ45 Single Port Built-in Magnetic Inside 10/100Mbps Ethernet
LPJ0012GENL RJ45 Single Port Built-in Magnetic Inside 10/100Mbps Ethernet
LPJ0012GENL RJ45 Single Port Built-in Magnetic Inside 10/100Mbps Ethernet
LPJ0012GENL RJ45 Single Port Built-in Magnetic Inside 10/100Mbps Ethernet
LPJ0012GENL RJ45 Single Port Built-in Magnetic Inside 10/100Mbps Ethernet
LPJ0012GENL RJ45 Single Port Built-in Magnetic Inside 10/100Mbps Ethernet
LPJ0012GENL RJ45 Single Port Built-in Magnetic Inside 10/100Mbps Ethernet
LPJ0012GENL RJ45 Single Port Built-in Magnetic Inside 10/100Mbps Ethernet
Specifications
Brand Name :
LINK-PP
Model Number :
LPJ0012GENL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
50/500/1000/25K
Price :
$0.09-$1.85
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
250000-320000/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
Specification :
LPJ0012GENL
Part No :
LPJ0012GENL
Ethernet :
10/100Mbps Power Ethernet
Turn Ratio :
1CT:1CT
Mounting :
Right Angle 90 Degree
Samples :
Available
Description

LPJ0012GENL RJ45 Single Port Built-in Magnetic Inside 10/100Mbps Ethernet

  • LPJ0012GENL LINk-PP Rj45 Fast Ethernet With Transformer
  • Angled Rj45 Connector 10/100base-tx Ethernet
  • Telecom transformers and RJ45 modules
  • LED Indicator Flexible Design

ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(%%P2%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@ 100KHz/0.1V 8mA DC Bias
3.Insertion Loss:
1.0-100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
1-30MHz: -18 30-60MHz:-15
60-80MHz: -12 80-100MHz:-10
5.Cross talk(dB MIN):
30MHz: -40 60MHz: -35
100MHz:-30
6.Common Mode Rejection(dB MIN):
30MHz: -40 60MHz: -35
100MHz:-30
7.Hipot Test: 1500Vrms
8.Operating Temperature Range: 0℃ TO 70℃
