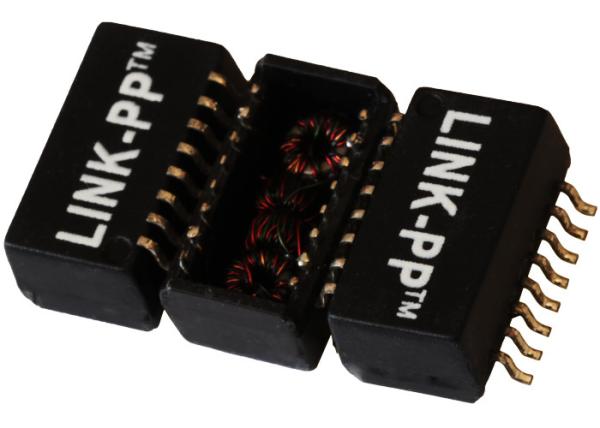

1500Vrms Dielectric 10/100 Transformer Auto MDIX Capable lan Magnetics SMD , 7490100110A
1500Vrms Dielectric 10/100 Transformer Auto MDIX Capable lan Magnetics SMD , 7490100110A
1500Vrms Dielectric 10/100 Transformer Auto MDIX Capable lan Magnetics SMD , 7490100110A
1500Vrms Dielectric 10/100 Transformer Auto MDIX Capable lan Magnetics SMD , 7490100110A
Specifications
Brand Name :
LINK-PP
Model Number :
7490100110A
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
400/2000/10K/25K
Price :
$0.06-$3.2
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3KK/Month
Delivery Time :
Stock
Packaging Details :
T&R
Items :
10/100 Base-T Transformer Modules
Standard :
IEEE 802.3u
Turn Ratio :
1:1
Mounting :
SMT
Ethernet :
1x10/100Base-Tx
Dielectric :
1500Vrms
Description
7490100110A 10/100 Transformer Auto MDIX Capable lan Magnetics SMD
  • Ethernet TRANSFORMER FOR GENERAL PURPOSE APPLICATION(S)
  • l IEEE 802.3 Ethernet Compatible,10/100 Base-TX
  • Surface Mountable(Miniature size)
  • Coil Structure: Toroidal
  • 10/100 Base-T Transformer Modules
  • Compatible of 7490100110A Equivalent Specifications
  • Equivalent to 7490100110A
  • operating temperature: 0°C - + 70°C
  • Hipot test: 1500Vrms 1min.
  • Compliant with IEEE 802.3u for 10/100Base-TX-Applications
  • Auto MDIX capable

SPECIFICATIONS

Mfr Package Description ROHS COMPLIANT
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Transformer Type LINK-PP Made In China
Application GENERAL PURPOSE
Isolation Voltage 4800 Vrms
Manufacturer Series 7490100110A Cross
Mounting Feature SURFACE MOUNT
Number of Functions 1
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Primary Inductance 350.0 µH
Turns Ratio (Np: Ns) 1:1
Height 6.35 mm
Length 12.70 mm
Width 9.40 mm
Additional Feature HEIGHT DIM INCLUDE TERMINALS ALSO
