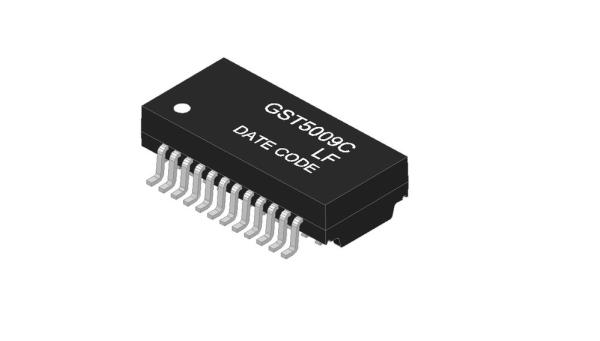

GST5009C LF 1000 BASE-T Magnetics Modules Gigabit Transformer
GST5009C LF 1000 BASE-T Magnetics Modules Gigabit Transformer
GST5009C LF 1000 BASE-T Magnetics Modules Gigabit Transformer
GST5009C LF 1000 BASE-T Magnetics Modules Gigabit Transformer
Specifications
Place of Origin :
Guangdong,China
Brand Name :
LINK-PP
Certification :
UL,RoHS,Reach,ISO
Model Number :
GST5009CLF
MOQ :
400/2000/10K/25K
Price :
$0.06-$1.2
Packaging Details :
T&R
Delivery Time :
in Stock Ship Today
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
5KK/Month
P/N :
GST5009C LF
LINK-PP P/N :
LP82455NL
Data Rate :
1G
PoE :
350mA Per Pair
Mounting :
SMD
Free Samples :
Available
Series :
Discrete LAN Magnetics
Mechanical :
15.10x10.00x4.00mm
Description

GST5009C LF / LP82455NL – 1000BASE-T Gigabit Ethernet Transformer

Key Features:

  • Coil Number: 8
  • Coil Structure: Toroidal
  • Package: SMT, 24 Pins
  • Type: Single-Port Gigabit Ethernet Transformer
  • Applications: Optimized for 1000BASE-T full-duplex Ethernet, including long-haul transmission systems.
  • Cable Support: Designed to support 4 pairs of Category 5 UTP cable for reliable gigabit data transfer.
  • Performance Benefits: Provides cable interface isolation and ensures low common-mode emissions for stable operation.
  • Standards Compliance:
    • IEEE 802.3ab (1000BASE-T Gigabit Ethernet)
    • IEEE 802.3af (PoE / Power over Ethernet)
    • RoHS & Halogen-Free compliant
  • Environmental Ratings:
    • Operating Temperature: 0℃ to +70℃
    • Storage Temperature: -25℃ to +85℃

Electrical Specifications (25°C):

Parameter Test Condition Value
Turns Ratio 50KHz, 0.5V 1CT : 1CT ± 2%
Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias 350 µH Min
Insertion Loss 1–100 MHz -1.4 dB Max
Return Loss 1–30 MHz -16 dB Min
Return Loss 40 MHz -14.4 dB Min
Return Loss 50 MHz -13.1 dB Min
Return Loss 60–80 MHz -12 dB Min
Return Loss 100 MHz -10 dB Min
Differential to Common Mode Rejection 30 MHz -45 dB Min
Differential to Common Mode Rejection 60 MHz -40 dB Min
Differential to Common Mode Rejection 100 MHz -35 dB Min
Crosstalk 30 MHz -40 dB Min
Crosstalk 60 MHz -35 dB Min
Crosstalk 100 MHz -30 dB Min
Hi-Pot Test — 1500 Vrms Min

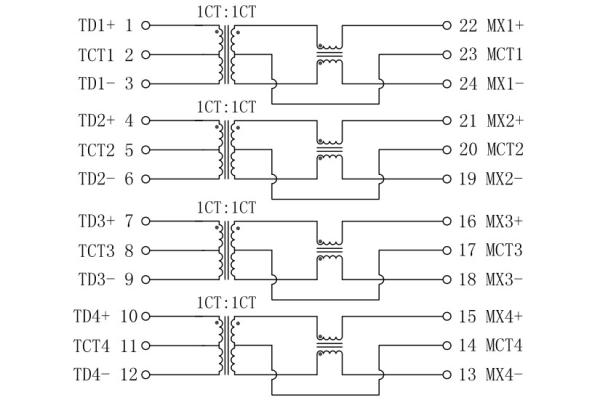

GST5009C LF SMD 1000Base-T Discrete LAN Magnetics Drawing:

GST5009C LF 1000 BASE-T Magnetics Modules Gigabit Transformer

GST5009C LF 1000 BASE-T Magnetics Modules Gigabit Transformer

Competitive Advantages:

  • 100% tested for reliability and performance
  • Backed by 2600+ professional staff
  • Flexible delivery time to meet customer demands
  • Proven compatibility with multiple networking platforms
