RTA-110AHQ1A | LPJ1075-1BHNL Power Enable Rj45 350mA @57VDC continuous
RTA-110AHQ1A | LPJ1075-1BHNL Power Enable Rj45 350mA @57VDC continuous
RTA-110AHQ1A | LPJ1075-1BHNL Power Enable Rj45 350mA @57VDC continuous
RTA-110AHQ1A | LPJ1075-1BHNL Power Enable Rj45 350mA @57VDC continuous
Specifications
Place of Origin :
China
Brand Name :
LINK-PP
Certification :
UL,ROHS,Reach,ISO
Model Number :
RTA-110AHQ1A
MOQ :
50/500/1000/25K
Price :
$0.05-$1.28
Packaging Details :
50pcs/tray,1200pcs/carton
Delivery Time :
Stock
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4200K-PCS/Month
Specifications :
LPJ1075-1BHNL
Mechanical :
25.40x16.25x13.50mm

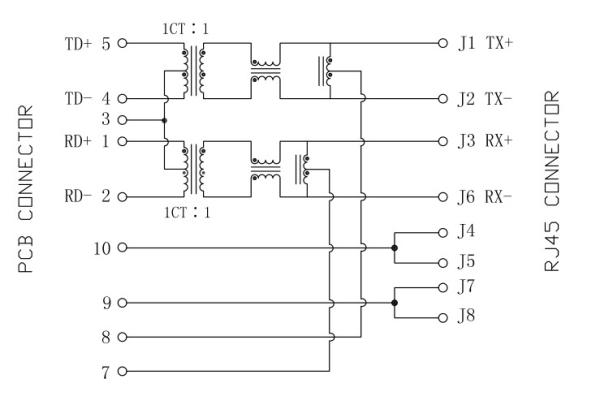

Schematics :
5 Coils,1CT:1,1CT:1
Ethernet :
1x 10/100 Power Enable
Samples :
Free
Description
RTA-110AHQ1A | LPJ1075-1BHNL Power Enable Rj45 350mA @57VDC continuous
  1. 10/100 Base-T LPJ1075-1BHNL
  2. Compatible to 1X1 Tab-up RTA-110AHQ1A
  3. Through hole RJ45 modular jack
  4. POwer Over Ethernet IEEE802.3af
  5. 350mA MAX @57VDC continuous
  6. 500mA MAX @57VDC for 200 milliseconds
Transmitter filter & Receiver filter
Te : Balance low ass 100Ω imedance yp p p
Insertion loss :
Return loss :
-16dB min.
1~30 MHz -18dB min. load 100Ω
30~60MHz load 100Ω
1~100 MHz -1.0dB max.
3.3 Common Mode Rejection
60~80MHz -12dB min. load 100Ω
@ 1~100 MHz -30dB min.
3.4 Cross Talk
@ 1~100 MHz -30dB min.
3.5 Inductance @ 100KHz, 0.1V, 8mA DC BIAS
3.6 HiPot Test
Input(R5-R4), Input(R1-R2): 350 μH min.
I (R5 R4) O (C1 C2) 1500V 60 2250Vd 60 To
To
3.7 Balanced DC line current
350mA MAX @57VDC continuous
Input(R1-R2) Output(C3-C6) : 1500Vac 60s or 2250Vdc 60s
Input(R5-R4) Output(C1-C2) : 1500Vac 60s or 2250Vdc 60s
350mA MAX @57VDC continuous
500mA MAX @57VDC for 200 milliseconds
