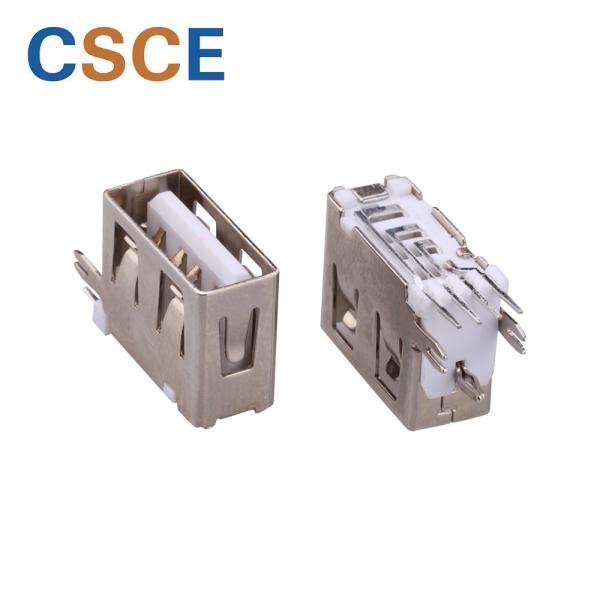

Side Insert USB Male Female Connector L10mm USB 2.0 Voltage Rating 30V Max
Side Insert USB Male Female Connector L10mm USB 2.0 Voltage Rating 30V Max
Side Insert USB Male Female Connector L10mm USB 2.0 Voltage Rating 30V Max
Side Insert USB Male Female Connector L10mm USB 2.0 Voltage Rating 30V Max
Specifications
Brand Name :
CSCE
Model Number :
SUSB-1W1142-046ZK
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Product name :
USB connctor
Material :
UL94-V0
Voltage rating :
30V max
Color :
White or other colors are available
Pin :
4pin
Sample :
Free,if have stock one
Description
USB 2.0 AF Type DIP 90 Degree L10mm Side Insert USB Connector

Quick Details:

Specification: USB Connector Cross Part NO: SUSB-1W1142-046ZK
Shell: Copper Alloy Samples: Available 2-3 Pcs

Product Description:

Contact Resistance 30 Milliohms MAX
Extraction Force 1.02Kg MIN At A
Dielectric Withstanding Voltage 500V AC MIN
Material Shell Copper Alloy
Colar White
Material Contact Copper Alloy
Durability 6000 Cycles
Maximum Rage 12.5mm
Material Housing PBT+30%GF;UL94-V0
Insertion Force 3.75Kg Maximu At A
Operation Temperature -20℃-+85℃
Insulation Resistance 1000 Megohms MIN
Retention Force MIN .100gf/PIN

Features:


1. All materials comply with ROHS
2. High-wearing feature
5. OEM & ODM are both available.
6. Quality Assurance, 36 months warranty.
7. Riveting machine was invented by us.
8. We do lots of research and development in these area, if you meet any difficulties, feel free to contact us.

Pre-sale service:

1. We try to do best communicate with every customer about all the questions and promptly

2. We provide pre-sale service in various forms, such as we can provide options for customer choose. So that customers can a reasonable plan with less cost.

In-sale service:

1. We do double check before the products sent out

2. We do choose the safe shipping

3. We do make sure you can get the products on time

After service:

1. We do follow up after you get the products

2. We will answer customer questions in time. If need, we can provide free guidance if customer need new rqquirements.

3. If we have new products, we can recommend you in advance, when you place the second order, we will happy to give you a discount.

FAQ

• Q: Can I get some samples?

A: Yes you can, sample order is available for quality check/ market test, it will be freight collect payment.

• Q: What’s the delivery time?
A: After payment receipt, normally it takes 1~3 working days to produce samples, and 7~15 working days for bulk products.

• Q: What’s your payment term?
A: We usually work with T/T, western union, paypal, and other payments can also be negotiated.

• Q: Quality problems?
A: If there is any quality problem or question, we could offer technical support or return service .

Product Drawing:

Side Insert USB Male Female Connector L10mm USB 2.0 Voltage Rating 30V Max
