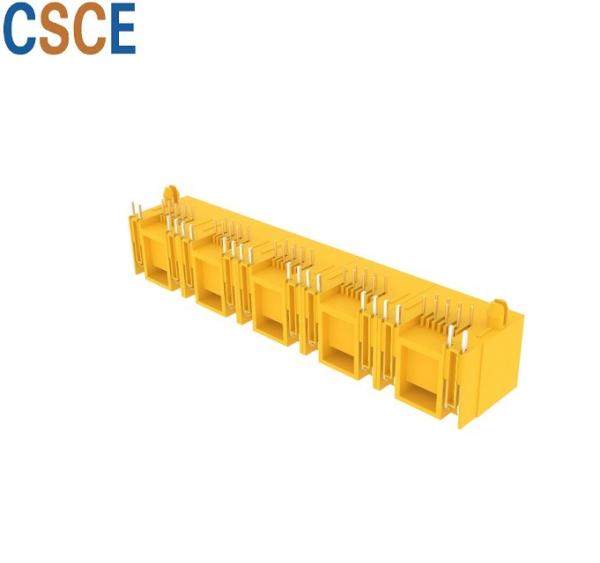

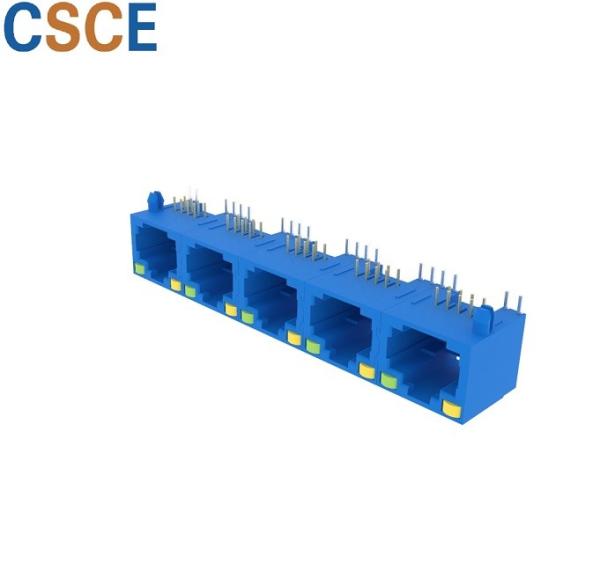

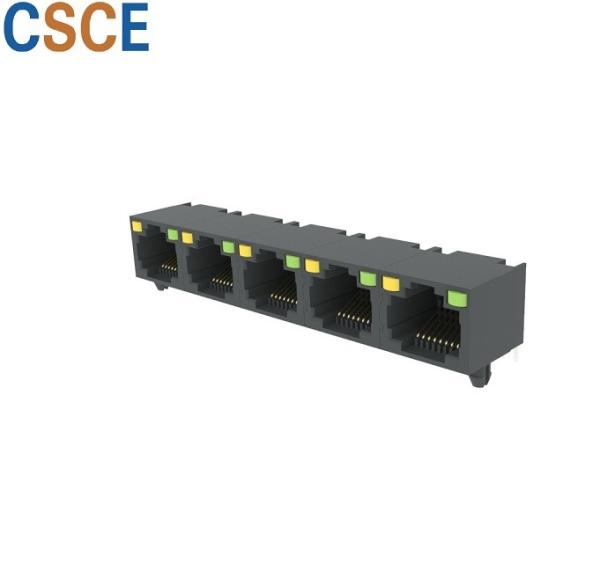

Unshielded RJ45 Modular Jack 1×5 Port Voltage Rating 125V With Yellow / Green LED
Unshielded RJ45 Modular Jack 1×5 Port Voltage Rating 125V With Yellow / Green LED
Unshielded RJ45 Modular Jack 1×5 Port Voltage Rating 125V With Yellow / Green LED
Unshielded RJ45 Modular Jack 1×5 Port Voltage Rating 125V With Yellow / Green LED
Unshielded RJ45 Modular Jack 1×5 Port Voltage Rating 125V With Yellow / Green LED
Unshielded RJ45 Modular Jack 1×5 Port Voltage Rating 125V With Yellow / Green LED
Specifications
Brand Name :
CSCE
Model Number :
56A-15881011X01
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Material :
PBT
Insulation resistance :
<30MΩ
Pin :
8P8C
Color :
Black/White/OEM
Product name :
modular rj45 jack
Keywords :
90 Degree RJ45 socket
Description
8P8C 1×5 port Unshielded Modular Jack Connector With Y/G LED

Product Details:

Specification: Modular Jack RJ45 Cross Part NO: 56A-15881011X01
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs
LED: With Files: PDF/3D/ISG/Stp/Step/Datashee

Product Specification:

Housing Material PBT/PA66/PA46
Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
Contact Material DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
Storage Temperature ﹣40℃ to +85℃
Mating/Unmating Force 2.2KG.F MAX.
Voltage Rating 125v
Operating Life 750 Cycles MIN.
Insulation Resistance 500 MΩ MIN @ 500V DC.
Current Rating 1.5A
Insert Material UL94V-0
Operation Temperature ﹣40℃ to +85℃
Contact Resistance 30milliohm Max
Retention Strength 7.7KG.F MIN Between Jack And Plug

FAQ

1. How can i get a sample?

A: just check with our sales.

2. How to develop a new product base on an idea?

A: Tell us what you want, Then we will design it for free.

3. How about OED,ODM?

A: 14 years experiences in OEM,ODM.

4. How to reduce your risk?

A: Check the sample before order.

5. How about the after-sale service?

A: Just tell us the problem after you receive the products.

Then we’ll help you deal with it together.

Competitive Advantage

14 years production experience,

3000 staff,

100% test

Flexible delivery time

Our Services

1. Factory price

• Own production workers, production equipment and engineering technology team

• New original with low and discount price

2. Safe & Quality Reliability

• Quality insurance system for superb product quality

• On Time, Every Time provision of Quality Components.

3. Customer Friendly Services

• Support in many Languages website, more convenience & fast services.

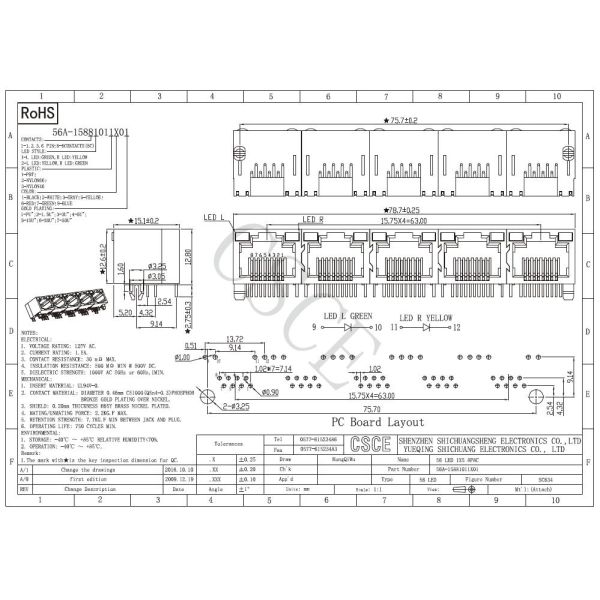

Product Drawing:

Unshielded RJ45 Modular Jack 1×5 Port Voltage Rating 125V With Yellow / Green LED
