Various Colors RJ45 Modular Jack 10 / 100 Base Contact Material Phosphor Bronze
Various Colors RJ45 Modular Jack 10 / 100 Base Contact Material Phosphor Bronze
Various Colors RJ45 Modular Jack 10 / 100 Base Contact Material Phosphor Bronze
Various Colors RJ45 Modular Jack 10 / 100 Base Contact Material Phosphor Bronze
Various Colors RJ45 Modular Jack 10 / 100 Base Contact Material Phosphor Bronze
Various Colors RJ45 Modular Jack 10 / 100 Base Contact Material Phosphor Bronze
Specifications
Brand Name :
CSCE
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen ， China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Model Number :
56A-11881011X01
Application :
PCB
Rated voltage :
125VAC
Business type :
Manufacturer
Rated current :
1.5A
Operating temperature :
-40℃ to 85℃
Gender :
Female
Color :
Black/White/OEM
name :
RJ45 Modular Jack
Description
Many Color Unshielded RJ45 Modular Jack 10/100 Base With Y/G Led Network Connector RJ45

Product Specification:

Specification: RJ45 Modular Jack Cross Part NO: 56A-11881011X01
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs
Latch: Tab up Files: PDF/3D/ISG/Stp/Step/Datasheet

Product Details:

1. Current Rating 1.5A
2. Voltage Rating 125v
3. Contact Resistance 30milliohm Max
4. Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
5. Insulation Resistance 500 MΩ MIN @ 500V DC.
6. Mating/Unmating Force 2.2KG.F MAX.
7. Retention Strength 7.7KG.F MIN Between Jack And Plug
8. Operating Life 750 Cycles MIN.
9. Operation Temperature ﹣40℃ to +85℃
10. Storage Temperature ﹣40℃ to +85℃
11. Housing Material PBT/PA66/PA46
12. Contact Material DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
13. Contact Mating Area Plating Gold/3u"/6u"/15u"/30u"
14. LED Option Yellow/Green LEDs

Product application

Free for network and communication device sas HUB, PC card, switch, router, PC board, SDH, PDH, IP phone, x DSL modem, call center solution, call set-top box, VOIP gateway, setup protocol gateway, fast Ethernet switch ...

FAQ:


Q: Can I get samples for free?
A: Of course, you can get 3-5 samples and you will need to pay for the sample shipping.
Q: How long is your delivery time?
A: 5-7 days, such as inventory, normal delivery 2-3 weeks
Q: What are your payment terms?
A: TT/LC/DP/DA/PayPal/Western Union/Currency
Q: What is the way you transport the goods?
A: DHL UPS DEDEX or TNT shipping costs reduced by 90%

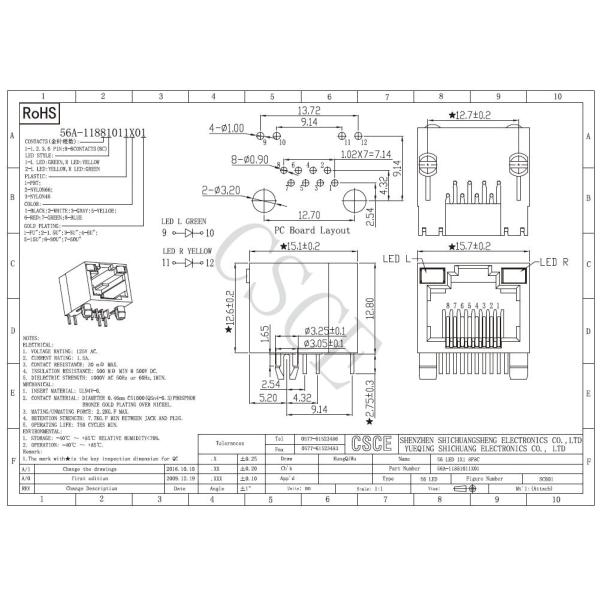

Product Drawing
