PBT W/0 Panel 1*5 RJ45 Multi Port 8Pin 8Contact Unshielded Without Magnetics
PBT W/0 Panel 1*5 RJ45 Multi Port 8Pin 8Contact Unshielded Without Magnetics
PBT W/0 Panel 1*5 RJ45 Multi Port 8Pin 8Contact Unshielded Without Magnetics
PBT W/0 Panel 1*5 RJ45 Multi Port 8Pin 8Contact Unshielded Without Magnetics
Specifications
Brand Name :
CSCE
Model Number :
53C-58821X0111
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen ， China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Type :
RJ45
Gender :
Female
Application :
PCB
Connector type :
RJ45
Business type :
Manufacturer
Keywords :
multi port rj45 connector
Description

PBT W/0 Panel 1*5 RJ45 Multi Port 8Pin 8Contact Unshielded Without Magnetics

Product application:

Free for network and communication device sas HUB, PC card, switch, router, PC board, SDH, PDH, IP phone, x DSL modem, call center solution, call set-top box, VOIP gateway, setup protocol gateway, fast Ethernet switch ...

Product Details:

1. Current Rating 1.5A
2. Voltage Rating 125v
3. Contact Resistance 30milliohm Max
4. Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
5. Insulation Resistance 500 MΩ MIN @ 500V DC.
6. Mating/Unmating Force 2.2KG.F MAX.
7. Retention Strength 7.7KG.F MIN Between Jack And Plug
8. Operating Life 750 Cycles MIN.
9. Operation Temperature ﹣40℃ to +85℃
10. Storage Temperature ﹣40℃ to +85℃
11. Housing Material PBT
12. Contact Material DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
13. Contact Mating Area Plating Gold/3u"/6u"/15u"/30u"

Product Specification:

Specification: RJ45 Multi Port Cross Part NO: 53C-58821X0111
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs
Latch: Tab up Files: PDF/3D/ISG/Stp/Step/Datasheet

Competitive prices and services:

More competitive prices than pulsed Tico halos and aphorol

Delivery time: 2-3 weeks after order

Samples provided free of charge

New designs to meet customer requirements

DHL UPS DEDEX or TNT reduces shipping costs by 90%

Why choose us:

Equipment and manufacturing ability for mould

  1. Competitive price , and in time delivery well-selling in both domestic and foreign markets
  2. Acquired the ISO9001-2000 quality management system certification , ISO14001 environmental management system and UL certification .
  3. Specializes in the development , design , production and sale of communication network connectors .

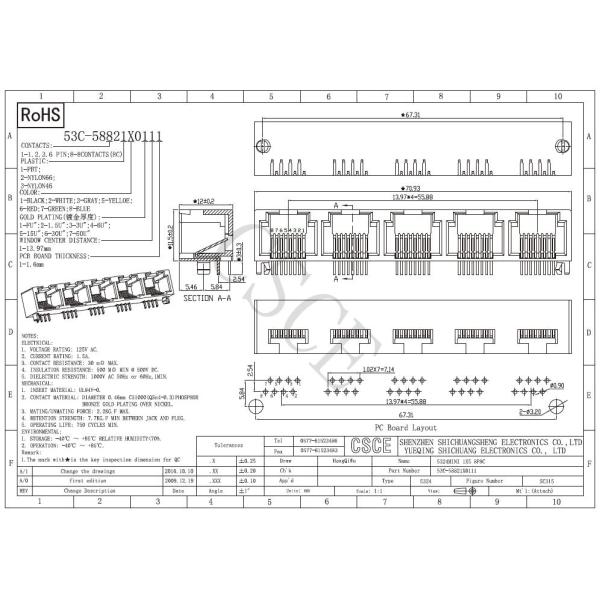

Product Drawing:

PBT W/0 Panel 1*5 RJ45 Multi Port 8Pin 8Contact Unshielded Without Magnetics
