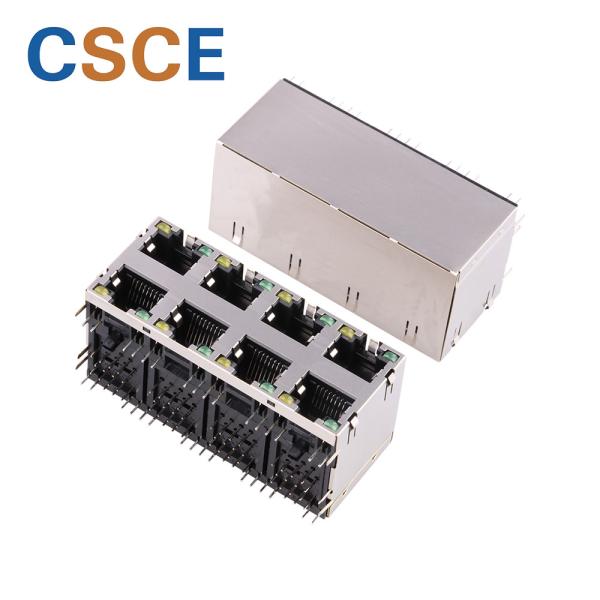

LED Shielded RJ45 8 Pin Connector , 8 Ports RJ45 Connector Port RoHS Approved
LED Shielded RJ45 8 Pin Connector , 8 Ports RJ45 Connector Port RoHS Approved
LED Shielded RJ45 8 Pin Connector , 8 Ports RJ45 Connector Port RoHS Approved
LED Shielded RJ45 8 Pin Connector , 8 Ports RJ45 Connector Port RoHS Approved
Specifications
Brand Name :
CSCE
Model Number :
59B-34881121X01
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen ， China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Gender :
Female
Type :
RJ45
Application :
PCB
Keywords :
stacked rj45 connector
Rated Voltage: :
125V
plastic :
PBT
Description
LED Shielded Rj45 8 Pin Connector , 8 Ports 2x4 Rj45 Connector Port RoHS Approved

Product Specification:

Specification: Stacked RJ45 Cross Part NO: 59B-34881121X01
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs
Latch: Tab up Files: PDF/3D/ISG/Stp/Step/Datasheet

Product Details:

1. Current Rating 1.5A
2. Voltage Rating 125v
3. Contact Resistance 30milliohm Max
4. Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
5. Insulation Resistance 500 MΩ MIN @ 500V DC.
6. Mating/Unmating Force 2.2KG.F MAX.
7. Retention Strength 7.7KG.F MIN Between Jack And Plug
8. Operating Life 750 Cycles MIN.
9. Operation Temperature ﹣40℃ to +85℃
10. Storage Temperature ﹣40℃ to +85℃
11. Housing Material PBT/PA66/PA46
12. Contact Material DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
13. Contact Mating Area Plating Gold/3u"/6u"/15u"/30u"
14. Shell Material Brass
15. Shell Plating Ni Plating

Competitive Advantage:

CSCE has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,100% test, zero defect, short lead time are our best advantages ,Our products have been exported to all over the world and got a good reputation, If you have any questions,please do not hesitate to contact us by email or Trade Manager. We 'll get back to you in 24 hours.

Product Application:


Integrated RJ45 connector smare s / for:
10/100/1000M cards, PCMCIA cards, USB hubs, network switches, routers, fiber optic transceivers,
Optical transceivers, IP phones, Internet set-top boxes, Internet cameras, bridges, computers,
Telecom, MODEM, HomePNA, DSL/ADSL, etc.

Why choose us:

Equipment and manufacturing ability for mould

Competitive price , and in time delivery well-selling in both domestic and foreign markets

Acquired the ISO9001-2000 quality management system certification , ISO14001 environmental management system and UL certification .

Specializes in the development , design , production and sale of communication network connectors .

Product Drawing:

LED Shielded RJ45 8 Pin Connector , 8 Ports RJ45 Connector Port RoHS Approved
