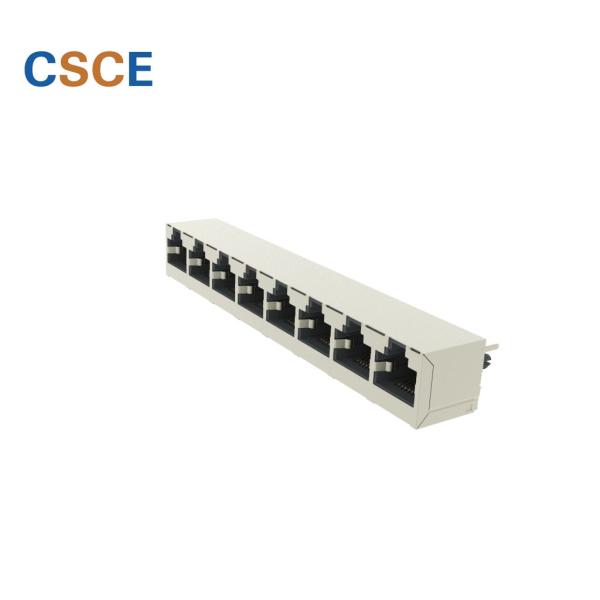

Vertical PBT RJ45 Multiple Port Connectors Rated Voltage 125V For Ethernet Interface
Vertical PBT RJ45 Multiple Port Connectors Rated Voltage 125V For Ethernet Interface
Vertical PBT RJ45 Multiple Port Connectors Rated Voltage 125V For Ethernet Interface
Vertical PBT RJ45 Multiple Port Connectors Rated Voltage 125V For Ethernet Interface
Vertical PBT RJ45 Multiple Port Connectors Rated Voltage 125V For Ethernet Interface
Vertical PBT RJ45 Multiple Port Connectors Rated Voltage 125V For Ethernet Interface
Vertical PBT RJ45 Multiple Port Connectors Rated Voltage 125V For Ethernet Interface
Vertical PBT RJ45 Multiple Port Connectors Rated Voltage 125V For Ethernet Interface
Specifications
Brand Name :
CSCE
Model Number :
52F-38880311X01
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen ， China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Gender :
Female
Material :
PBT
Pin :
8P8C
Rated voltage :
125V
Application :
Ethernet interface
name :
RJ45 multiple port connectors
Description
Vertical PBT RJ45 Multiple Port Connectors Rated Voltage 125V For Ethernet Interface

Product Specification:

Specification: RJ45 Shielded Jack Cross Part NO: 52F-38880311X01
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs
Latch: Tab up Files: PDF/3D/ISG/Stp/Step/Datasheet

Product Details:

1. Current Rating 1.5A
2. Voltage Rating 125v
3. Contact Resistance 30milliohm Max
4. Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
5. Insulation Resistance 500 MΩ MIN @ 500V DC.
6. Mating/Unmating Force 2.2KG.F MAX.
7. Retention Strength 7.7KG.F MIN Between Jack And Plug
8. Operating Life 750 Cycles MIN.
9. Operation Temperature ﹣40℃ to +85℃
10. Storage Temperature ﹣40℃ to +85℃
11. Housing Material PBT/PA66/PA46
12. Contact Material DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
13. Contact Mating Area Plating Gold/3u"/6u"/15u"/30u"
14. Shell Material Brass
15. Shell Plating Ni Plating

Competitive Advantage

14 years production experience,

3000 staff,

100% test

Flexible delivery time

Our Services

1. Factory price

• Own production workers, production equipment and engineering technology team

• New original with low and discount price

2. Safe & Quality Reliability

• Quality insurance system for superb product quality

• On Time, Every Time provision of Quality Components.

3. Customer Friendly Services

• Support in many Languages website, more convenience & fast services.

FAQ

Q: Can I get some samples?

A: Yes, sample order is available, some samples are free. and it will be freight collect payment.

Q : How long is your lead time?

A: Normally, our lead time is 5-7 days according to different products.

Q: What's your payment term?

A: We accept TT/LC/DP/DA/Paypal/Western Union/MoneyGram

Q: Why choose our company?

A: 1. Professional manufacturer since 2005, provide various kinds of connectors and LAN Transformer

2. Good quality, competitive price with best service.

3. Available for ODM/OEM order.

Product Drawing:

Vertical PBT RJ45 Multiple Port Connectors Rated Voltage 125V For Ethernet Interface
