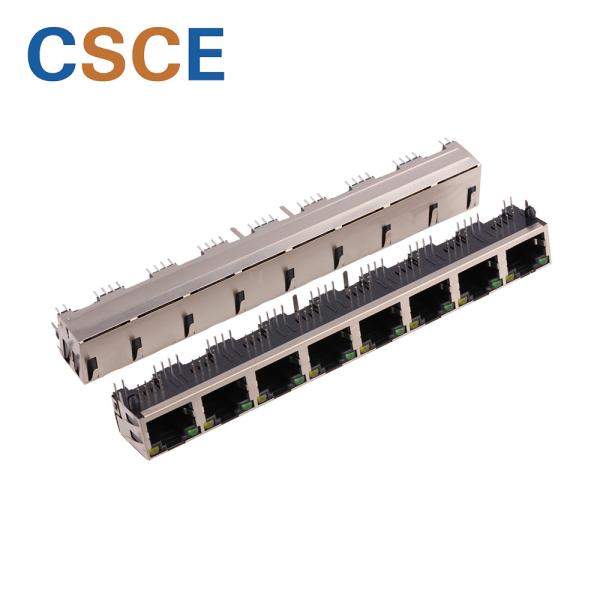

1 X 8 Ports RJ45 Female Jack , Network Connector RJ45 Insert Material UL94V-0
1 X 8 Ports RJ45 Female Jack , Network Connector RJ45 Insert Material UL94V-0
1 X 8 Ports RJ45 Female Jack , Network Connector RJ45 Insert Material UL94V-0
1 X 8 Ports RJ45 Female Jack , Network Connector RJ45 Insert Material UL94V-0
Specifications
Brand Name :
CSCE
Model Number :
56A-38881221X01
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Type :
RJ45 female jack
Gender :
Female
Material :
PBT UL94V-0
Pin :
8P8C
Operating temperature :
-40℃ to 85℃
Rated voltage :
125V
Description
network connector Shielded 1 X8 Ports Female Jack Multiple Port RJ45 Modular Jack With LEDs



Quick Details:

Specification:Modular RJ45 jackCross Part NO:56A-38881221X01
Mounting:Thru-hole R/ASamples:Available 2-3 Pcs



Product Specification:

Operating Life750 Cycles MIN.
Storage Temperature﹣40℃ to +85℃
Housing MaterialPBT/PA66/PA46
Operation Temperature﹣40℃ to +85℃
Mating/Unmating Force2.2KG.F MAX.
Contact Resistance30milliohm Max
Retention Strength7.7KG.F MIN Between Jack And Plug
Current Rating1.5A
Contact MaterialDiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
Voltage Rating125v
Insert MaterialUL94V-0
Withstand Voltage1000V AC 50Hz or 60Hz,1MIN.
Insulation Resistance500 MΩ MIN @ 500V DC.



Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers


14 Years Experience

Our company since 2005 RJ45 network connector production in the past 14 years,only focus on RJ45 network connector design and development and production and sales.


OEM Services

For high-quality, high reliability and reasonable price RJ45 network connector products,and more than the word’s top 500 OEM manufacturers recognized.


Production Ability

The company’s own injection molding, stamping and automated assembly plant, a professional automated production and testing equipment, the company has established an independent laboratory.


Main Customers

HisenseSkyworthFOXCONNJEZETEKTCLNEC
TENDAHUMAXPANASONICHUAWEICIGTwoWing



Product Drawing:

1 X 8 Ports RJ45 Female Jack , Network Connector RJ45 Insert Material UL94V-0
