Tap Up RJ45 Connector With Integrated Magnetics Operating Temperature -40℃ To +85℃
Tap Up RJ45 Connector With Integrated Magnetics Operating Temperature -40℃ To +85℃
Specifications
Brand Name :
CSCE
Model Number :
SC601
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Material :
ABS/PBT/PA66/LCP
Speed :
100 Base
Rj45 connector materials :
Thermoplastic\Copper alloy\Nicker/Gold 6 micro-inches min
Name :
RJ45 Connector With Integrated Magnetics
Gender :
Female
Insulation resistance :
500 MΩmin
Description
Tap-Up Modular Jack RJ45 With Transformer Integrated Magnetics 100Base

Product Details:

Specification: Magnetic RJ45 Jack Cross Part NO: SC601
Latch: Tab Up Samples: Available 2-3 Pcs

Product Specification:

Material Housing PA66,UL94V-0,Black
Terminals Bracket PA66,UL94V-0,Black
Turn Ratio

2-3:J1-J2=1CT:1CT(±2%)

4-5:J3-J6=1CT:1CT(±2%)
OCL 350uH Min At 100KHz 100m V 8mA DC
Insertion Loss

-20dB Min 1-10 MHz

-16dB Min 10-30MHz

-12dB Min 30-60MHz

-10dB Min 60-80MHz
Cross Talk

-40dB Min 1-30MHz

-35dB Min 30-60MHz

-30dB Min 60-100MHz
CMR -35dB Min 1-100Hz
Hi-pot 1500V AC&2250V DC
Material Shield C2680,T=0.20mm,Nickel Plating On All Area
Material Teminal

Phosphor Bronze C2510,T=0.35mm,

6u''Gold Plating On Contact Area
Mechanical Durability 750 Cycles
Mating Force 30 N Max
Operating Temperature -40℃-+85℃
Storage Temperature

-40℃-+85℃

FAQ

*Q: Can I get samples from you?

A: We are honored to offer you samples for quality check.

*Q: What parts are manufactured by you?

A: All of frame parts are manufactured by us.

*Q: What's the leading time? (How long do you need to prepare my goods?)

A: 5 days for sample orders. 15 days for mass production orders (based on different quantities)

*Q: How long do I need to wait before my goods arrive?

A: 3-5 days for international express. 5-7 days for air transportation, 15-30 days for sea transportation.

Why choose us

  1. Have a strong research and development ability for a new product
  2. Equipment and manufacturing ability for would
  3. Competitive price , and in time delivery well-selling in both domestic and foreign markets
  4. Acquired the ISO9001-2000 quality management system certification , ISO14001 environmental management system and UL certification .
  5. Specializes in the development , design , production and sale of communication network connectors .

Main Customers

Hisense Skyworth FOXCONN JEZETEK TCL NEC
TENDA HUMAX PANASONIC HUAWEI CIG TwoWing

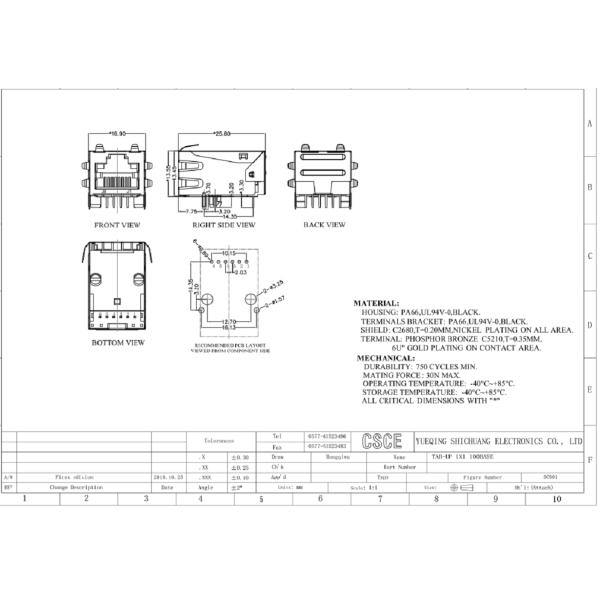

Product Drawing:

Tap Up RJ45 Connector With Integrated Magnetics Operating Temperature -40℃ To +85℃

Tap Up RJ45 Connector With Integrated Magnetics Operating Temperature -40℃ To +85℃
